Processing Procedures and Application Areas for Wafer Stencils in Semiconductor Packaging and Testing

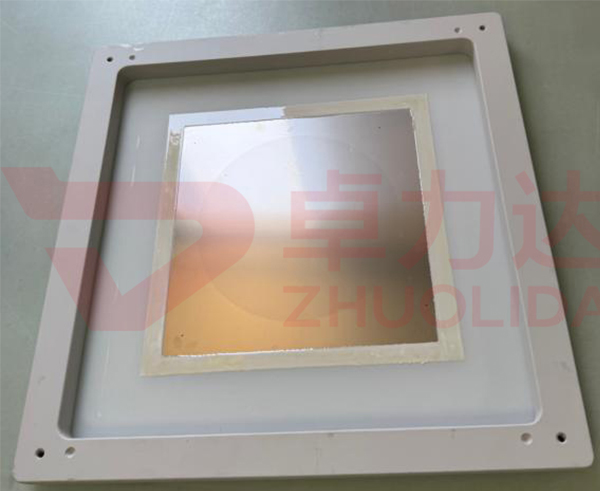

Semiconductor packaging and testing wafer stencils are core precision components in the semiconductor packaging and testing process. With high-purity nickel and copper alloys, and offer key advantages such as high pattern accuracy, excellent dimensional consistency, superior surface finish, and strong resistance to wear and corrosion. They can precisely replicate packaging and testing patterns ranging from the nanometre to the micrometre scale, directly determining the accuracy, efficiency and reliability of semiconductor packaging and testing, and serve as the vital link between chip manufacturing and end-user applications. The machining of packaging and testing wafer templates is the core process for achieving their precise formation. Through the integration of refined electroforming and etching technologies, it overcomes the processing bottlenecks associated with minute patterns and complex structures, balancing mass production with precision consistency to meet the diverse and miniaturised demands of semiconductor packaging and testing. Manufacturers specialising in the processing of semiconductor packaging and testing wafer masks have a deep understanding of the industry’s needs. They continuously optimise their process systems and quality control standards, driving the advancement of wafer mask processing towards ultra-high precision, high stability and intelligent manufacturing, thereby providing high-quality core supporting solutions for the semiconductor packaging and testing sector.

The manufacturing process for semiconductor packaging and testing wafer masks is rigorous and precise, meeting the ultra-high precision and high cleanliness requirements of the industry. centring on six key stages: raw material pre-treatment, master template preparation, pattern transfer, core forming, post-processing and precision inspection. This forms a standardised, traceable operational chain, with each process step adhering to stringent semiconductor industry standards to ensure that every template’s pattern accuracy, geometric tolerances and surface quality meet the exacting requirements of packaging and testing. Manufacturers of wafer stencils for packaging and testing exercise strict control over every stage of the manufacturing process, from raw material selection to the dispatch of finished products, establishing a comprehensive quality inspection system to prevent non-conforming products from leaving the facility. Through precise parameter control, the manufacturing of these stencils effectively resolves industry pain points such as pattern misalignment and dimensional deviations, ensuring the stable and efficient operation of packaging and testing processes.

The first step involves the selection and pre-treatment of raw materials, laying a solid foundation for the machining of wafer templates for packaging and testing. Manufacturers of packaging and testing wafer templates select high-purity metal sheets tailored to the specific requirements of semiconductor packaging and testing. They prioritise nickel and copper alloys for their wear resistance, excellent electrical conductivity and high thermal stability, whilst controlling sheet thickness tolerances to within ±0.005 mm to ensure that flatness and surface finish meet the required standards. The pre-treatment stage involves four sequential purification processes: solvent degreasing, ultrasonic cleaning, plasma activation and micro-etching passivation. Solvent degreasing removes grease and dirt from the sheet surface; ultrasonic cleaning removes microscopic impurities and oxide debris; plasma activation enhances the surface activity of the sheet, improving the adhesion of the photoresist to the substrate; micro-etching and passivation removes the surface oxide layer, forming a dense protective film to prevent corrosion, deformation and surface damage during processing. Following pre-treatment, the sheet surface must meet a cleanliness standard of Class 100 and a surface roughness of Ra ≤ 0.05 μm, thereby ensuring the success of subsequent pattern transfer and core formation. This is also the primary prerequisite for ensuring pattern accuracy in the processing of packaging and testing wafer templates.

The second step involves master template design and fabrication, which constitutes the core preliminary stage of packaging and testing wafer template processing. Manufacturers of packaging and testing wafer templates define the core parameters of the templates—including pattern dimensions, pitch, line width and aperture ratio—in accordance with semiconductor packaging and testing specifications. They then produce precise processing drawings and fabricate master templates using high-precision materials such as quartz and borosilicate glass. The master template is processed using precision photolithography and laser direct writing technologies to create the packaging and testing patterns, with exposure accuracy controlled to within ±0.002 μm. This ensures that the master template’s patterns are fully consistent with the design requirements, with clear, burr-free and distortion-free pattern edges, meeting the demands of various packaging and testing processes. Once the master mould is prepared, it undergoes a full inspection using a high-magnification electron microscope to eliminate defects such as surface scratches, blurred patterns, and dimensional deviations. The precision of semiconductor packaging and testing wafer templates depends directly on the quality of the master mould; manufacturers of these templates ensure precise templates for subsequent core forming through meticulous master mould control.

The third step is pattern transfer, which ensures the accuracy of the patterns in the processing of packaging and testing wafer templates. Within a Class 1,000 cleanroom, pre-treated metal substrates undergo photoresist coating or dry film lamination: the coating process utilises spin coating to ensure a uniform layer thickness (8–15 μm) free from bubbles and pinholes; dry film lamination employs a hot-pressing process to ensure the film adheres tightly to the substrate, eliminating gaps and the risk of delamination. The prepared master template is then precisely aligned with the coated sheet and placed in a high-precision UV exposure unit for exposure. Exposure energy and duration are precisely controlled to ensure the packaging and testing patterns on the master template are accurately transferred to the photoresist layer. Following exposure, a dedicated developer is used to dissolve the uncured photoresist, exposing the metal areas to be processed and forming clear packaging and testing pattern outlines. Following development, the wafer undergoes drying and a full inspection to ensure the pattern contours are clear, with no broken lines, residual adhesive or pattern distortion, and precision controlled to within ±0.003 μm. The packaging and testing wafer template manufacturer implements multiple quality control measures to ensure the accuracy and consistency of pattern transfer, laying the foundation for core formation.

The fourth step is core formation, which determines the final quality of the semiconductor packaging and testing wafer templates. The manufacturing process utilises a combined electroforming and etching technique, which is flexibly adjusted to meet different packaging and testing requirements: For ultra-high-precision patterns (line width ≤ 0.01 mm), a Precision Electroforming process is employed. The manufacturer uses the master template as the cathode and a high-purity metal plate as the anode, immersing them in a high-purity electrolyte. Through pulsed electroforming technology, metal ions are deposited uniformly layer by layer onto the surface of the master template’s pattern, forming a dense, smooth, and high-precision metal pattern layer; For standard-precision patterns, a precision chemical etching process is employed. A specialised corrosion-resistant etching solution is prepared, with precise control over the solution’s concentration, temperature (40–50°C) and spray pressure. The developed sheet metal is placed in an automated etching machine, where the etching solution acts uniformly on the exposed metal areas, dissolving the metal layer by layer to form the packaging and testing patterns required by the design. Progress is monitored in real time during processing, with precise control over pattern dimensions and thickness to ensure smooth, burr-free edges without side etching. Geometric tolerances comply with semiconductor packaging and testing standards. The fabrication of packaging and testing wafer templates is optimised through a composite process, effectively enhancing template stability and service life.

The fifth step involves post-processing and performance optimisation to enhance the performance of the semiconductor packaging and testing wafer templates. Once the core moulding is complete, the first step is demoulding. This involves soaking in an alkaline demoulding solution to thoroughly remove any residual photoresist and conductive layers from the surface, exposing the bare metal. This is followed by a multi-stage cleaning process, including ultrasonic cleaning with pure water and plasma purification, to completely remove residual etching solutions, electrolytes and minute impurities, ensuring that the template surface and pattern gaps are free from contaminants and blockages; Electrolytic polishing and passivation are carried out as required to enhance the surface finish of the template (Ra ≤ 0.03 μm), improve the material’s wear and corrosion resistance, and extend the template’s service life; finally, electrical conductivity testing and dimensional re-inspection are performed to ensure that every structural feature conducts smoothly and is dimensionally accurate, meeting the interface requirements of packaging and testing equipment. The processing of packaging and testing wafer stencils places great emphasis on post-processing details. Through optimisation across multiple stages, it ensures the stencils are suitable for the long-term, stable operation of semiconductor packaging and testing. Manufacturers of packaging and testing wafer stencils further enhance product quality through strict post-processing controls.

The sixth step involves comprehensive precision inspection and packaging for dispatch, which serves as the quality assurance stage in the processing of packaging and testing wafer stencils. Manufacturers of packaging and testing wafer stencils are equipped with high-precision instruments such as scanning electron microscopes, laser interferometers, coordinate measuring machines and pattern accuracy testers to comprehensively inspect parameters including pattern dimensions, hole spacing, line width, surface roughness, geometric tolerances, corrosion resistance and electrical conductivity. Every single template undergoes 100% inspection to strictly prevent non-conforming products from leaving the facility; inspection data is retained throughout the process to ensure product quality traceability. For mass-produced items, an additional sampling re-inspection stage is implemented to ensure batch consistency meets standards. Upon passing inspection, the templates are packaged using clean, anti-static materials to prevent contamination, damage or pattern deformation during storage and transport, before being dispatched from the warehouse. Through end-to-end inspection and quality control, the processing of wafer masks for packaging and testing ensures that every product meets the stringent requirements of the semiconductor packaging and testing industry.

The application of semiconductor packaging and testing wafer templates is highly concentrated within the semiconductor packaging and testing industry. Thanks to their ultra-high precision, high stability and corrosion resistance, they are deeply integrated into core processes such as chip packaging, wafer testing and advanced packaging. Compatible with a variety of packaging and testing processes including DIP, SMT, BGA and Chiplet, they have become essential components for semiconductor packaging and testing equipment. Through precise process control, the manufacturing of semiconductor packaging and testing wafer stencils adapts to the requirements of various types of packaging and testing equipment. Relying on technological innovation, manufacturers of these stencils provide customised products and solutions, helping the semiconductor packaging and testing industry to upgrade towards higher precision, greater efficiency and miniaturisation.

The chip packaging stage represents the core application scenario for semiconductor packaging and testing wafer stencils, where demands for stencil precision and stability are exceptionally high. As the central medium in the packaging process, semiconductor packaging and testing wafer stencils can precisely replicate the pins and interconnect patterns required for chip packaging, guide the uniform distribution of packaging materials, and ensure a reliable connection between the chip and the circuit board, directly determining the yield and reliability of chip packaging. The fabrication of semiconductor packaging and testing wafer stencils allows for the customisation of stencils in various sizes and patterns according to chip packaging specifications, catering to the packaging requirements of different chip models. In response to the trend towards miniaturisation in chip packaging, manufacturers of these stencils optimise process parameters to achieve the precise formation of nanometre-scale patterns, thereby facilitating the development of chip packaging towards higher density and smaller dimensions.

In the wafer testing process, semiconductor packaging and testing wafer stencils play a vital role in meeting the high-precision requirements of wafer testing. Wafer testing is a critical stage in semiconductor manufacturing, used to detect performance defects in the chips on the wafer. As a core component of the testing fixture, the semiconductor packaging and testing wafer stencil conforms precisely to the wafer surface, enabling accurate testing of chip circuits and performance parameters, thereby ensuring the wafer meets quality standards. The fabrication of semiconductor packaging and testing wafer templates can be customised to specific test requirements, with tailored patterns and dimensions to enhance testing accuracy and efficiency whilst minimising testing errors. Manufacturers of these templates strictly adhere to semiconductor testing industry standards, ensuring compatibility with various types of wafer testing equipment and guaranteeing the stability and efficiency of the testing process.

The field of advanced packaging represents a key area of expansion for semiconductor packaging and testing wafer stencils, meeting the development needs of advanced packaging technologies within the semiconductor industry. With the proliferation of advanced packaging technologies such as Chiplets, Fan-out and WLP, the demands on the precision, complexity and stability of semiconductor packaging and testing wafer templates are constantly increasing. Templates must realise the fine interconnect patterns and complex structures required for multi-chip integration, thereby supporting advanced packaging technologies in achieving high-density chip integration and performance enhancements. Through technological innovation, the processing of semiconductor packaging and testing wafer templates has overcome the processing bottlenecks associated with ultra-fine patterns and complex structures, enabling the fabrication of three-dimensional interconnect patterns and micro-pin arrays. Manufacturers of these templates are strengthening their R&D efforts to meet the differentiated demands of the advanced packaging sector, thereby driving the large-scale application of advanced packaging technologies.

In the field of specialised packaging and testing, semiconductor packaging and testing wafer templates are tailored to meet the packaging and testing requirements of high-end chips. Specialised packaging is primarily used for chips in high-end sectors such as aerospace, medical technology and automotive electronics, where the demands for precision, reliability and environmental adaptability in packaging and testing are even more stringent. Semiconductor packaging and testing wafer templates must possess high-temperature resistance, high-pressure resistance and strong corrosion resistance to ensure stable operation even in harsh environments. The manufacturing of semiconductor packaging and testing wafer templates utilises high-performance materials and precision processes to optimise the templates’ mechanical properties and environmental adaptability. Manufacturers of these templates provide customised solutions tailored to specialised packaging and testing requirements, thereby enhancing the quality of high-end chip packaging and testing.

Furthermore, semiconductor packaging and testing wafer templates are also utilised in fields such as semiconductor materials research and development and chip prototype testing. Leveraging their ultra-high precision, they provide core support for technological R&D and product iteration in these sectors. Semiconductor packaging and testing wafer templates remain firmly oriented towards the needs of the semiconductor industry, continuously overcoming technical bottlenecks, The processing of packaging and testing wafer templates is constantly evolving towards ultra-high precision, complex patterns and composite materials. Manufacturers of these templates are strengthening technical R&D and industrial collaboration to drive technological upgrades, optimise processing workflows, and enhance production efficiency and product quality. This provides core supporting infrastructure for the high-quality development of the semiconductor packaging and testing industry, helping the sector achieve domestic substitution and technological breakthroughs.
