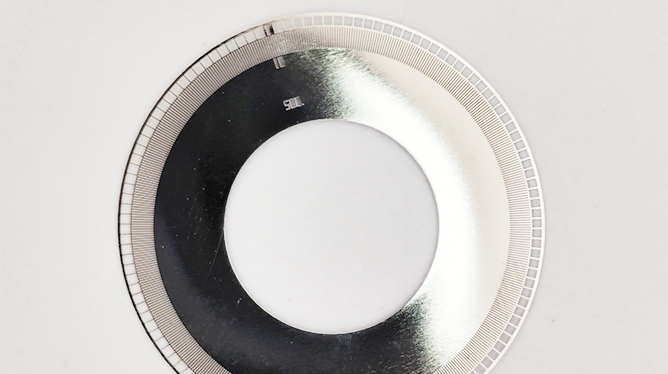

Electroforming Process for Incremental Encoder Discs and Their Applications

Electroforming for incremental encoder discs is a high-precision machining technique customised specifically for incremental encoder discs, based on the principles of electrochemical deposition. With its core advantages of precise graduations, a smooth surface and high wear resistance, it has become a key process in the manufacture of core encoder components. Thanks to its nanometre-level replication accuracy, electroforming enables the precise formation of disc graduations, meeting the requirements of incremental encoders of various specifications. Manufacturers specialising in electroforming for encoder discs have been deeply rooted in the industry for many years, continuously optimising their processing techniques to enhance product consistency and stability. They provide essential support for the precise counting and positioning of incremental encoders, serving a wide range of industrial automation applications.

The electroforming process for incremental encoder discs is rigorous and complex, with every stage directly determining the disc’s scale accuracy and performance. In line with the demand for increasingly precise and compact discs, the process can be broken down into five key steps. The first is the design and preparation of the master mould, which forms the foundation for ensuring the quality of the electroforming process. Manufacturers of electroformed encoder discs design precise scale drawings in accordance with the specifications of the incremental encoder. They fabricate master moulds from quartz or metal materials, employing laser etching and precision polishing to ensure the scales are clear and the edges are neat, with scale tolerances controlled within ±0.5 μm. This lays a solid foundation for subsequent electroforming and serves as a core prerequisite for the electroforming process.

The second step involves the pre-treatment of the master mould, the key objective of which is to ensure the surface is conductive and meets cleanliness standards, thereby preventing any adverse effects on the uniform deposition of metal ions such as nickel and copper. Manufacturers of encoder scale electroforming first use methods such as ultrasonic cleaning and alkaline degreasing to thoroughly remove oil, oxidation layers and impurities from the surface of the master mould, ensuring the surface is free of any contaminants. Subsequently, a chemical nickel plating process is employed to deposit a thin conductive metal layer on the master mould’s surface. This not only achieves the conductive treatment but also enhances the adhesion between the subsequent electroformed layer and the master mould, thereby laying a solid foundation for the smooth execution of the incremental encoder disc electroforming process. It is also a crucial step for manufacturers in improving product yield rates.

The third step is the core electroforming deposition stage, which is also the key process in the electroforming of incremental encoder discs. The electroforming manufacturer uses the pre-treated master mould as the cathode and selects pure nickel or a copper alloy as the anode. Both are immersed in a customised electrolyte solution. By precisely controlling the current density, electrolyte temperature and deposition time, metal ions are deposited uniformly layer by layer onto the surface of the master mould’s scale, forming a dense, uniform electroformed layer. During this stage of the electroforming process for incremental encoder discs, manufacturers strictly control process parameters to ensure uniform layer thickness and precise reproduction of the scale markings, free from burrs or deformation, thereby meeting the high-precision counting requirements of incremental encoders. This represents the core technological competitiveness of encoder disc Electroforming manufacturers.

The fourth step involves demoulding and post-processing, primarily aimed at achieving non-destructive separation of the disc from the master mould and optimising performance. Manufacturers of encoder disc electroforming employ thermal separation or precision mechanical demoulding techniques to separate the disc from the master mould without damaging the scale markings, achieving a yield rate of over 99%. Following demoulding, processes such as electrolytic polishing and passivation are applied to remove burrs from the disc surface, enhance surface finish, and improve the disc’s wear and corrosion resistance, thereby extending its service life. Concurrently, the disc undergoes scale calibration to ensure that the scale accuracy complies with industry standards; this is an indispensable final stage in the electroforming process for incremental encoder discs.

The fifth step is the quality inspection phase, which runs throughout the entire electroforming process for incremental encoder discs. Manufacturers utilise high-precision microscopes, laser diameter gauges and other equipment to comprehensively inspect indicators such as scale accuracy, electroformed layer thickness and surface roughness. Non-conforming products are rigorously screened out to ensure that every disc meets the operational requirements of incremental encoders. Furthermore, environmental simulation tests are conducted to verify the stability of the discs under complex conditions such as high and low temperatures and humidity, thereby further ensuring product reliability. This is also a crucial safeguard for manufacturers of encoder discs to achieve large-scale production.

Thanks to their high precision and stability, electroformed discs for incremental encoders have a wide range of applications, primarily focusing on core sectors such as industrial automation, smart manufacturing and new energy. In the field of industrial automation, code discs produced through electroforming for incremental encoders are widely used for position detection and speed measurement in equipment such as machine tools, robots and assembly lines. Thanks to their precise graduations, they enable accurate control of equipment and enhance production efficiency. Manufacturers of electroformed encoder code discs optimise their processing techniques to meet the demands of industrial applications, producing code discs suitable for incremental encoders with varying rotational speeds and precision requirements. Consequently, electroforming has become a vital pillar supporting the upgrading of industrial automation equipment.

In the field of smart manufacturing, electroformed incremental encoder discs serve as core components of smart equipment. They provide angle and speed feedback for servo motors and precision instruments, ensuring the precise operation of smart equipment. With their nanometre-level scale accuracy, electroformed encoder discs enable smart equipment to perform highly precise operations, thereby driving the advancement of smart manufacturing towards high-end applications. Manufacturers specialising in the electroforming of encoder discs leverage mature technologies to provide customised disc products for intelligent robots, intelligent testing equipment and other applications, meeting diverse operational requirements.

In the new energy sector, discs produced through the electroforming of incremental encoder discs are widely used in new energy vehicles, photovoltaic equipment and wind power equipment, serving functions such as motor speed detection and equipment positioning to ensure the stable operation of new energy equipment; In response to the high-temperature and high-vibration operating environments of new energy equipment, the electroforming process for incremental encoder discs has been optimised to enhance wear resistance and interference immunity, thereby extending the service life of the equipment. Through technological upgrades, manufacturers of electroformed encoder discs have adapted to the rapid development needs of the new energy industry, expanding the application scenarios for electroformed encoder discs.

Furthermore, electroformed incremental encoder discs are also applied in high-end sectors such as aerospace, medical devices and precision instruments. In the aerospace sector, it is used for the positioning and inspection of aircraft components, ensuring operational safety through high-precision graduations; in the medical device sector, it enables the precise control of medical equipment, contributing to the accuracy of medical diagnostics and treatments. Manufacturers of electroformed encoder discs customise products with varying specifications and precision levels to meet the demands of different high-end sectors, demonstrating the wide adaptability of this process.

Manufacturers of encoder disc electroforming consistently prioritise market demand, continually overcoming technical bottlenecks in electroforming, optimising the manufacturing processes for incremental encoder discs, and enhancing both product quality and production efficiency. In the future, as industrial automation and the smart manufacturing sector continue to evolve, the precision requirements for incremental encoder discs will rise. Consequently, the electroforming of incremental encoder discs will undergo continuous innovation and upgrading. Manufacturers specialising in this field will continue to strive to advance electroforming technology towards higher precision and more stable performance, thereby injecting new vitality into various high-end equipment industries.
