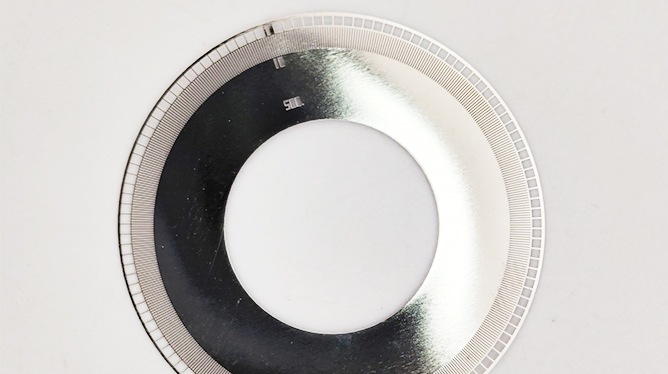

Electroforming Process for Motor Encoder Discs and Their Applications

Electroforming for motor encoder discs is a high-precision machining technique customised specifically for motor encoder discs, based on the principles of electrochemical deposition. With its core advantages of precise graduations, a smooth surface and high wear resistance, it has become a key process in the manufacture of core components for motor encoders. Thanks to its nanometre-level replication accuracy, electroforming enables the precise formation of disc graduations, meeting the requirements of motor encoders of various specifications. Manufacturers specialising in electroforming for motor encoder discs have been deeply rooted in the industry for many years, continuously optimising their processing techniques to enhance product consistency and stability. They provide essential support for the precise counting and positioning of motor encoders, serving a wide range of motor manufacturing applications.

The electroforming process for motor encoder discs is rigorous and complex, with every stage directly determining the scale accuracy and performance of the disc. In line with the demand for increasingly precise and miniaturised motor encoder discs, the process can be divided into five core steps. The first is the design and preparation of the master mould, which forms the foundation for ensuring the quality of the electroforming process. Manufacturers of electroformed motor encoder discs design precise scale drawings in accordance with the specifications of the motor encoders. They fabricate master moulds from quartz or metal materials, employing laser etching and precision polishing to ensure the scales are clear and the edges are neat. Scale tolerances are controlled within ±0.5μm, laying a solid foundation for subsequent electroforming and serving as a core prerequisite for the process.

The second step involves the pre-treatment of the master mould, the key objective of which is to ensure the surface of the master mould is conductive and meets cleanliness standards, thereby preventing any adverse effects on the uniform deposition of metal ions such as nickel and copper. Manufacturers of electroformed motor encoder discs first use methods such as ultrasonic cleaning and alkaline degreasing to thoroughly remove oil, oxidation layers and impurities from the surface of the master mould, ensuring the surface is free of any contaminants. Subsequently, a chemical nickel plating process is employed to deposit a thin conductive metal layer onto the master mould’s surface. This not only achieves the conductive treatment but also enhances the adhesion between the subsequent electroformed layer and the master mould, laying a solid foundation for the smooth execution of the motor encoder disc electroforming process. It is also a crucial step for manufacturers of motor encoder discs in improving product yield rates.

The third step is the core electroforming deposition stage, which is also the central process in the electroforming of motor encoder discs. The manufacturer uses the pre-treated master mould as the cathode and selects pure nickel or a copper alloy as the anode, immersing both in a customised electrolyte. By precisely controlling the current density, electrolyte temperature and deposition time, metal ions are deposited uniformly layer by layer onto the surface of the master mould’s scale, forming a dense, uniform electroplated layer. During this stage of the motor encoder scale electroforming process, manufacturers strictly control process parameters to ensure uniform electroformed layer thickness and precise reproduction of the scale markings, free from burrs or deformation, thereby meeting the high-precision counting requirements of motor encoders. This represents the core technological competitiveness of motor encoder scale Electroforming manufacturers.

The fourth step involves demoulding and post-processing, primarily aimed at achieving the damage-free separation of the disc from the master mould and optimising its performance. Manufacturers of motor encoder discs employ thermal separation or precision mechanical demoulding techniques to separate the disc from the master mould without damaging the scale markings, achieving a yield rate of over 99%. Following demoulding, processes such as electrolytic polishing and passivation are applied to remove burrs from the disc’s surface, enhance surface finish, and improve the disc’s wear and corrosion resistance, thereby extending its service life. Concurrently, the disc undergoes scale calibration to ensure that the scale accuracy complies with industry standards; this is an indispensable final step in the electroforming process for motor encoder discs.

The fifth step is the quality inspection phase, which runs throughout the entire electroforming process for motor encoder discs. Manufacturers of motor encoder discs utilise high-precision microscopes, laser diameter gauges and other equipment to conduct comprehensive inspections of parameters such as the scale accuracy, electroformed layer thickness and surface roughness of the discs. They rigorously screen out non-conforming products to ensure that every disc meets the operational requirements for motor encoders. Furthermore, through environmental simulation testing, the stability of the code discs under complex conditions such as high and low temperatures and humidity is verified, thereby further ensuring product reliability. This is also a crucial safeguard for motor encoder code disc electroforming manufacturers to achieve large-scale production.

Thanks to their high precision and stability, electroformed motor encoder discs find widespread application, primarily in core sectors such as motor manufacturing, industrial automation and new energy. In the field of motor manufacturing, these discs are extensively used for position detection and speed measurement in servo motors, stepper motors and asynchronous motors. Their precise graduations enable accurate motor control and enhance operational efficiency; Manufacturers of electroformed motor encoder discs optimise their processing techniques to meet the specific demands of motor manufacturing. The discs they produce are compatible with motor encoders requiring different rotational speeds and precision levels, making electroformed motor encoder discs a vital pillar of the motor industry’s modernisation.

In the field of industrial automation, electroformed motor encoder discs serve as core components of automated equipment. They provide angle and speed feedback for machine tool motors and robotic drive motors, ensuring the precise operation of automated systems. With their nanometre-level scale accuracy, these electroformed discs enable automated equipment to perform highly precise operations, driving the advancement of industrial automation towards high-end applications. Relying on mature technologies, manufacturers of electroformed motor encoder discs provide customised disc products for various types of automated motor equipment, meeting diverse operational requirements.

In the new energy sector, electroformed encoder discs are widely used in the drive motors of new energy vehicles, photovoltaic motors and wind turbines. They are employed for motor speed detection and equipment positioning, ensuring the stable operation of new energy equipment. To address the high-temperature and high-vibration operating environments of new energy motors, the electroforming process has been optimised to enhance the discs’ wear resistance and interference immunity, thereby extending the service life of the motors. Through technological upgrades, manufacturers of electroformed motor encoder discs have adapted to the rapid development of the new energy motor industry, thereby expanding the application scenarios for electroformed motor encoder discs.

Furthermore, electroformed motor encoder discs are also utilised in high-end sectors such as aerospace motors, medical device motors and precision instrument motors. In the aerospace sector, these discs are used for positioning and monitoring in aircraft motors, ensuring operational safety through high-precision graduations; in the medical device sector, they enable precise control of medical motors, contributing to the stable operation of medical equipment. Manufacturers of electroformed motor encoder discs customise products with varying specifications and precision levels to meet the demands of different high-end motor sectors, demonstrating the wide adaptability of this manufacturing process.

Manufacturers of electroformed motor encoder discs remain market-driven, continuously overcoming technical bottlenecks in electroforming, optimising production processes, and enhancing both product quality and production efficiency. In the future, as the motor industry, industrial automation and the new energy sector continue to evolve, the precision requirements for motor encoder discs will rise. Electroforming for motor encoder discs will undergo continuous innovation and upgrading, and manufacturers will redouble their efforts to drive the development of disc electroforming technology towards higher precision and more stable performance, thereby injecting new vitality into various motor equipment industries.
