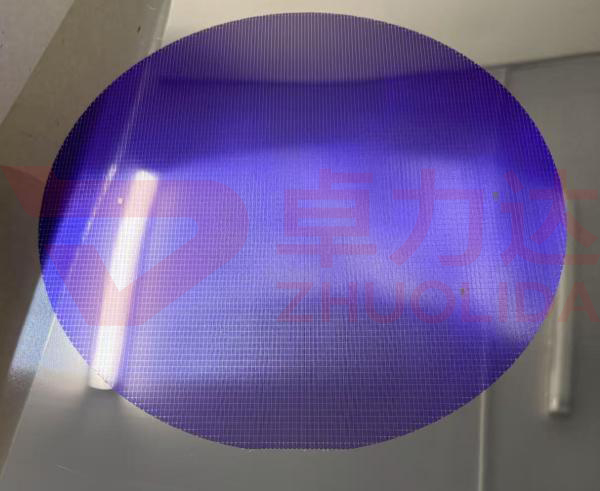

Electroforming Process for Electroformed BALL MASK Stencils

As wafer-level packaging and flip-chip ball placement technologies advance toward ultra-fine bumps, high-density arrays and automotive-grade high reliability, stencils fabricated via traditional laser cutting and chemical etching suffer from stepped hole walls, residual plate stress and inconsistent aperture sizes. During printing, such defects easily lead to solder paste adhesion, ball placement offset and wafer edge chipping, which greatly reduce chip packaging yield. Electroformed BALL MASK stencils are integrally molded by low-stress electrochemical deposition of high-purity nickel without mechanical cutting or high-temperature extrusion damage. Featuring vertical and smooth openings, uniform thickness and tiny dimensional errors of micropore arrays, they are compatible with 8-inch and 12-inch wafer ball placement production lines and serve as exclusive core precision tooling for ball placement processes in high-end packaging. Electroformed BALL MASK stencil processing adopts standardized closed-loop Class 100 constant-temperature dust-free production lines, with optimized pulse deposition parameters and micropore compensation schemes for ultra-thin specifications, high-density micropores and large-format sizes. It supports small-batch sampling for new product R&D and stable mass delivery of mature wafers. Manufacturers engaged in electroformed BALL MASK stencil Electroforming processing continuously optimize a complete process system including electroforming solution proportioning, layered deposition control and ultra-clean post-treatment, solving industrial pain points such as micropore clogging, plate warpage and precision attenuation after long-term printing, and providing stable precision supporting components for the industrial chain of advanced wafer ball placement packaging.

Made of high-purity nickel as forming substrate, electroformed BALL MASK stencils feature a standard thickness range of 0.03mm to 0.2mm. The verticality of micropores, coaxiality of positioning holes and flatness of plates directly determine the uniformity of flux coating and the precision of ball placement positions. The complete workflow of electroformed BALL MASK stencil processing consists of nine standard procedures: high-precision photolithography master mold fabrication, ultra-clean substrate activation, uniform conductive film deposition, pulsed layered nickel electroforming, long-duration low-temperature constant-temperature stress relief, flexible non-destructive demolding and separation, micropore passivation, polishing and shaping, full-dimensional multi-aspect precision dimensional inspection, and anti-static moisture-proof dust-free vacuum packaging. Throughout production, real-time regulation is conducted on current density, electroforming solution temperature and circulation filtration flow rate to precisely control the growth rhythm of nickel grains, fundamentally eliminating processing defects such as elliptical micropores, uneven plate thickness, rough inner walls and forming wrinkles. Electroformed BALL MASK stencils contain no residual internal forming stress. No aperture drift or plate slack deformation occurs after repeated wafer lamination and long-time continuous printing, making them suitable for 7脳24-hour non-stop continuous production on packaging lines. Manufacturers engaged in electroformed BALL MASK stencil electroforming processing build differentiated process databases based on three ball placement demands of memory wafers, logic chips and automotive power chips, setting three grades of processing standards including general ball placement grade, ultra-fine pitch ball placement grade and automotive high-reliability grade to guarantee highly consistent dimensions and performance of electroformed BALL MASK stencils across batches.

High-precision master mold fabrication and ultra-clean pretreatment are core pre-processes that guarantee forming accuracy in electroformed BALL MASK stencil processing. All ball placement micropores, peripheral positioning reference holes and wafer clearance windows of stencils are replicated from high-precision negative master molds. Tiny dimensional errors on master molds will be directly transmitted to finished stencils and cause overall offset of ball placement positions on the whole wafer. Exclusive master molds are designed according to wafer layouts and bump pitch parameters before formal production. Micro-nano photolithography and precision grinding shaping are adopted to eliminate hidden risks such as hole dislocation and distorted window edges. Master molds are fabricated from special substrates with low thermal expansion and ultra-high flatness, which go through multi-stage degreasing, circulating ultrapure water rinsing and plasma activation purification to thoroughly remove surface dust, oil stains and oxide films and ensure complete, uniform and non-peeling adhesion of conductive films. Micron-level dimensional compensation is preset for ultra-high-density micro-opening areas to offset dimensional loss caused by minor lateral erosion during electroforming. Relying on high-precision master mold replication technology, electroformed BALL MASK stencils stably achieve micron-level array tolerances and meet the zero-defect production standards of high-end wafer ball placement. Manufacturers engaged in electroformed BALL MASK stencil electroforming processing refine specifications for regular re-inspection, cleaning and maintenance of master molds to reduce the defective rate of mass products at the source.

Pulsed layered electroforming deposition is the core forming link of electroformed BALL MASK stencil processing. Pre-treated master molds are transported to closed ultra-clean workstations for uniform coating of dense conductive substrates to prevent process defects such as local deposition fracture and incomplete micropores. The master molds are placed in semiconductor-specific low-stress electroforming tanks equipped with high-precision pulse current control systems, and nickel deposition and molding are completed in layered intermittent modes. The layered deposition mode continuously releases internal stress generated during forming. The finished electroformed BALL MASK stencils have smooth and flat surfaces, with smooth, step- and burr-free micropore inner walls that require no secondary hole polishing. The whole forming process involves no mechanical extrusion or high-temperature thermal damage, leaving no latent stress inside finished products, which will not deform after long-term high-frequency wafer printing and exposure to high-low temperature cycles. Manufacturers engaged in electroformed BALL MASK stencil electroforming processing keep upgrading the circulation and filtration system of electroforming solution to reduce micropore blockage induced by attached fine metal particles and effectively extend the service life of electroformed BALL MASK stencils.

Stress relief, non-destructive demolding and dust-free post-treatment directly affect the long-term service stability of finished products from electroformed BALL MASK stencil processing. After electroforming deposition reaches the preset thickness standard, semi-finished products are sent to low-temperature constant-temperature chambers for long-term stress elimination treatment, which greatly improves the tensile and deformation resistance of stencils and avoids precision deviation induced by ambient temperature differences and continuous equipment vibration. Flexible media are adopted to separate stencils from master molds gently, preventing micropore stretching, plate wrinkles and damage caused by forced pulling. Post-demolding procedures include multi-stage ultrapure water cleaning, micropore dredging and anti-oxidation passivation. The thin and uniform passivation film will not block micropore channels while resisting corrosion by acid-base mist in packaging workshops. All finished products undergo full-item inspection via optical measuring instruments, thickness testers and flatness testers. Defective products are sorted and scrapped uniformly, and qualified products are vacuum packaged and stored in Class 100 dust-free environments. After multi-layer cleaning treatment, electroformed BALL MASK stencils release no metal impurities and will not scratch wafer surfaces or contaminate metal pads of chips. Manufacturers engaged in electroformed BALL MASK stencil electroforming processing implement a piece-by-piece full-inspection control mechanism to strictly manage all precision indicators before delivery.

In terms of industrial application, electroformed BALL MASK stencils feature three core strengths: high precision, low stress and high cleanliness. They are widely applied to three mainstream packaging scenarios: ball placement of memory wafers, ball placement of micro-pitch logic chips and ball placement of automotive power chips. Electroformed BALL MASK stencil processing can customize exclusive micropore array structures according to different wafer sizes and bump pitches, satisfying the demands of sample processing for new product R&D and mass supporting production of mature wafers. Manufacturers engaged in electroformed BALL MASK stencil electroforming processing adjust post-treatment process parameters based on the temperature, humidity and cleanliness conditions of various packaging production lines to fit long-term operation requirements of all types of high-end wafer packaging workshops.

For memory wafer ball placement scenarios, electroformed BALL MASK stencils deliver excellent consistency of micropore arrays with fully filled flux and clean demolding, drastically cutting packaging defects such as bump height difference, missing balls and solder bridging. Electroformed BALL MASK stencil processing imposes strict control over the vertical angle of hole walls to reduce residual solder paste adhesion. Manufacturers engaged in electroformed BALL MASK stencil electroforming processing optimize the inner wall polishing process of micropores to meet the mass production demands of ball placement for high-density memory wafers.

For micro-pitch logic chip ball placement scenarios, electroformed BALL MASK stencils adopt ultra-thin thickness to fit ultra-narrow dicing streets and micro bump layout, with integrally formed micropores free of interference to stably complete ball placement operations for ultra-fine pitch chips. Electroformed BALL MASK stencil processing adopts fully enclosed dust-free production to eliminate dust contamination of precise chip circuits. Manufacturers engaged in electroformed BALL MASK stencil electroforming processing impose tight control over overall thickness tolerances to satisfy high-precision ball placement standards for micro logic chips.

For automotive power chip ball placement scenarios, electroformed BALL MASK stencils own low-stress stable structures that can withstand long-term high-frequency printing on production lines with constant coaxiality of positioning holes. Electroformed BALL MASK stencil processing thickens the passivation protective layer to resist corrosion by various volatile chemicals in workshops. Manufacturers engaged in electroformed BALL MASK stencil electroforming processing strengthen the plate flattening process to comply with high-reliability packaging production specifications for automotive-grade chips.

In conclusion, electroformed BALL MASK stencils thoroughly break through the industrial drawbacks of traditional ball placement stencils including insufficient precision, easy deformation and rough hole walls, acting as indispensable precision tooling for modern wafer-level ball placement packaging. Relying on standardized dust-free, constant-temperature and low-stress electroforming processes, electroformed BALL MASK stencil processing realizes stable mass production and delivery of high-precision ball placement stencils. Manufacturers engaged in electroformed BALL MASK stencil electroforming processing continuously conduct in-depth research on semiconductor-dedicated core electroforming technologies, keep optimizing micropore forming and dust-free cleaning processes, and provide reliable precision supporting solutions for the high-quality development of high-end wafer ball placement packaging industries covering memory, logic and automotive chips.
