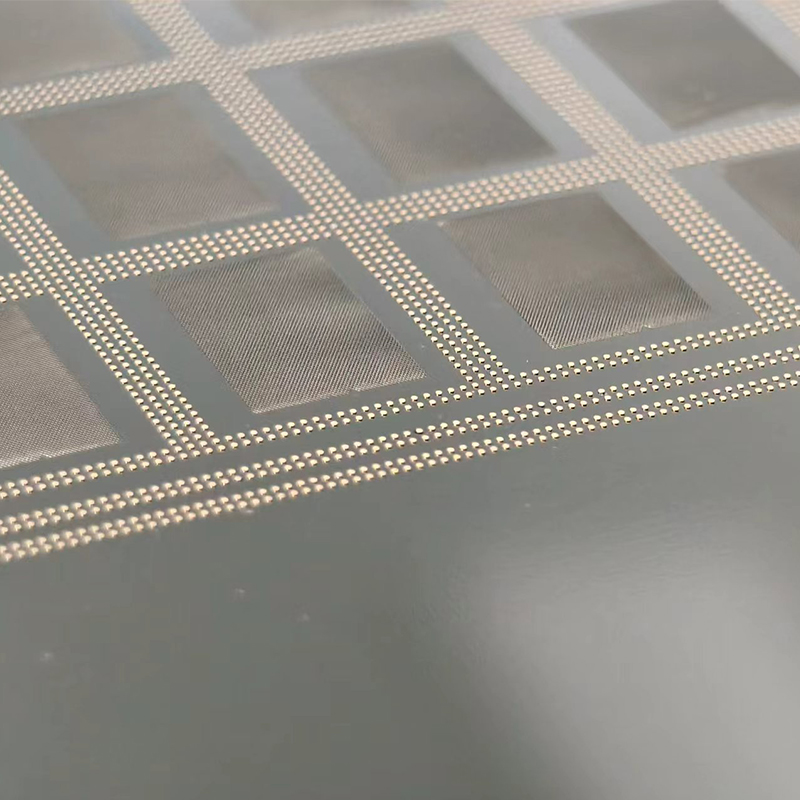

Electroforming Process with a Tolerance of ±0.005 mm and Its Applications

Electroforming with a tolerance of ±0.005 mm is a high-end manufacturing technology that utilises the principles of electrochemical deposition to achieve ultra-high-precision forming. With its core advantages of stringent tolerance control of ±0.005 mm, a dense and defect-free structure, and the absence of mechanical stress damage, it has become a key supporting process in fields such as high-end precision manufacturing and micro-device production. Tolerance ±0.005mm electroforming processing is the core method for achieving tolerance ±0.005mm electroforming. By finely controlling parameters throughout the entire electroforming process, metal ions are deposited layer by layer to form high-precision structures that meet tolerance requirements, satisfying the stringent demands of various industries for ultra-precision components. Manufacturers specialising in ±0.005 mm electroforming have dedicated themselves to the field of ultra-high-Precision Electroforming, focusing on the precise control of dimensional accuracy and process iteration. They are driving the development of ±0.005 mm electroforming towards greater stability, efficiency and refinement, thereby providing core technological support for the ultra-precision manufacturing industry.

The ±0.005mm electroforming process is rigorous and exacting, with every stage directly determining whether the product can meet the ±0.005mm tolerance requirement. In line with the core demands of ultra-high-precision machining, the process can be divided into five key steps. The first is the design and preparation of the master mould, which forms the foundation for ensuring the quality of ±0.005mm electroforming. Manufacturers specialising in electroforming with a tolerance of ±0.005mm design precise master model drawings based on the customer’s requirements for the dimensions and tolerances of ultra-precise structures. They fabricate the master model using materials such as quartz, ultra-high-precision resin or special metals, and employ processes such as laser etching and nanoscale polishing to ensure the master model’s surface is flat and smooth, with clear structural contours. Dimensional tolerances are strictly controlled within ±0.002 mm, laying a solid foundation for subsequent electroforming deposition and serving as a key prerequisite for achieving ultra-high-precision forming with a tolerance of ±0.005 mm.

The second step involves pre-treatment of the master mould, the key objective of which is to ensure the surface of the master mould is conductive and meets cleanliness standards, thereby preventing minute impurities or uneven conductivity from affecting the deposition of metal ions, and consequently guaranteeing the machining accuracy required for electroforming with a tolerance of ±0.005 mm. Electroforming manufacturers working to a tolerance of ±0.005 mm first employ high-precision cleaning methods, such as plasma cleaning and ultra-clean ultrasonic cleaning, to thoroughly remove oil, oxide layers and minute impurities from the surface of the master mould. This ensures the surface is free of any contaminants, thereby preventing any adverse effects on the adhesion and forming accuracy of the electroformed layer. Subsequently, vacuum sputtering or electroless nickel plating processes are employed to deposit an ultra-thin, uniform and dense conductive metal layer onto the surface of the original mould. The thickness tolerance of this conductive layer is strictly controlled, laying a solid foundation for the smooth execution of electroforming with a tolerance of ±0.005 mm, and serving as a crucial step in enhancing product yield rates.

The third step is the core electroforming deposition stage, which is also the central process of electroforming with a tolerance of ±0.005 mm. The focus here is on controlling deposition accuracy and tolerance stability. Manufacturers specialising in electroforming with a tolerance of ±0.005 mm use the pre-treated master mould as the cathode and select suitable metals such as pure nickel or copper alloys as the anode. Both are immersed in a customised, ultra-high-precision electrolyte. Through a closed-loop control system, core parameters such as current density, electrolyte temperature and deposition time are precisely controlled, enabling metal ions to deposit uniformly layer by layer onto the surface of the master mould, forming a dense electroformed layer. During this stage of the ±0.005 mm tolerance electroforming process, the deposition process must be monitored throughout. A low current density and slow deposition rate are employed to reduce internal stresses within the electroformed layer, ensuring uniform thickness, a regular structure, and the absence of burrs or deformation. Dimensional tolerances are strictly controlled within ±0.005 mm, which constitutes the core technological competitiveness of manufacturers specialising in ±0.005 mm tolerance electroforming.

The fourth step involves demoulding and post-processing, primarily aimed at achieving the non-destructive separation of the ±0.005 mm tolerance electroformed product from the original mould and optimising its performance, whilst ensuring that dimensional accuracy is not compromised. Electroforming manufacturers operating within a tolerance of ±0.005 mm employ gentle methods such as thermal separation and low-force mechanical demoulding to achieve non-destructive separation of the electroformed part from the original mould without damaging the ultra-precise structure or affecting dimensional tolerances, achieving a yield rate of over 99%. Following demoulding, high-precision post-processing techniques such as nano-level electrolytic polishing and passivation are applied to remove minute burrs from the product surface, enhance surface finish, improve wear and corrosion resistance, and extend service life. Concurrently, high-precision measuring equipment is utilised to precisely calibrate the dimensions and tolerances of electroformed products with a tolerance of ±0.005 mm, ensuring that every item strictly complies with the ±0.005 mm tolerance requirement. This constitutes an indispensable final step in the electroforming process with a tolerance of ±0.005 mm.

The fifth step is the quality inspection stage, which runs throughout the entire electroforming process with a tolerance of ±0.005 mm and is key to ensuring the product’s dimensional accuracy. Manufacturers specialising in electroforming with a tolerance of ±0.005 mm utilise high-precision equipment such as laser interferometers, scanning electron microscopes and coordinate measuring machines to comprehensively inspect the dimensional accuracy, tolerance range, surface roughness and density of the electroformed layer of products with a tolerance of ±0.005 mm, rigorously screening out non-conforming items. Particular emphasis is placed on inspecting the replication accuracy and dimensional tolerance consistency of ultra-precise structures, ensuring that every product meets the customer’s requirements for a ±0.005mm tolerance. This is also a crucial safeguard for achieving large-scale production of electroforming with a ±0.005mm tolerance.

Leveraging its exceptional tolerance precision of ±0.005 mm, electroforming with a tolerance of ±0.005 mm is primarily applied in high-end ultra-precision manufacturing sectors, deeply integrating into multiple high-end industries such as microelectronics, precision instruments, aerospace, biopharmaceuticals and other high-end sectors. This electroforming process specialises in the forming of ultra-precise structures, with manufacturers offering customised solutions to support the production of ultra-precise components across various industries.

The microelectronics sector represents the core application area for ±0.005mm tolerance electroforming, aligning with the trends towards miniaturisation and high-density integration in electronic devices. Ultra-precision components produced through electroforming with a tolerance of ±0.005 mm are widely used in products such as micro-connectors, chip packaging pins, semiconductor probes and micro-sensors. With a tolerance precision of ±0.005 mm, they ensure the precise fitting of electronic components and stable signal transmission. Electroforming with a tolerance of ±0.005 mm enables the ultra-high-precision forming of minute structures, meeting the demands for precision and high consistency in micro-electronic components. Manufacturers specialising in electroforming with a tolerance of ±0.005 mm also meet the iterative upgrade requirements of the electronics industry through their high-quality products.

In the field of precision instruments, electroforming with a tolerance of ±0.005mm plays a crucial role. Core components produced via this process are widely used in precision instruments, laser equipment and high-precision measuring instruments. With a tolerance of ±0.005mm and high stability, they significantly enhance the detection accuracy and operational reliability of these instruments. Electroforming with a tolerance of ±0.005mm can replicate complex ultra-precise structures, precisely meeting the miniaturisation and ultra-high precision requirements of precision instruments. Manufacturers of electroformed parts with a tolerance of ±0.005mm ensure dimensional stability in complex environments by optimising process parameters, thereby providing reliable support to the precision instrument industry.

In the biomedical sector, electroforming with a tolerance of ±0.005 mm is widely used in products such as micro-surgical instruments, biosensors and microfluidic chips, thanks to its characteristics of being burr-free, impurity-free and highly precise. This enables the ultra-precise forming of medical components, ensuring the safety and compatibility of medical equipment. Electroforming with a tolerance of ±0.005 mm strictly adheres to hygiene standards in the medical industry, implementing ultra-cleanroom controls during production to ensure products meet the requirements of the biomedical sector. Manufacturers specialising in this process customise electroformed products to meet the specific needs of the medical sector, thereby supporting the biomedical industry’s advancement towards precision medicine.

In the aerospace sector, the requirements for dimensional accuracy and reliability of micro-components are extremely high. Products manufactured using electroforming with a tolerance of ±0.005 mm are widely used in micro-components for aircraft engines, ultra-precision structural parts for satellite navigation, and core components of aerospace instruments. With a tolerance of ±0.005 mm and excellent mechanical properties, they ensure the operational safety of aerospace equipment. Electroforming with a tolerance of ±0.005 mm enables the ultra-high-precision forming of complex micro-structures, meeting the demands for lightweight and miniaturised aerospace equipment. Manufacturers specialising in electroforming with a tolerance of ±0.005 mm strictly adhere to aerospace industry standards and optimise their process systems to meet tolerance stability requirements under extreme operating conditions.

Furthermore, electroforming with a tolerance of ±0.005 mm is also applied in high-end sectors such as new energy and optical components, featuring in products including ultra-precision electrodes for new energy batteries, ultra-precision structures for optical gratings, and ultra-precision moulds. Electroforming with a tolerance of ±0.005 mm remains market-driven, continuously overcoming technical bottlenecks, optimising processing workflows, and enhancing product quality and production efficiency. In the future, as the ultra-precision manufacturing industry continues to evolve, electroforming with a tolerance of ±0.005 mm will achieve breakthroughs in more emerging fields. Manufacturers specialising in this process will continue to strive to advance the technology towards higher precision and more complex structures, thereby injecting new vitality into various high-end ultra-precision equipment industries.
