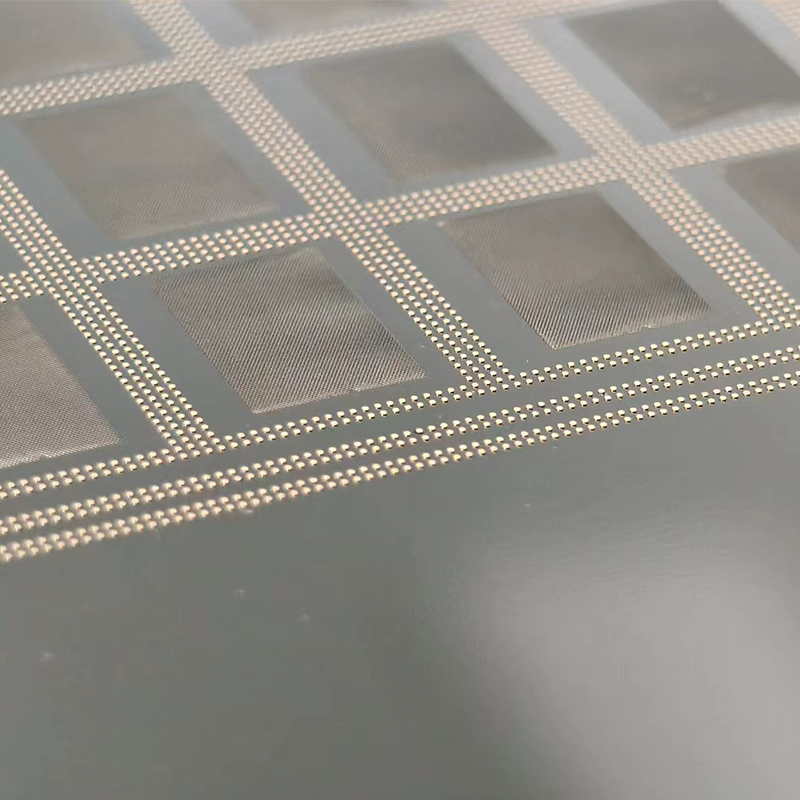

Electroforming Processes and Applications in Mianyang

Electroforming in Mianyang is a high-precision manufacturing technology based on the principles of electrochemical deposition. With its core advantages of high replication accuracy, flexible structural shaping and the absence of mechanical stress, it aligns with Mianyang’s industrial positioning as the ‘Electronics City of the West’ and has become a key process underpinning the upgrading of local high-end industries such as electronics and information technology, and aerospace. As a high-end sub-sector of Mianyang electroforming, Precision Electroforming in Mianyang specialises in the manufacture of micron-level precision structures, meeting the stringent requirements of industries such as new display technologies and nuclear technology applications in Mianyang. Mianyang Electroforming manufacturers, with years of deep industry experience, leverage the region’s comprehensive industrial support and innovation resources to continuously optimise process systems, driving the upgrading of Mianyang electroforming towards greater refinement, standardisation and intelligence.

The Mianyang electroforming process is rigorous and standardised, with every stage directly determining product precision and performance. Aligned with the specific requirements of Mianyang’s high-end manufacturing sector, the core process comprises five key stages. Mianyang precision electroforming further enhances precision control within this framework, whilst Mianyang electroforming manufacturers strictly adhere to standardised operations throughout the entire process.

The first step involves master mould preparation and pre-treatment, which forms the fundamental prerequisite for Mianyang electroforming. Based on product design drawings and in line with the requirements of sectors such as electronics and aerospace in Mianyang, manufacturers utilise CNC machining or 3D printing technology to produce master moulds. Materials may be either metallic or non-metallic; metallic master moulds must be polished to a mirror finish, whilst non-metallic master moulds require prior conductive treatment. During the pre-treatment stage, processes such as ultrasonic cleaning, degreasing and rust removal are employed to thoroughly eliminate oil, oxidation layers and impurities from the master model’s surface, ensuring a clean, flawless surface and providing a stable foundation for subsequent electroforming deposition. Mianyang precision electroforming places even stricter demands on master model accuracy, with geometric tolerances required to be controlled within 5μm to meet the processing requirements of high-end components.

The second step involves the conductivisation process, which creates the necessary conditions for electroforming. In Mianyang electroforming, non-metallic master moulds must be treated with chemical silver plating, vacuum coating or graphite coating to form a uniform and dense conductive layer; metal master moulds, on the other hand, must undergo passivation and be coated with a release agent to prevent the subsequent electroformed layer from adhering. Mianyang electroforming manufacturers strictly control the thickness and uniformity of the conductive layer to avoid defects during the subsequent deposition process that could affect product quality. In this stage, Mianyang precision electroforming utilises a vacuum sputtering process to further enhance the density of the conductive layer, strengthen the adhesion between the electroformed layer and the master mould, and ensure the accuracy of the replication of precision structures.

The third step is the core electroforming deposition stage, which is also a critical process in Mianyang electroforming. The pre-treated master is used as the cathode, whilst a suitable metal material is selected as the anode; both are immersed in a specialised electroforming solution. Under the influence of direct current, metal ions are uniformly deposited onto the surface of the master, gradually forming an electroformed part that meets the design requirements. Mianyang electroforming manufacturers precisely control core parameters such as current density, electrolyte temperature and deposition time to ensure the deposited layer thickness is accurate to within ±2 μm, thereby guaranteeing dimensional consistency of the product. Mianyang precision electroforming employs a process involving low current density and extended deposition times, effectively reducing internal stresses within the electroformed layer. This ensures the product’s hardness and uniformity, meeting the high-end requirements of sectors such as aerospace and precision instrumentation in Mianyang.

The fourth step involves demoulding and post-processing, with a focus on optimising product performance and precision. Once the electroformed layer reaches the designed thickness, Mianyang electroforming manufacturers employ methods such as thermal separation, precision mechanical demoulding or chemical dissolution to achieve non-destructive separation of the electroformed part from the original mould, thereby avoiding damage to the product structure. Following demoulding, processes such as electrolytic polishing and passivation are employed to remove surface burrs and enhance surface finish to Ra 0.1 μm, whilst simultaneously performing precise dimensional calibration to ensure compliance with industry standards. Mianyang precision electroforming manufacturers incorporate additional nano-level surface treatment processes to further enhance the product’s wear resistance and corrosion resistance, extending its service life and adapting it to complex operational requirements.

The fifth step is the quality inspection phase, which runs throughout the entire Mianyang electroforming process and is key to ensuring product quality. Mianyang electroforming manufacturers utilise professional equipment such as high-precision microscopes, coordinate measuring machines and laser diameter gauges to comprehensively inspect indicators including dimensional accuracy, surface roughness and metal layer density, rigorously screening out non-conforming products. Building on this foundation, Mianyang Precision Electroforming further incorporates environmental simulation tests, including high and low temperature and corrosion testing, to verify product stability under extreme conditions. This ensures that every product meets the requirements of Mianyang’s high-end industries, serving as a vital safeguard for manufacturers to achieve large-scale production.

Leveraging the advantages of high precision and high reproducibility, Mianyang electroforming has a wide range of applications and is deeply integrated into Mianyang’s distinctive industries, such as electronics and information technology, aerospace, nuclear medicine, and precision moulds. Mianyang Precision Electroforming focuses on high-end applications, whilst Mianyang electroforming manufacturers provide customised solutions, offering core support for local industrial upgrading.

The electronics and information technology sector is the core application area for Mianyang electroforming, aligning with the development needs of Mianyang’s 200-billion-yuan electronics and information technology industrial cluster. Mianyang electroforming is utilised in the manufacture of moulds for smartphone camera modules, new display components, semiconductor probes, micro-connectors and other products. Mianyang precision electroforming enables the precise formation of 0.1mm micro-holes and ultra-fine circuits, meeting the processing requirements of new display products such as Mini/Micro LEDs. Mianyang electroforming manufacturers, leveraging local industrial support systems, provide core component support for the miniaturisation and high-performance development of the electronics industry.

The aerospace sector imposes stringent requirements for precision and stability, where Mianyang electroforming plays a vital role. Mianyang electroforming is utilised in the manufacture of components for aircraft engines, lightweight structural parts for satellites, and core components for aerospace instruments. By offering the advantages of no mechanical damage and high dimensional accuracy, it ensures the operational safety of aerospace equipment. Mianyang precision electroforming strictly controls product dimensional tolerances to guarantee stability under extreme operating conditions. Manufacturers adhere to aerospace industry standards, optimise process parameters, and adapt to complex high-temperature and high-pressure working environments, thereby contributing to the high-quality development of Mianyang’s aerospace industry.

The nuclear medicine sector is a key industry in Mianyang, and Mianyang’s electroforming processes are precisely tailored to meet the industry’s requirements. Mianyang electroforming is utilised in the manufacture of components for nuclear medical equipment, biosensors, and moulds for drug purification. Thanks to its burr-free and impurity-free characteristics, it ensures the safety of medical products. Mianyang’s precision electroforming enables the fine-tuning of medical components, meeting the high-precision requirements of nuclear medical equipment. Mianyang electroforming manufacturers adhere to healthcare standards and implement clean production controls, thereby supporting the development of Mianyang’s nuclear medical and healthcare industry base.

Furthermore, Mianyang electroforming is also applied in fields such as precision moulds, new energy and magnetic materials, serving to manufacture products including optical lens blanks, new energy battery electrode moulds and magnetic components. Mianyang’s precision electroforming continues to expand its application boundaries to meet the development needs of Mianyang’s emerging display and magnetic materials industries. Mianyang electroforming manufacturers are committed to continuous technological innovation, optimising electroforming processes to enhance production efficiency and product quality. In the future, as Mianyang’s high-end manufacturing sector continues to upgrade, electroforming in Mianyang will continue to overcome technical bottlenecks. Precision electroforming in Mianyang will evolve towards higher precision and more complex structures, whilst local electroforming manufacturers will further play a supporting role in driving the industry towards higher-quality development, thereby injecting new vitality into the local real economy.
