Process and Practice of Semiconductor SampleBased Custom Wafer Templates for Packaging and Testing

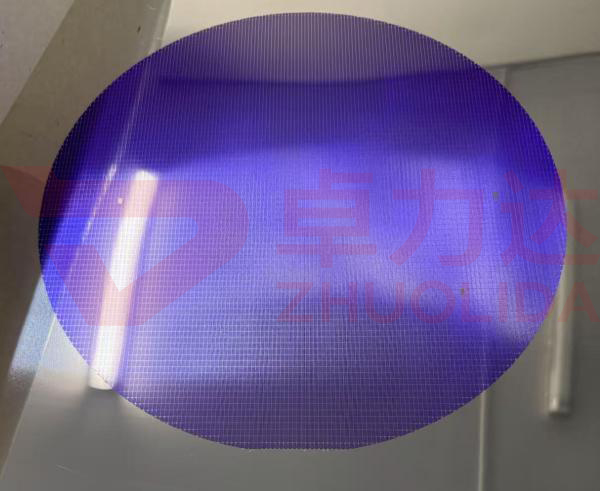

With accelerating iteration of semiconductor chips, a large number of innovative devices, experimental wafers and nonstandard layouts keep emerging. Standard wafer templates cannot satisfy printing requirements for R&D prototypes and smallbatch specialwafer packaging and testing. Adopting customer physical wafers or layout files as input, the samplebased customization mode develops targeted tooling, and effectively solves toolingmatching challenges brought by specialshaped arrays, special dimensions and nonstandard pad layouts. Restricted by fixed patterns, conventional generalpurpose templates tend to produce aperture misalignment and uneven solder volume, resulting in repeated prototype revisions and extended chipverification cycles. The semiconductor samplebased custom wafer template for packaging and testing adopts monolithic nickelcobalt alloy pulse electroforming. Free from stress induced by mechanical cutting, it performs pattern reproduction and compensation according to physical samples. Featuring high aperture accuracy and smooth aperture walls, it meets process requirements of ball placement, solderpaste printing and flux coating for various nonstandard wafers, and acts as key precision tooling for semiconductor R&D and smallbatch packaging and testing. Semiconductor samplebased custom wafer template processing for packaging and testing includes multiple procedures: sample analysis, layout comparison, LDI laser direct imaging, mastermold pretreatment, alloy pulse electroforming deposition, stressrelief annealing, tension calibration and setting, mirror polishing of aperture walls, dustfree cleaning and passivation, and micronlevel comprehensive inspection. Parameters shall be adjusted according to sample characteristics in each step. Semiconductor samplebased custom wafer template manufacturers for packaging and testing leverage sampleanalysis capabilities to complete the full workflow from physical samples to finished templates, shorten toolingdevelopment cycles for nonstandard wafers, and support R&D validation of diversified chips.

In sampledriven customization, physical wafers may suffer from layout deviation and processinduced deformation. Direct replication of theoretical drawings by templates will cause alignment deviation with physical wafer pads and trigger printing defects. Standardized semiconductor samplebased custom wafer template processing for packaging and testing first conducts pattern analysis on customerprovided physical wafers, compares physical arrays with design layouts, identifies actual deformation and offset of samples, and implements differentiated pattern compensation to offset electroforming sideetching effects, ensuring precise matching between template microapertures and wafer pads of samples. During electroforming deposition, pulse current, electrolyte temperature and circulation flow rate are precisely controlled for uniform layerbylayer growth of nickelcobalt alloy and eliminate hidden risks of latestage deformation caused by uneven grain distribution. Stressrelief annealing releases residual internal stress of templates to prevent thermalinduced plate warpage and tension drift during printing, and adapt to actual printing conditions of sample wafers. The semiconductor samplebased custom wafer template for packaging and testing is compatible with wafers of diverse dimensions, specialshaped arrays and revised prototypes, covering multiple scenarios such as WLP fanout packaging, TSV 3D stacking and specialpurpose MEMS chips. Semiconductor samplebased custom wafer template manufacturers for packaging and testing build dedicated process databases for sample analysis according to deformation features of different samples to reduce defect rates of incomplete apertures and local overetching. Semiconductor samplebased custom wafer template manufacturers for packaging and testing continuously optimize imaging and electroforming parameters to guarantee high consistency between reproduced patterns and physical samples.

Electroforming deposition and aperturewall treatment constitute core segments of semiconductor samplebased custom wafer template processing for packaging and testing, directly determining solderpaste release performance and service life of templates. Generalpurpose templates fabricated by conventional subtractive processes have rough aperture walls. Faced with specialarray layouts of nonstandard sample wafers, solder paste tends to adhere and cause frequent aperture clogging. Repeated cleaning and wiping may damage precious experimental sample wafers and raise prototypedevelopment costs. The semiconductor samplebased custom wafer template for packaging and testing adopts monolithic electroforming without splicing gaps. Its aperture tolerance reaches ±1~2 μm and aperturewall roughness Ra≤0.6 μm. Smooth vertical innerwalls enable easy solderpaste demolding and greatly reduce packaging defects such as solder dragging, solder beads and bridging. It is a stressfree coldforming process free from mechanical extrusion or cutting damage. Finished templates maintain stable plate tension of 3845 N/cm and avoid aperture collapse and plate offset after multiple printing cycles. Nanocoating can be applied for ultrafineaperture zones of sample wafers to reduce solderpaste adhesion, lower cleaning frequency and protect precious prototype wafers. Semiconductor samplebased custom wafer template processing for packaging and testing realizes forming of specialshaped microaperture arrays unachievable by conventional standardized workflows and removes tooling bottlenecks for packaging and testing of nonstandard sample wafers. Semiconductor samplebased custom wafer template manufacturers for packaging and testing upgrade solution filtrationcirculation systems to reduce microaperture defects induced by particle impurities. Semiconductor samplebased custom wafer template manufacturers for packaging and testing iterate dynamic processcompensation algorithms to further improve dimensional consistency of reproduced arrays.

Dustfree postprocessing and comprehensive inspection form a critical closedloop for semiconductor samplebased custom wafer template processing for packaging and testing and stable R&D validation of sample wafers. Electroformed semifinished products are demolded in highcleanliness environments. Multistage circulating ultrapurewater cleaning thoroughly removes residual electrolyte and fine metal debris to avoid scratches on surface circuits of sample wafers caused by falling particles. Surfaceprotection treatments are performed according to practical productionline conditions of sample wafers to enhance wearresistance and corrosionresistance for repeated debuggingprinting in R&D lines. In final inspection, besides conventional verification of aperture dimension, position, tension and flatness, alignment recheck shall be conducted referring to customer sample patterns to screen microdefects including damaged microapertures, pattern offset and local deformation. All workflows are completed in semiconductorgrade cleanrooms to avoid secondary dust contamination and guarantee reliable performance of each custommade template. Semiconductor samplebased custom wafer template processing for packaging and testing strictly complies with semiconductor cleanliness specifications for stringent prototypemanufacturing conditions. Semiconductor samplebased custom wafer template manufacturers for packaging and testing enforce fullinspection and batchtraceability mechanisms to strictly control outgoing quality of custom templates. Semiconductor samplebased custom wafer template manufacturers for packaging and testing continuously optimize dustfree postprocessing to raise template cleanliness grades and durability.

Benefiting from physicalsample reproduction, high precision and low stress, the semiconductor samplebased custom wafer template for packaging and testing is widely deployed for packaging and testing of newtype power devices, R&Dversion MEMS sensors, revisedprototype RF chips and experimental heterogeneousintegration wafers. At the chipR&D stage, rapidly matched templates are provided for revisedprototype wafers to lower prototype scrap rates. For specialpurpose devices, it adapts to printing of nonstandardarray wafers and guarantees authenticity of experimental data. Semiconductor samplebased custom wafer template processing for packaging and testing supports both smallbatch prototype sampling and subsequent smallscale massproduction. Iterative adjustments can be completed according to sample wafers and printer parameters to match fast trialanderror rhythms of chip R&D. Confronted with deviations between layouts and physical samples, semiconductor samplebased custom wafer template manufacturers for packaging and testing apply DFM (Design for Manufacturability) analysis to identify foreseeable process risks induced by physical samples in advance and cut time loss from repeated revisions. Semiconductor samplebased custom wafer template manufacturers for packaging and testing keep pace with iteration of semiconductor R&D and continuously expand application boundaries of samplebased custom templates.

To sum up, semiconductor R&D iteration generates numerous nonstandard, revised and experimental wafers, and standard templates can no longer satisfy diversified validation requirements. Leveraging electroforming and physicalsampleanalysis advantages, the semiconductor samplebased custom wafer template for packaging and testing acts as indispensable precision tooling for R&Doriented packaging and testing. Mature semiconductor samplebased custom wafer templateprocessingforpackagingandtesting systems deliver highprecision, highcleanliness templates wellmatched with physical samples, reduce prototype scrap in R&D and shorten chipverification cycles. Semiconductor samplebased custom wafer template manufacturers for packaging and testing supply highperformance custom wafer templates from dustfree precision production lines. Semiconductor samplebased custom wafer template manufacturers for packaging and testing delve into semiconductor Precision Electroforming, refine full workflows covering sample analysis, pattern transfer, electroforming and cleanliness inspection, and deliver solid process guarantees for development of domestic R&Doriented semiconductor packagingandtesting industries.
