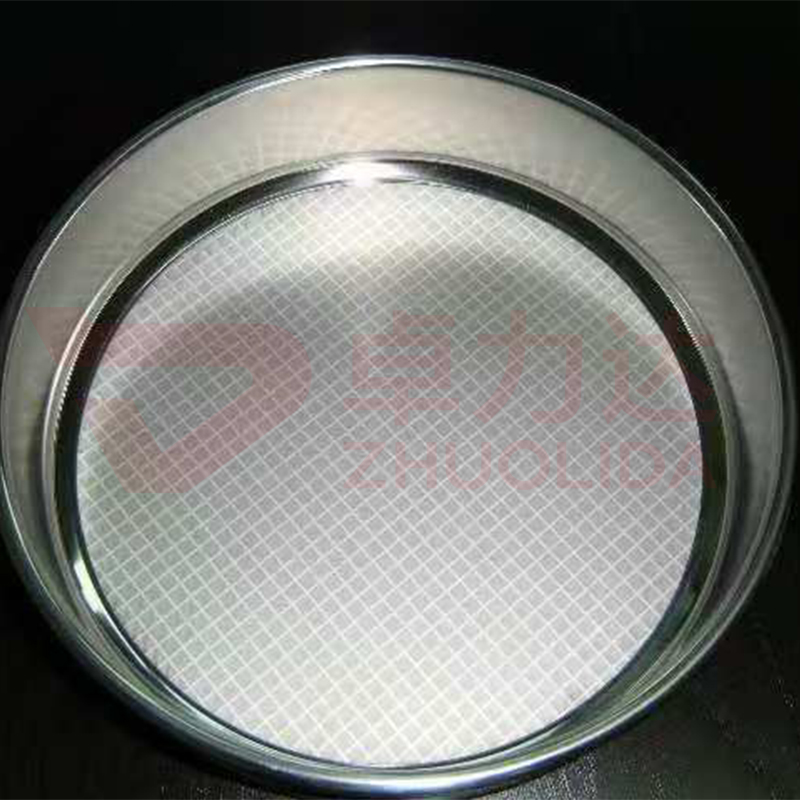

Laboratory Electroformed Screen Mesh Manufacturing Process and Applications

Laboratory electroformed screens are precision sieving components manufactured using electrochemical deposition principles. Designed specifically for laboratory research and small-batch testing applications, they are made primarily of high-purity nickel and copper. These screens offer key advantages such as uniform mesh distribution, precise pore sizes, high cleanliness, and compact dimensions. They enable the stable production of sub-micron to micron-scale microporous arrays, meeting the specialized needs of laboratory applications such as precision filtration, sample separation, and micro-sieving. The fabrication of laboratory electroformed screens is a critical process for achieving precise screen formation. By precisely controlling electroforming parameters and strictly maintaining cleanliness standards, manufacturers balance small-batch customization with precision control to meet the stringent requirements of laboratory research and testing. Manufacturers of laboratory electroformed sieves have deeply studied the specific needs of laboratory environments, optimized small-batch processing techniques and precision control systems, and driven the evolution of laboratory electroformed sieve manufacturing toward customization, precision, and cleanliness. This enables them to provide tailored precision sieving solutions for various types of laboratories.

The laboratory electroformed screen mesh manufacturing process is rigorous and meticulous, tailored to the core requirements of small-batch production, high precision, and high cleanliness. It centers on five key stages: master mold customization, conductive surface treatment, electroforming deposition, post-demolding processing, and precision inspection, forming a standardized and traceable small-batch production chain. Manufacturers of laboratory electroformed sieve mesh strictly adhere to laboratory-grade clean production standards. Building on this foundation, they reinforce control over micro-pore precision and cleanliness to ensure that every product’s mesh aperture size, pore spacing, and cleanliness meet laboratory research and testing requirements, catering to the diverse scientific needs of different laboratories.

The first step involves master mold customization and pretreatment, laying the foundation for laboratory electroformed mesh processing. Manufacturers customize master molds tailored to specific laboratory research needs, specifying the mesh aperture size (0.05–50 μm), aperture spacing, open area ratio, and mesh sheet dimensions. Clean materials such as quartz and glass are selected for master mold fabrication. The master mold undergoes precision photolithography and laser etching to create the micro-pore pattern, with exposure accuracy controlled within ±0.003 μm to ensure the master mold’s mesh openings perfectly match laboratory requirements. During the pretreatment stage, ultrasonic cleaning and plasma purification are used to thoroughly remove impurities and contaminants from the master mold’s surface, ensuring its cleanliness meets laboratory-grade standards. Laboratory electroformed screen mesh processing imposes even stricter requirements on master mold precision and cleanliness. Each master mold undergoes 100% inspection under a high-power microscope to eliminate surface scratches, mesh deformation, and residual impurities, providing a clean and precise foundation for subsequent electroforming.

The second step involves the electrification of the master mold and the preparation of the electrolyte solution to ensure the forming quality of the laboratory electroformed screen mesh. Manufacturers of laboratory electroformed screen mesh perform a clean electrification process on non-metallic master molds, using a vacuum sputtering process to deposit an ultra-thin conductive layer (0.5–1 μm thick). This ensures the conductive layer is uniform and dense while preventing the introduction of impurities, thereby maintaining the cleanliness of the laboratory electroformed screen mesh. Subsequently, a specialized high-purity electrolyte is prepared using raw materials such as high-purity nickel aminosulfonate and copper sulfate. The purity of the electrolyte and impurity content are strictly controlled, while ion concentration, pH, and temperature are precisely regulated. Specialized additives are added to refine grain size and reduce internal stress, ensuring a uniform and clean electroformed layer. This is also the core factor by which manufacturers of laboratory electroformed screens ensure product suitability for laboratory environments, preventing impurities from affecting laboratory test results.

The third step is the core electroforming process, which is a critical stage in the fabrication of laboratory electroformed screens. The manufacturer of laboratory electroformed screens places the pretreated master mold as the cathode and a high-purity metal plate as the anode into a clean electroforming tank. Using pulse electroforming technology, the process precisely controls a low current density (0.5–2 A/dm²) and a constant temperature (40–50°C) environment, enabling metal ions to deposit uniformly layer by layer on the surface of the master mold’s microporous pattern. The entire electroforming process takes place in a cleanroom, with real-time monitoring of deposition progress. Deposition time is adjusted according to the required thickness of the laboratory electroformed screen mesh to ensure uniform thickness of the electroformed layer, as well as clear mesh aperture contours free of burrs and residual impurities. The processing of laboratory electroformed screens employs precise parameter control to reduce internal stress in the electroformed layer, ensuring mesh aperture tolerances are maintained within ±0.005 mm and that the aperture walls are smooth and clean, fully demonstrating the manufacturer’s expertise in precision processing.

The fourth step involves demolding and post-cleaning treatments to optimize the performance of the laboratory electroformed mesh. Once the electroplated layer reaches the designed thickness, the manufacturer employs a gentle demolding process: metal master molds are separated without damage by utilizing thermal expansion differences caused by temperature variations, while non-metallic master molds are demolded using an environmentally friendly chemical dissolution method. This ensures the laboratory electroformed mesh remains intact, free from damage, and uncontaminated by impurities. After demolding, the screens undergo multiple cleaning processes, including ultrasonic cleaning with pure water and plasma purification, to thoroughly remove residual electrolyte and microscopic impurities, ensuring the screens meet laboratory cleanliness standards. Electrolytic polishing and passivation treatments are performed as needed to enhance pore wall smoothness and corrosion resistance, thereby extending the screens’ service life. An additional clean packaging process is incorporated into the manufacturing of laboratory electroformed screens to prevent contamination during storage and transportation, thereby meeting the cleanliness requirements for laboratory research and testing.

The fifth step involves precision inspection and calibration, which is integrated throughout the entire laboratory electroformed mesh manufacturing process. Manufacturers of laboratory electroformed mesh are equipped with high-precision testing equipment, including scanning electron microscopes, laser aperture testers, and cleanliness analyzers, to comprehensively inspect parameters such as pore size, pore spacing, open area ratio, surface roughness, and cleanliness. Every product undergoes 100% inspection to strictly prevent non-conforming items from leaving the facility. The processing of laboratory electroformed mesh focuses on testing micro-pore precision and cleanliness; high-magnification electron microscopy is used to verify that pore walls are free of cracks and impurities, ensuring the products meet the stringent standards of laboratory research and testing. Strict control in this phase is a key guarantee for manufacturers to achieve small-batch, precision production, and it is also a core prerequisite for the suitability of laboratory electroformed mesh in research scenarios.

The application of laboratory electroformed mesh is concentrated in various research laboratories. Leveraging its advantages of high precision, high cleanliness, and customization, it is deeply integrated into biological, chemical, materials, and environmental testing laboratories, serving as a core auxiliary component for scientific research and testing. Through meticulous process control, the manufacturing of laboratory electroformed mesh meets the laboratory’s needs for small batches and multiple specifications. Relying on technological innovation, manufacturers provide customized products to support the efficient conduct of laboratory research.

Biological laboratories represent the primary application scenario for laboratory electroformed mesh, where requirements for sieving precision and cleanliness are extremely high. Laboratory electroformed mesh is widely used in biological sample filtration, cell separation, nucleic acid purification, and microbial screening. For example, laboratory electroformed mesh used for cell separation can precisely separate cells of different sizes, preventing cross-contamination and ensuring the accuracy of experimental results; nucleic acid purification mesh can trap impurities, enhance nucleic acid purity, and lay the foundation for subsequent experiments. The manufacturing of laboratory electroformed mesh employs biocompatible processes to ensure the mesh is free of impurities and non-toxic, meeting biological laboratory standards. Manufacturers strictly control the production environment to ensure the products meet the requirements of biological experiments.

In the field of chemical laboratories, laboratory electroformed mesh plays a vital role, meeting the precise filtration and separation needs of chemical experiments. Laboratory electroformed mesh is used for chemical reagent filtration, separation of reaction products, and removal of trace impurities. For example, laboratory electroformed mesh used for chemical reagent filtration can precisely trap minute impurities in reagents, ensuring reagent purity and preventing impurities from affecting the outcome of chemical reactions; reaction product separation mesh can separate reaction products of different particle sizes, aiding in experimental analysis and improving data accuracy. The manufacturing of laboratory electroformed mesh screens allows for customization of materials and pore sizes based on the characteristics of chemical reagents, thereby enhancing filtration efficiency. Manufacturers of laboratory electroformed mesh screens continuously optimize their processes to meet the diverse needs of chemical laboratories.

In materials laboratories, laboratory electroformed screens are used for experiments such as particle size classification, membrane filtration, and materials characterization. For example, laboratory electroformed screens used for particle size classification can precisely separate material particles of different sizes, aiding in the study of material properties; membrane filtration screens can be used for the precision filtration of material membranes, ensuring membrane purity and performance. The manufacturing process for laboratory electroformed screens can produce sub-micron pores, meeting the needs of detailed research in materials laboratories and enhancing the accuracy of experimental data. Manufacturers of laboratory electroformed screens offer customized services in various specifications through process optimization to suit different materials testing scenarios.

In the field of environmental testing laboratories, laboratory electroformed screens are used for environmental sample filtration and pollutant detection. For example, in water quality testing, these screens can precisely filter out minute suspended particles and pollutants in water, providing pure samples for analysis; screens for atmospheric pollutant detection can intercept fine particulate matter in the air, aiding in the analysis of pollutant composition. Laboratory electroformed mesh manufacturers can customize pore sizes to meet specific testing requirements, thereby enhancing detection accuracy. These manufacturers strictly control product quality to ensure the mesh meets the stringent demands of environmental testing laboratories.

Additionally, laboratory electroformed mesh is used in medical laboratories and food testing laboratories for sample pretreatment and micro-sieving. Leveraging its high precision and high cleanliness, it improves experimental efficiency and data accuracy. Laboratory electroformed sieves are consistently guided by the needs of scientific research, continuously overcoming technical challenges. The manufacturing of these sieves is evolving toward greater precision, higher cleanliness, and greater customization. Manufacturers are strengthening R&D efforts to drive technological upgrades, providing superior precision sieving support for various research laboratories.
