Manufacturing Process and Applications of Electroformed Grating Plates

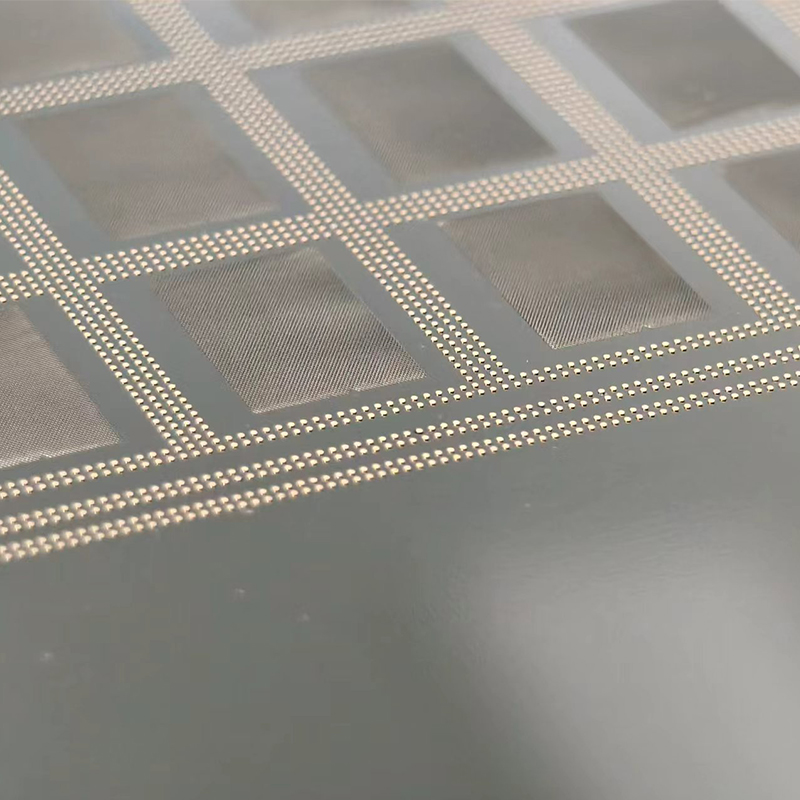

Electroformed grating plates are high-precision optical components manufactured using the principles of electrochemical deposition. Thanks to their core advantages of precise graduations, smooth surfaces and excellent diffraction performance, they have become key components in fields such as optical instruments, optical communications and display equipment. The processing of electroformed grating plates is a highly specialised and demanding precision manufacturing process. By precisely controlling electroforming parameters, it achieves nanometre-level replication of grating scales, meeting the high-end requirements for diffraction and spectral separation in various optical applications. Electroformed grating plate manufacturers specialise in the research, development and processing of optical-grade electroformed grating plates. Drawing on mature process expertise and stringent quality control, they provide high-quality electroformed grating plate products to various industries, supporting the optical sector’s transition towards higher precision and miniaturisation.

The electroformed grating fabrication process is rigorous and complex, with every stage directly determining the optical performance and precision of the grating. Aligned with the core requirements of optical components, the process can be divided into five key steps. The first is the design and preparation of the master mould, which forms the foundation for ensuring the quality of the electroformed grating. Electroformed grating manufacturers design precise structural drawings based on clients’ requirements for grating period, line width and diffraction efficiency. Master templates are fabricated from quartz or high-precision metal materials, and processes such as laser etching and precision polishing are employed to ensure the grating lines are clear and the edges are regular, with a period tolerance controlled within ±0.1 μm. This lays a solid foundation for subsequent electroforming and is a key prerequisite for achieving the excellent optical performance of electroformed grating plates.

The second step involves the pre-treatment of the master mould, the key objective of which is to ensure the surface of the master mould is conductive and meets cleanliness standards, thereby preventing any adverse effects on the uniform deposition of metal ions and guaranteeing the optical precision of the electroformed grating plates. Manufacturers of electroformed grating plates first use methods such as ultrasonic cleaning and plasma cleaning to thoroughly remove oil, oxide layers and impurities from the surface of the master mould, ensuring the surface is free of any contaminants and preventing any impact on the replication accuracy of the grating scales. Subsequently, a chemical nickel plating process is employed to deposit a thin conductive metal layer onto the master mould’s surface. This not only achieves the conductive treatment but also enhances the adhesion between the subsequent electroformed layer and the master mould, laying a solid foundation for the smooth progression of electroformed grating plate processing. It is also a crucial step in improving product yield rates.

The third step is the core electroforming deposition stage, which is also the central process in the manufacture of electroformed grating plates. The electroformed grating manufacturer uses the pre-treated master mould as the cathode and selects suitable metals such as pure nickel or copper alloys as the anode. Both are immersed in a customised electrolyte solution. By precisely controlling the current density, electrolyte temperature and deposition time, metal ions are deposited uniformly layer by layer onto the surface of the master mould’s grating scales, forming a dense and uniform electroformed layer. During this stage, strict control of process parameters is essential to ensure uniform thickness of the electroformed layer, precise replication of the grating scale, and the absence of burrs or deformation. The diffraction efficiency must meet standards to satisfy the requirements of various optical applications; this represents the core technological competitiveness of electroformed grating plate manufacturers.

The fourth step involves demoulding and post-processing, primarily aimed at achieving the damage-free separation of the electroformed grating from the master mould and optimising its optical performance. Electroformed grating manufacturers employ thermal peeling or precision mechanical demoulding techniques to separate the grating from the master mould without damaging the grating lines or compromising optical performance, achieving a yield rate of over 99%. Following demoulding, processes such as electrolytic polishing and passivation are employed to remove burrs from the grating surface, enhance surface finish, and improve the grating’s wear and corrosion resistance, thereby extending its service life. Concurrently, the grating’s period and line width are precisely calibrated to ensure its diffraction performance meets industry standards; this constitutes an indispensable final stage in the electroformed grating manufacturing process.

The fifth step is the quality inspection stage, which runs throughout the entire electroformed grating plate manufacturing process and is key to ensuring the product’s optical performance. Electroformed grating plate manufacturers utilise high-precision equipment such as laser diffractometers, microscopes and coordinate measuring machines to comprehensively inspect parameters including the grating period, line width, surface roughness and diffraction efficiency. Non-conforming products are rigorously screened out to ensure that every electroformed grating plate meets the customer’s optical requirements. Furthermore, through environmental simulation tests involving high and low temperatures and humidity, the optical stability of the gratings in complex environments is verified, further ensuring product reliability. This is also a crucial safeguard for electroformed grating manufacturers to achieve large-scale production.

Owing to their high precision and high diffraction efficiency, electroformed grating plates find widespread application and are deeply integrated into numerous high-end industries, including optical instruments, optical communications, display equipment and biomedicine. In the field of optical instruments, electroformed grating plates are extensively used in equipment such as spectrometers, spectrophotometers and laser collimators. Through their precise diffraction performance, they enable the spectral separation, dispersion and collimation of light, thereby enhancing the detection accuracy of the instruments; The processing of electroformed grating plates is tailored to the requirements of optical instruments, with optimised manufacturing processes ensuring the production of high-precision grating plates suitable for light of different wavelengths; manufacturers of electroformed grating plates have also gained market recognition through their high-quality products.

In the field of optical communications, electroformed grating plates serve as core components in optical splitters and isolators. With their excellent diffraction and spectral separation capabilities, they enable the precise distribution and transmission of optical signals, thereby enhancing the transmission efficiency and stability of optical communication systems; In response to the demands of the optical communications industry, the manufacturing of electroformed grating plates involves optimising grating structures to produce micro-sized plates that meet the miniaturisation requirements of optical communication equipment, thereby supporting the industry’s development towards higher speeds and smaller form factors. Furthermore, electroformed grating plates are utilised as core components in fibre optic sensors, enhancing the detection sensitivity of these devices.

In the field of display equipment, electroformed grating plates are widely used in LCD displays, OLED displays and projection equipment. Acting as light-guiding and light-splitting components, they control the direction of light propagation, thereby improving the clarity and brightness of the displayed image. To meet the rapid iteration demands of the display industry, the processing of electroformed grating plates has optimised manufacturing processes to enable mass production, satisfying the requirements for large-scale manufacturing of display equipment. Through technological upgrades, electroformed grating plate manufacturers produce high-resolution grating plates that facilitate the transition of display devices towards higher definition and lighter weight.

In the biopharmaceutical sector, electroformed grating plates are widely used in biosensors and medical diagnostic instruments, amongst other applications, due to their high-precision grating structures. They are employed for the spectral detection and analysis of biological samples, and their excellent diffraction properties enhance the accuracy and sensitivity of testing. The manufacturing of electroformed grating plates strictly adheres to medical industry standards, with stringent cleanroom controls implemented throughout the production process to ensure the plates meet the specific requirements of the biopharmaceutical sector. Manufacturers of electroformed grating plates tailor their production to meet the specific needs of the biomedical sector, producing specialised grating plates that support the industry’s advancement towards precision detection.

Furthermore, electroformed gratings are also utilised in sectors such as aerospace, laser processing and precision measurement, finding application in aerospace optical instruments, laser cutting equipment and precision measuring instruments. With their high precision and stable optical performance, they meet the operational requirements of high-end equipment. The processing of electroformed gratings remains market-driven, continuously overcoming technical bottlenecks in electroforming, optimising manufacturing processes, and enhancing product quality and production efficiency. In the future, as the optical industry continues to evolve, electroformed grating plates will achieve breakthroughs in more emerging fields. Manufacturers of electroformed grating plates will also continue to strive to advance processing technologies towards higher precision and superior optical performance, thereby injecting new vitality into various optical equipment industries.
