Processing Procedures and Applications of Precision Electroformed Nickel Mesh

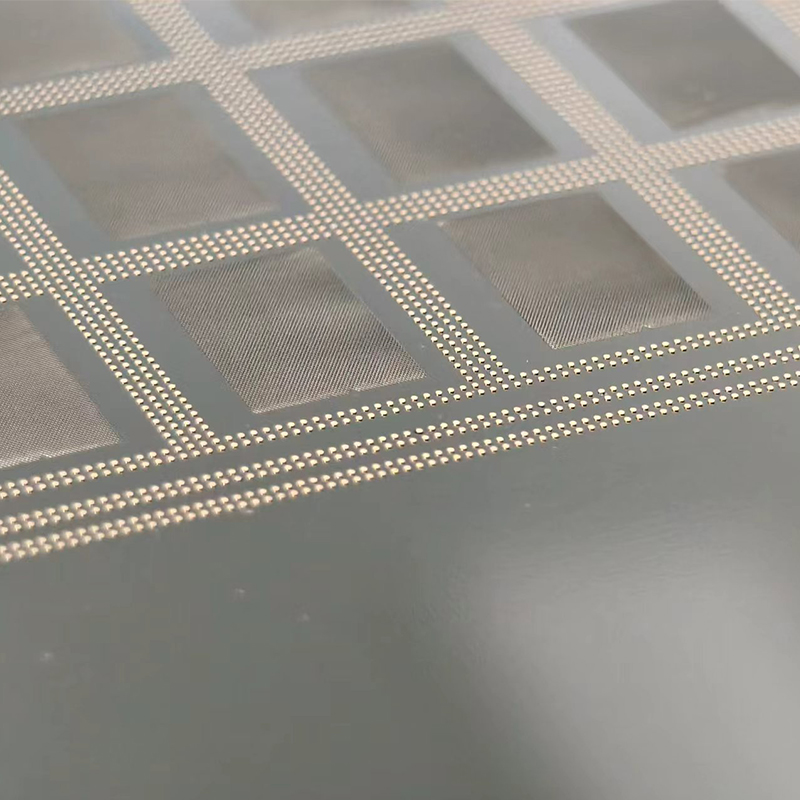

Precision electroformed nickel mesh is a high-precision mesh product manufactured using the principles of electrochemical deposition. Thanks to its core advantages—uniform pore size, smooth pore walls, high corrosion resistance and exceptional dimensional accuracy—it is widely used across numerous high-end manufacturing sectors. The processing of precision electroformed nickel mesh is a specialised, highly refined and standardised manufacturing process. By precisely controlling electroforming parameters, it achieves nanoscale replication of the mesh structure, meeting the high-end requirements of various industries for precision filtration and protection. Manufacturers of precision electroformed nickel mesh have been deeply rooted in the industry for many years, continuously optimising processing techniques to enhance product consistency and stability. They are driving the development of precision electroformed nickel mesh towards greater refinement and customisation, providing core support for the high-end manufacturing sector.

The processing workflow for precision electroformed nickel mesh is rigorous and standardised, with every stage directly determining the product’s precision and performance. Aligned with the core requirements of precision manufacturing, the process can be divided into five key steps. The first is the design and preparation of the master mould, which forms the foundation for ensuring the quality of the precision electroformed nickel mesh. Manufacturers of precision electroformed nickel mesh design precise mesh structure drawings based on customer requirements. They fabricate master moulds using materials such as quartz, stainless steel or resin. Through processes such as laser etching and precision polishing, they ensure the master mould surface is flat and the mesh aperture contours are clear, with aperture tolerances controlled to within ±0.5μm. This lays a solid foundation for subsequent electroforming and is a key prerequisite for achieving high precision in the finished product.

The second step involves the pre-treatment of the master mould, the core of which is to ensure the surface of the master mould is conductive and meets cleanliness standards, thereby preventing any adverse effects on the uniform deposition of nickel ions and safeguarding the machining precision of the precision electroformed nickel mesh. Manufacturers of precision electroformed nickel mesh first use methods such as ultrasonic cleaning and alkaline degreasing to thoroughly remove oil, oxide layers and impurities from the surface of the master mould, ensuring the surface is free of any contaminants. Subsequently, a chemical nickel plating process is employed to deposit a thin conductive metal layer onto the master mould’s surface. This not only achieves the conductive treatment but also enhances the adhesion between the subsequent electroformed layer and the master mould, laying a solid foundation for the smooth production of precision electroformed nickel mesh and serving as a crucial step in improving product yield rates.

The third step is the core electroforming process, which is also the key stage in the manufacture of precision electroformed nickel mesh. Manufacturers of precision electroformed nickel mesh use the pre-treated master mould as the cathode and a pure nickel plate as the anode, immersing both in a customised electrolyte solution primarily composed of nickel ammonium sulphate. By precisely controlling the current density, electrolyte temperature and deposition time, nickel ions are deposited uniformly layer by layer onto the surface of the master mould, forming a dense, uniform nickel mesh structure. During this stage, manufacturers of precision electroformed nickel mesh must strictly control process parameters to ensure uniform deposit thickness and regular mesh apertures, free from burrs and deformation, thereby meeting the requirements for precision mesh structures across various sectors. This represents the core technological competitiveness of such manufacturers.

The fourth step involves demoulding and post-processing, primarily aimed at achieving the damage-free separation of the precision electroformed nickel mesh from the master mould and optimising its performance. Manufacturers employ thermal separation or precision mechanical demoulding techniques to separate the nickel mesh from the master mould without damaging the mesh structure or compromising the precision of the mesh apertures, achieving a yield rate of over 99%. Following demoulding, processes such as electrolytic polishing and passivation are employed to remove burrs from the surface of the nickel mesh, enhance surface finish, improve wear and corrosion resistance, and extend service life. Simultaneously, the mesh aperture and spacing are precisely calibrated to ensure compliance with industry standards; this is an indispensable final stage in the processing of precision electroformed nickel mesh.

The fifth step is the quality inspection phase, which runs throughout the entire precision electroformed nickel mesh manufacturing process and is key to ensuring product accuracy. Precision electroformed nickel mesh manufacturers utilise high-precision microscopes, laser diameter gauges, coordinate measuring machines and other equipment to comprehensively inspect parameters such as pore diameter, mesh thickness, pore spacing and surface roughness. Non-conforming products are rigorously screened out to ensure that every item meets the customer’s precise requirements. Furthermore, environmental simulation tests are conducted to verify the stability of the nickel mesh under complex conditions such as high and low temperatures, humidity and corrosion, thereby further ensuring product reliability. This is also a crucial safeguard for manufacturers of precision electroformed nickel mesh to achieve large-scale production.

Owing to their high precision and stability, precision electroformed nickel meshes have a wide range of applications and are deeply integrated into high-end manufacturing sectors such as electronics, new energy, biomedicine and precision filtration. In the electronics sector, precision electroformed nickel meshes are widely used for filtration and protection in electronic displays, sensors and micro-connectors. Thanks to their uniform mesh structure, they enable precise filtration and signal transmission, thereby enhancing the stability of electronic equipment; To meet the electronics industry’s demands for miniaturisation and high precision, the processing of precision electroformed nickel mesh has been optimised. The ultra-fine pore nickel mesh produced is tailored to the requirements of micro-electronic components, and manufacturers of precision electroformed nickel mesh have gained market recognition through their high-quality products.

In the field of precision filtration, precision electroformed nickel mesh serves as a core filtration component. With its high-pressure resistance, corrosion resistance and high filtration precision, it is widely used in petrochemicals, water treatment, air purification and food processing, enabling the precise filtration of minute impurities and enhancing filtration efficiency and product purity; Manufacturers of precision electroformed nickel mesh customise mesh with varying pore sizes and thicknesses to suit different filtration scenarios, catering to a wide range of industrial and domestic filtration needs, thereby further expanding the application scope of precision electroformed nickel mesh.

In the new energy sector, products manufactured from precision electroformed nickel mesh are widely used in new energy batteries, photovoltaic equipment and wind power equipment. They serve purposes such as battery electrode filtration and the protection of photovoltaic modules, ensuring the stable operation of new energy equipment. To address the high-temperature and high-vibration operating environments of new energy equipment, the electroforming process for precision nickel mesh has been optimised to enhance its wear resistance and interference resistance, thereby extending the service life of the equipment. Through technological upgrades, manufacturers of precision electroformed nickel mesh are adapting to the rapid development of the new energy industry, thereby promoting the widespread application of precision electroformed nickel mesh in this sector.

In the biopharmaceutical sector, precision electroformed nickel mesh, with its burr-free, impurity-free and sterile characteristics, is widely used in scenarios such as biological sample filtration, medical device protection and drug purification, ensuring the safety and accuracy of biopharmaceutical products; The processing of precision electroformed nickel mesh strictly adheres to industry hygiene standards, with sterile control measures implemented throughout the production process to ensure the products meet the requirements of the biopharmaceutical sector. Manufacturers of precision electroformed nickel mesh customise sterile-grade precision electroformed nickel mesh to meet the specific needs of the biopharmaceutical sector, thereby supporting the industry’s move towards precision-oriented development.

Furthermore, precision electroformed nickel mesh is also utilised in high-end sectors such as aerospace, optical components and precision instruments, serving applications including filtration of aviation components, substrates for optical filters and instrument protection. With its high-precision mesh structure, it meets the operational requirements of high-end equipment. The processing of precision electroformed nickel mesh remains market-driven, continuously overcoming technical bottlenecks in electroforming, optimising production processes and enhancing both product quality and production efficiency. In the future, as high-end manufacturing continues to upgrade, precision electroformed nickel mesh will achieve breakthroughs in more emerging fields. Manufacturers of precision electroformed nickel mesh will also continue to strive to drive the development of processing technologies towards higher precision, greater environmental sustainability and greater intelligence, thereby injecting new vitality into various high-end equipment industries.
