Manufacturing Processes and Applications of Precision Electroforming Manufacturers

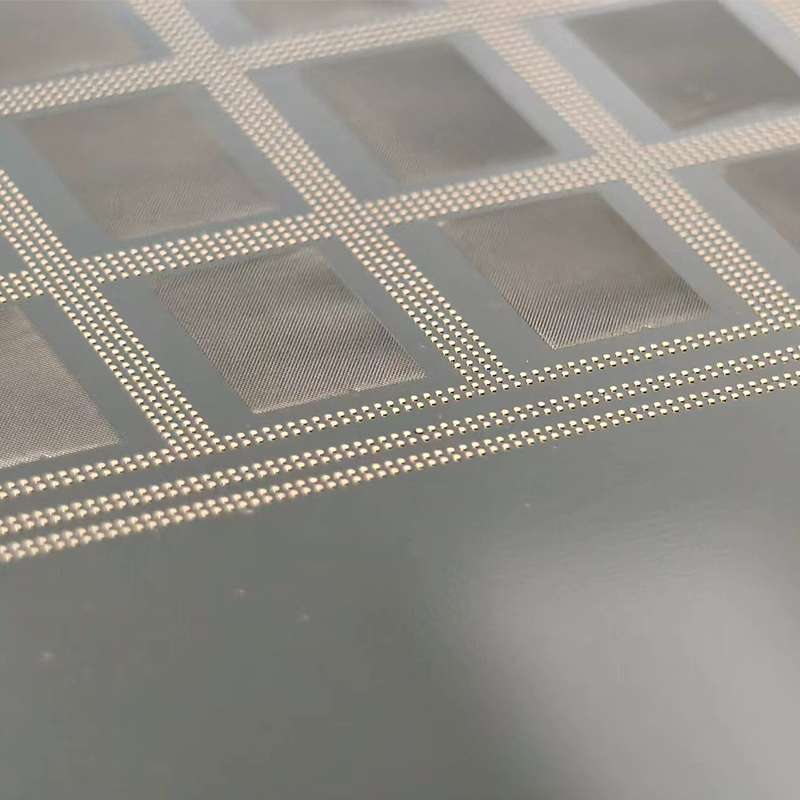

Precision Electroforming manufacturers are specialist organisations dedicated to the research, development and processing of high-precision electroformed products. With their nano-level replication accuracy and ability to form complex structures, they have become an indispensable partner in the high-end manufacturing sector. Precision electroforming is the core business of these manufacturers. Utilising the principles of electrochemical deposition, they achieve the precise shaping of various precision components to meet the high-end demands of industries such as electronics, aerospace and biomedicine. With years of deep industry expertise, these manufacturers continuously optimise their processing techniques and strengthen quality control, driving the development of precision electroforming technology towards greater refinement, intelligence and environmental sustainability. They provide high-quality electroformed products to various industries, thereby supporting industrial upgrading.

The processing workflow of precision electroforming manufacturers is rigorous and standardised, adhering to a standardised operational system. Every stage directly determines the product’s precision and performance. Aligned with the core requirements of precision processing, the process can be divided into five key steps. The first is the design and preparation of the master mould, which forms the foundation for ensuring the quality of precision electroforming. Based on the customer’s requirements for product dimensions, precision and structure, the manufacturer designs precise master mould drawings. Suitable materials such as quartz, stainless steel or high-precision resin are selected for master mould fabrication. Through processes such as laser etching and precision polishing, the surface of the master mould is ensured to be flat and structurally clear, with dimensional tolerances controlled to within ±0.1μm. This lays a solid foundation for subsequent electroforming and is a key prerequisite for the manufacturer to guarantee product consistency.

The second step involves the pre-treatment of the master mould, the core of which is to ensure the surface is conductive and meets cleanliness standards, thereby preventing any adverse effects on the uniform deposition of metal ions. Precision electroforming manufacturers first use gentle methods such as ultrasonic cleaning and plasma cleaning to thoroughly remove oil, oxidation layers and impurities from the surface of the master mould, ensuring the surface is free of any contaminants and preventing any impact on the adhesion of the electroformed layer and the precision of the moulding. Subsequently, a thin conductive metal layer is deposited onto the master mould’s surface using either electroless nickel plating or vacuum aluminium sputtering. This process not only achieves electrical conductivity but also enhances the bond between the subsequent electroformed layer and the master mould, thereby laying a solid foundation for the smooth execution of precision electroforming. It is also a crucial step for precision electroforming manufacturers in improving product yield rates.

The third step is the core electroforming deposition process, which is also the core technology of precision electroforming manufacturers. Precision electroforming manufacturers use the pre-treated master mould as the cathode and select suitable metals such as pure nickel, copper alloys or gold as the anode. These are immersed together in a customised electrolyte solution. By precisely controlling the current density, electrolyte temperature and deposition time, metal ions are deposited uniformly layer by layer onto the surface of the master mould, forming a dense and uniform electroformed layer. During this stage of precision electroforming, process parameters must be strictly controlled. Techniques such as pulsed reverse-polarity power supplies are employed to ensure the electroformed layer is of uniform thickness with a smooth surface, free from burrs and deformation, thereby meeting the requirements of various industries for precision components. This represents the core technological competitiveness of precision electroforming manufacturers.

The fourth step involves demoulding and post-processing, primarily aimed at achieving non-destructive separation of the electroformed part from the master mould and optimising its performance. Precision electroforming manufacturers employ techniques such as thermal separation, precision mechanical demoulding or chemical dissolution to achieve non-destructive separation without damaging the structure of the electroformed part or compromising dimensional accuracy, resulting in a first-pass yield of over 99%. Following demoulding, processes such as electrolytic polishing and passivation are employed to remove burrs from the surface of the electroformed parts, enhance surface finish, improve wear and corrosion resistance, and extend service life. Simultaneously, the dimensions and precision of the electroformed parts are precisely calibrated to ensure compliance with industry standards; this is an indispensable final stage of the precision electroforming process.

The fifth step is the quality inspection phase, which runs throughout the entire precision electroforming process and is key to manufacturers ensuring product quality. Precision electroforming manufacturers utilise high-precision microscopes, laser diameter gauges, coordinate measuring machines and other equipment to comprehensively inspect indicators such as dimensional accuracy, surface roughness and metal layer density. Non-conforming products are rigorously screened out to ensure that every item meets customer requirements. Furthermore, through environmental simulation tests involving high and low temperatures, humidity and corrosion, the stability of products under complex conditions is verified, thereby further ensuring product reliability. This is also a crucial safeguard for precision electroforming manufacturers to achieve large-scale production.

Thanks to their specialist manufacturing capabilities, precision electroforming manufacturers produce components with a wide range of applications, which are deeply integrated into numerous high-end industries such as electronics, aerospace, biopharmaceuticals and precision instrumentation. In the electronics sector, precision electroforming components produced by these manufacturers are widely used in micro-connectors, chip packaging and electronic display components. Thanks to their high-precision structures, they enable high-density integration and stable signal transmission in electronic devices, facilitating the miniaturisation of such equipment. In response to the electronics industry’s demand for rapid iteration, these manufacturers have optimised their processing workflows to achieve a production model characterised by small batches and fast delivery, thereby gaining widespread market recognition.

In the aerospace sector, precision electroformed products serve as core components, finding extensive application in aircraft engine blades, satellite navigation components and aerospace instrumentation. With their ultra-high precision and excellent resistance to high temperatures and corrosion, they ensure the operational safety of aerospace equipment. Precision electroforming manufacturers strictly adhere to aerospace industry standards and implement comprehensive quality control throughout the entire process, providing reliable component support for the aerospace industry. Through technological upgrades, precision electroforming manufacturers have adapted to the stringent requirements of the aerospace sector, driving the application of precision electroforming technology in high-end equipment.

In the biomedical sector, sterile electroformed components produced by precision electroforming manufacturers are widely used in micro-surgical instruments, biosensors, and drug purification components. With their burr-free, impurity-free and sterile characteristics, they ensure the safety and precision of biomedical products; Precision electroforming processes strictly adhere to medical industry hygiene standards, with cleanroom controls implemented throughout production to ensure products meet the usage requirements of the biopharmaceutical sector. Precision electroforming factories customise sterile-grade electroformed components to address the specific needs of the biopharmaceutical sector, supporting the industry’s shift towards precision-driven development.

In the field of precision instruments, precision electroforming manufacturers’ products are widely used in precision gauges, laser equipment and measuring instruments. As core structural components, they enhance the detection accuracy and operational reliability of instruments through their high precision and stability. Precision electroforming manufacturers optimise processing techniques to improve production efficiency, enabling the mass production of precision electroformed parts to meet the demands of large-scale manufacturing in the precision instrument sector. Furthermore, precision electroformed products are also utilised in instrument structures for heat dissipation and signal transmission, thereby further expanding their range of applications.

In addition, the products of precision electroforming manufacturers are applied in sectors such as new energy, optical components and automotive electronics, serving in applications including new energy battery electrodes, optical gratings and automotive micro-components, demonstrating the broad adaptability of precision electroforming. Precision electroforming manufacturers remain market-driven, continuously overcoming technical bottlenecks in electroforming, optimising precision electroforming processes, and enhancing product quality and production efficiency. In the future, as high-end manufacturing continues to upgrade, precision electroforming factories will redouble their efforts to drive the development of precision electroforming technology towards higher precision, greater environmental sustainability and increased intelligence, thereby injecting new vitality into various high-end equipment industries.
