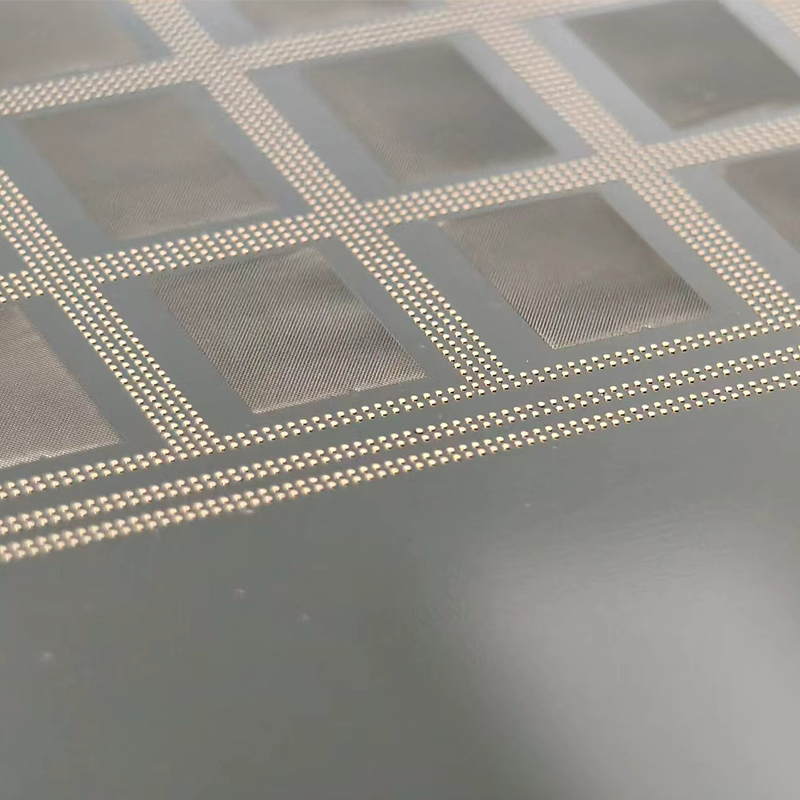

The Process and Applications of Electroformed Moulds in Nanjing

Nanjing electroformed moulds are high-precision mould products manufactured using the principle of electrochemical deposition. Thanks to their core advantages—including high forming accuracy, excellent reproducibility, a smooth surface finish and a long service life—they have become key components in Nanjing’s high-end manufacturing, aerospace supply chain and electronic information sectors. The machining of Nanjing electroformed moulds is a systematic process that integrates electrochemistry, materials science and precision manufacturing technology. Strictly adhering to GB/T 45376-2025 ‘Specifications for Nickel and Copper Electroforming Processes’, it achieves nanometre-level replication of complex mould structures through precise control of processing parameters, thereby meeting the stringent demands for high-end moulds across various industries. Nanjing electroforming mould manufacturers have been deeply rooted in the industry for many years. Leveraging Nanjing’s comprehensive high-end manufacturing industrial chain, university R&D resources, and the advantages of the precision mould industrial cluster, they continuously optimise processing techniques, enhance product quality, and drive the development of Nanjing’s electroforming mould industry towards greater refinement and intelligence.

The Nanjing electroforming mould processing workflow is rigorous and standardised, adhering to a standardised operational system that balances precision and efficiency. Tailored to the specific requirements of Nanjing’s precision mould and aerospace support industries, the process can be divided into five core steps. Firstly, there is the design and preparation of the master mould, which forms the foundation for ensuring the quality of Nanjing electroforming mould processing. Nanjing electroforming mould manufacturers design precise master mould drawings based on clients’ requirements for dimensions, precision and structure, whilst taking into account the application scenarios across various industries in Nanjing. They select suitable materials such as quartz, stainless steel or high-precision resin to fabricate the master mould. Through processes such as laser etching and precision polishing, they ensure the master mould’s surface is flat and its structure is clear, with dimensional tolerances controlled to within ±0.1 μm. This lays a solid foundation for subsequent electroforming and is a key prerequisite for achieving high precision in Nanjing electroformed moulds.

The second step involves the pre-treatment of the master mould, the key objective of which is to ensure the surface of the master mould is conductive and meets cleanliness standards, thereby preventing any adverse effects on the uniform deposition of metal ions and guaranteeing the machining accuracy of the Nanjing electroforming moulds. Manufacturers of Nanjing electroforming moulds first employ gentle methods such as ultrasonic cleaning and plasma cleaning to thoroughly remove oil, oxide layers and impurities from the surface of the master mould, ensuring the surface is free of any contaminants and preventing any adverse effects on the adhesion of the electroformed layer and the moulding accuracy. Subsequently, chemical nickel plating or vacuum aluminium plating processes are employed to deposit a thin conductive metal layer onto the master mould’s surface. This not only achieves the conductive treatment but also enhances the bond strength between the subsequent electroformed layer and the master mould, laying a solid foundation for the smooth progression of Nanjing electroformed mould processing and serving as a crucial step in improving product yield rates.

The third step is the core electroforming deposition stage, which is also the central process of Nanjing electroformed mould processing. Nanjing electroforming mould manufacturers use the pre-treated master mould as the cathode and select suitable metals such as pure nickel or copper alloys as the anode. Both are immersed in a customised electrolyte solution primarily composed of nickel aminosulphate. By precisely controlling the current density, electrolyte temperature and deposition time, metal ions are deposited uniformly layer by layer onto the surface of the master mould, forming a dense and uniform electroformed layer. During this stage, Nanjing electroformed mould manufacturers must strictly control process parameters and employ technologies such as pulsed reverse-polarity power supplies to ensure the electroformed layer is of uniform thickness with a smooth surface, free from burrs and deformation, thereby meeting the requirements for precision moulds across various industries. This represents the core technological competitiveness of Nanjing electroformed mould manufacturers.

The fourth step involves demoulding and post-processing, primarily aimed at achieving the damage-free separation of the Nanjing electroformed mould from the master mould and optimising its performance. Nanjing electroformed mould manufacturers employ techniques such as thermal separation, precision mechanical demoulding or chemical dissolution to achieve damage-free separation without compromising the mould’s structural integrity or dimensional accuracy, achieving a first-pass yield of over 99%. Following demoulding, processes such as electrolytic polishing and passivation are applied to remove burrs from the mould surface, enhance surface finish, and improve the mould’s wear and corrosion resistance, thereby extending its service life. Concurrently, the dimensions and precision of the Nanjing electroformed moulds are meticulously calibrated to ensure compliance with industry standards; this constitutes an indispensable final stage in the Nanjing electroformed mould manufacturing process.

The fifth step is the quality inspection phase, which runs throughout the entire Nanjing electroformed mould manufacturing process and is key to ensuring product quality. Nanjing electroformed mould manufacturers utilise high-precision microscopes, laser diameter gauges, coordinate measuring machines and other equipment to comprehensively inspect indicators such as dimensional accuracy, surface roughness and metal layer density. Non-conforming products are rigorously screened out to ensure that every mould meets customer requirements. Furthermore, through environmental simulation tests involving high and low temperatures, humidity and corrosion, the stability of the moulds under complex conditions is verified, thereby further ensuring product reliability. This is also a crucial safeguard for Nanjing electroformed mould manufacturers to achieve large-scale production.

Thanks to their high precision and stability, Nanjing electroformed moulds are widely used across a range of sectors, playing a vital role in Nanjing’s high-end industries such as electronics and information technology, aerospace, biopharmaceuticals and precision instruments, thereby aligning with the city’s development priorities for high-end manufacturing. In the electronics and information sector, Nanjing electroformed moulds are extensively used in the forming and processing of products such as chip packaging, electronic components and 5G filters. Thanks to their precise replication capabilities, they ensure dimensional consistency in electronic products, thereby supporting the upgrade of Nanjing’s electronics and information industry towards high-end applications. To meet the electronics industry’s demand for rapid iteration, Nanjing electroformed mould manufacturers have optimised their processing workflows to achieve a production model characterised by small batches and fast delivery; they also meet the development needs of Nanjing’s electronics industry through their high-quality products.

In the aerospace sector, Nanjing electroformed moulds undertake the moulding of core components. With technical support from Nanjing University of Aeronautics and Astronautics, they are extensively used in the manufacture of moulds for aircraft engine blades, satellite navigation components and aerospace instruments. Their ultra-high precision, coupled with excellent high-temperature and corrosion resistance, ensures the operational safety of aerospace equipment. Nanjing electroformed moulds strictly adhere to aerospace industry standards, meeting the requirements for use under extreme operating conditions and providing reliable support for the development of Nanjing’s aerospace industry. Leveraging Nanjing’s strengths in research and development, Nanjing Electroforming Moulds continuously overcomes technical bottlenecks to meet the aerospace sector’s stringent requirements for moulds.

In the biomedical sector, the sterile moulds produced by Nanjing Electroforming Moulds are widely used for the forming of micro-surgical instruments, biosensors, and drug purification equipment. With their burr-free, impurity-free and sterile characteristics, they ensure the safety and precision of biomedical products; Nanjing electroformed moulds strictly adhere to medical industry hygiene standards and implement cleanroom controls during production to ensure compliance with the requirements of the biopharmaceutical sector. Manufacturers of electroformed moulds in Nanjing customise sterile-grade moulds to meet the specific needs of the biopharmaceutical sector, thereby supporting the precision-oriented development of Nanjing’s biopharmaceutical industry.

In the precision instrumentation sector, Nanjing Electroformed Moulds serve as core forming components for precision instruments, laser equipment and measuring instruments. With their high precision and stability, they enhance the detection accuracy and operational reliability of these instruments. By optimising process parameters, Nanjing Electroformed Moulds improves production efficiency, enabling mass production of moulds to meet the large-scale manufacturing demands of Nanjing’s precision instrumentation industry. Furthermore, Nanjing electroformed moulds are also utilised in sectors such as new energy and optical components, including moulds for new energy battery electrodes and optical grating moulds, thereby further expanding their application scenarios and aligning with the development needs of Nanjing’s precision mould industry cluster.

Nanjing electroformed mould processing remains market-driven, leveraging the advantages of Nanjing’s comprehensive industrial chain, university R&D resources, and precision mould industry cluster. It continuously overcomes technical bottlenecks in electroforming, optimises processing workflows, and enhances product quality and production efficiency. In the future, as Nanjing’s high-end manufacturing sector continues to upgrade, Nanjing electroformed moulds will achieve breakthroughs in more emerging fields. Manufacturers of Nanjing electroformed moulds will also continue to strive to drive the development of Nanjing electroformed mould processing technology towards higher precision, greater environmental sustainability and greater intelligence, thereby injecting new vitality into Nanjing’s high-end equipment manufacturing industry.
