Metal Electroforming Processes and Applications

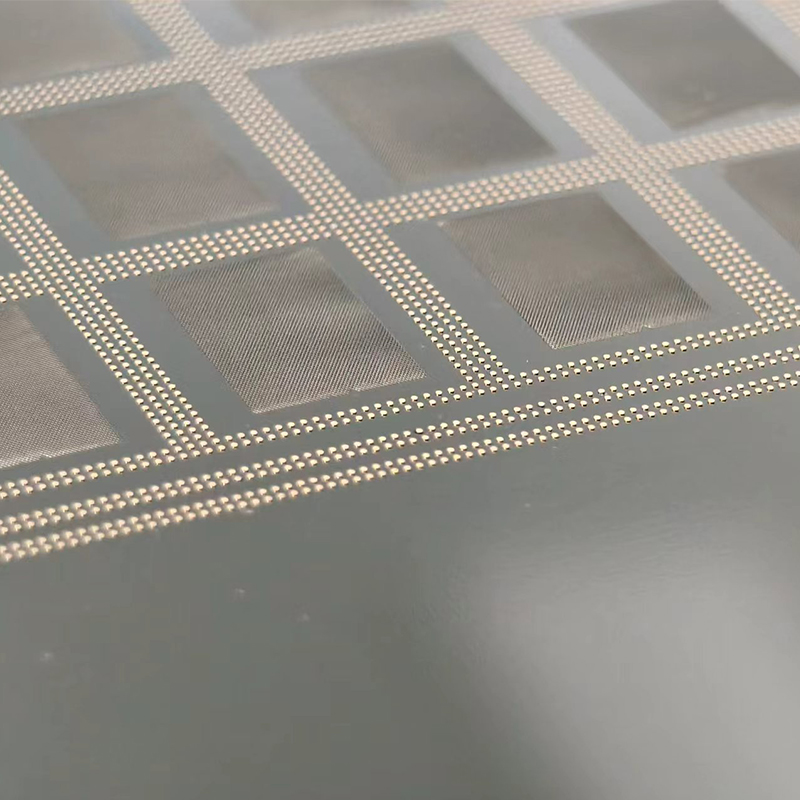

Electroforming is a high-precision manufacturing process based on the principles of electrochemical deposition, using various metals as substrates. Thanks to its key advantages—high dimensional accuracy, the absence of mechanical damage, and excellent structural reproducibility—it has become a vital pillar of high-end manufacturing and the production of precision components. Precision metal electroforming, as a high-end branch of metal electroforming, focuses on micron-level precision control and is suited to more demanding application scenarios. Metal Electroforming manufacturers, with their deep industry expertise, optimise processes to balance the efficiency and quality of both standard and precision processing. This drives the metal electroforming industry towards diversification and high-end upgrading, providing customised metal electroformed products for various sectors.

The metal electroforming process is rigorous and standardised. Taking into account the common characteristics of metal materials, it balances general applicability with specific requirements. The core process comprises five key stages. Precision metal electroforming further enhances precision control within this framework, whilst manufacturers strictly adhere to standardised procedures throughout the entire process to ensure consistent product quality.

The first step involves master mould preparation and pre-treatment, which forms the foundation for ensuring the quality of the electroforming process. Based on product design requirements, manufacturers utilise technologies such as CNC engraving and laser etching to produce master moulds. Materials may be either metallic or non-metallic; metallic master moulds must be polished to a mirror finish, whilst non-metallic master moulds require prior conductive treatment. During the pre-treatment stage, processes such as ultrasonic cleaning, degreasing and rust removal are employed to thoroughly eliminate oil, oxidation layers and impurities from the master mould’s surface, ensuring a clean, flawless surface and providing a stable foundation for subsequent electroforming deposition. Precision metal electroforming places higher demands on the accuracy of the master mould, with geometric tolerances required to be controlled within 5 μm, thereby laying the groundwork for high-precision electroformed parts.

The second step involves conductivisation treatment to create the necessary conditions for metal electroforming. For non-metallic master moulds, manufacturers employ processes such as electroless plating and vacuum sputtering to form a uniform, dense conductive layer, ensuring that metal ions can be deposited evenly; for metallic master moulds, passivation treatment and the application of a release agent are required to prevent the electroformed layer from adhering to the master mould. The conductive treatment in precision metal electroforming is even more meticulous. Vacuum sputtering is employed to enhance the density of the conductive layer, whilst the thickness tolerance of the conductive layer is strictly controlled to avoid compromising the subsequent precision deposition results. This is also one of the key differences between precision metal electroforming and standard metal electroforming.

The third step is the core electroforming deposition stage, which is also the key process in metal electroforming. Metal electroforming manufacturers use the pre-treated master model as the cathode and select suitable metals such as pure nickel, copper or titanium alloys as the anode. These are immersed in a customised electroforming solution, and under the influence of direct current, metal ions are deposited uniformly layer by layer onto the surface of the master model. Metal electroforming requires precise control of parameters such as current density, electrolyte temperature and deposition time to ensure a dense structure and uniform dimensions of the electroformed layer. Precision metal electroforming employs a closed-loop control system to monitor the deposition process throughout, utilising low current density and slow deposition rates to reduce internal stresses within the electroformed layer and ensure micron-level precision; this represents the core technical advantage of precision metal electroforming.

The fourth step involves demoulding and post-processing to optimise product performance and precision. Once the electroformed layer reaches the designed thickness, manufacturers employ gentle methods such as thermal separation and precision mechanical demoulding to achieve non-destructive separation of the electroformed part from the master mould, thereby preventing damage to the product’s structure. Following demoulding, metal electroforming processes employ techniques such as electrolytic polishing and passivation to remove surface burrs, enhance surface finish, and improve the product’s corrosion resistance. Precision metal electroforming additionally incorporates nanoscale surface treatments to further enhance accuracy and surface quality, thereby extending the product’s service life. Concurrently, both processes require precise calibration of dimensional accuracy to ensure compliance with industry standards, which constitutes an indispensable final stage of metal electroforming.

The fifth step is the quality inspection phase, which runs throughout the entire electroforming process. Electroforming manufacturers utilise high-precision microscopes, coordinate measuring machines (CMMs) and hardness testers to comprehensively inspect indicators such as dimensional accuracy, surface roughness and metal layer density. In metal electroforming, the focus is on inspecting dimensional consistency and basic mechanical properties, whilst in precision metal electroforming, the emphasis is on micron-level precision and surface finish. Non-conforming products are rigorously screened out to ensure that every item meets customer requirements; this is also a key safeguard for manufacturers to achieve large-scale production.

Metal electroforming has a wide range of applications, spanning multiple high-end industries such as electronics, aerospace, biopharmaceuticals and precision instruments. Precision metal electroforming focuses on high-end, demanding applications, whilst metal electroforming manufacturers provide a full range of metal electroformed products to support the development of various industries.

The electronics sector represents the core application area for both metal electroforming and precision metal electroforming. Metal electroforming is utilised to manufacture fundamental precision components such as electronic connectors, chip packaging components and electronic heat sinks, ensuring stable signal transmission and efficient heat dissipation; precision metal electroforming, meanwhile, is employed to produce high-end components such as semiconductor probes and micro-sensors, enabling the formation of structures at the micrometre level. In response to the evolving demands of the electronics industry, metal electroforming manufacturers are optimising their processes to enhance product precision and production efficiency, thereby supporting the trend towards miniaturisation and high performance in electronic devices.

In the aerospace sector, metal electroforming plays a vital role. Metal electroforming is used to manufacture basic components such as aeroengine parts and satellite structural components; by eliminating mechanical damage, it ensures stable component performance. Precision metal electroforming, meanwhile, is employed to produce core components for aerospace instruments and micro-navigation structural parts, meeting the demands of ultra-high precision and extreme operating conditions. Metal electroforming manufacturers strictly adhere to aerospace industry standards and optimise precision metal electroforming processes to ensure products meet the requirements for use in high-temperature and high-pressure environments.

In the biomedical sector, both metal electroforming and precision metal electroforming are widely applied. Metal electroforming is used to manufacture basic conductive components for medical devices and precision filtration components; precision metal electroforming is used to produce micro-surgical instruments and biosensors, ensuring the safety of medical equipment through its burr-free and impurity-free characteristics. Metal electroforming manufacturers strictly adhere to medical hygiene standards and implement cleanroom controls to ensure products meet the requirements of the biomedical sector.

Furthermore, metal electroforming is also applied in sectors such as precision moulding and new energy, where it is used to manufacture mould inserts and new energy battery electrodes; precision metal electroforming, meanwhile, is utilised to produce high-precision moulds and optical components, thereby expanding the scope of metal electroforming applications. Metal electroforming remains market-driven, continually overcoming technical bottlenecks. Precision metal electroforming continues to advance towards ever-higher levels of precision, whilst manufacturers are strengthening research and development to drive the technology towards greater environmental sustainability, efficiency and intelligence. In the future, as high-end manufacturing undergoes upgrading, metal electroforming will achieve breakthroughs in more emerging sectors, injecting new vitality into various high-end equipment industries.
