Precision Nickel Mesh Electroforming Process and Application Fields

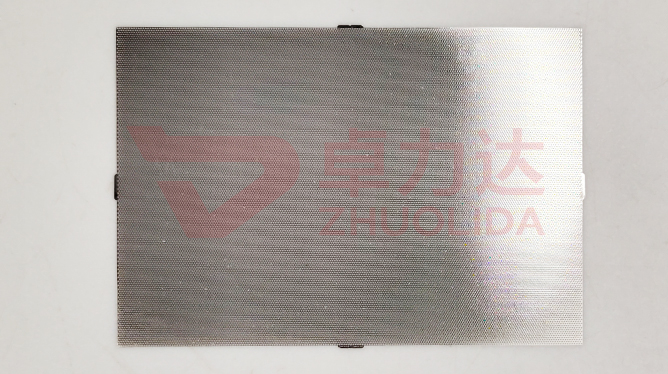

Precision nickel mesh electroforming is a high-end manufacturing technology based on the principle of electrochemical deposition, using high-purity nickel as raw material to achieve precise molding of micron-level mesh structures. With core advantages such as uniform mesh holes, smooth hole walls, strong corrosion resistance, and high dimensional accuracy, it has become a key component processing method in fields such as semiconductors, new energy, and biomedicine. The precision nickel mesh electroforming process is the core realization path of precision nickel mesh electroforming, which replicates complex mesh structures by precisely controlling electroforming parameters to meet the stringent demands for precision filtration and protection across various industries. Manufacturers specializing in precision nickel mesh electroforming focus on process optimization and precision control, promoting the development of precision nickel mesh electroforming towards finer, more stable, and more efficient directions, providing high-quality nickel mesh products for high-end manufacturing.

The electroforming process for precision nickel mesh is rigorous and standardized, taking into account the material characteristics of nickel and the processing difficulties of mesh structures, balancing precision and product performance. It is divided into five major steps. Manufacturers strictly adhere to standardized operations throughout the entire process to ensure the consistency and stability of each batch of products, which is also the foundation for scaling up precision nickel mesh electroforming production.

The first step is the design and pre-treatment of the original mold, which is essential for ensuring the quality of precision nickel mesh electroforming. Manufacturers design precise original mold drawings based on customer requirements for mesh hole size, hole diameter accuracy, and opening rate, using quartz, resin, or special metal materials to create the original mold. Through processes such as laser etching and nanoscale polishing, they ensure a smooth surface and clear hole profile, controlling hole diameter tolerance within ±2μm. The pre-treatment stage involves processes such as ultrasonic cleaning, alkaline degreasing, and acid passivation to thoroughly remove oil, oxidation layers, and impurities from the surface of the original mold. Subsequently, a super-thin conductive layer is formed using vacuum sputtering or chemical nickel plating processes, laying a solid foundation for the uniform deposition of precision nickel mesh electroforming.

The second step is the preparation of the electroforming solution and parameter debugging, which provides core support for precision nickel mesh electroforming. Manufacturers select customized electroforming solutions primarily based on nickel sulfamate, adding additives such as boric acid and sodium saccharin, and precisely controlling the main salt concentration and solution purity to ensure uniform deposition of nickel ions and moderate internal stress within the electroforming layer. At the same time, they debug the parameters of the electroforming equipment, controlling the current density at 1-5 A/dm² and maintaining the electrolyte temperature at 45-55°C. A closed-loop control system is used for real-time monitoring of parameters to avoid issues such as mesh deformation and uneven hole diameters, which is also one of the core technical points of precision nickel mesh electroforming.

The third step is the core electroforming deposition phase, which is a key process in precision nickel mesh electroforming. Manufacturers use the pre-treated original mold as the cathode and a pure nickel plate as the anode, immersing them in the prepared electroforming solution. Through direct current action, nickel ions are deposited layer by layer on the surface of the original mold, forming a dense and uniform nickel mesh structure. Throughout this phase, the deposition process is monitored, and the deposition time is adjusted according to the required mesh thickness to ensure uniform electroforming layer thickness, regular mesh holes, no burrs, no deformation, and precise control of the opening rate between 30%-70%. This is also the core technical competitiveness of precision nickel mesh Electroforming manufacturers.

The fourth step is demolding and post-processing, optimizing the performance and precision of the precision nickel mesh. Once the electroforming layer reaches the design thickness, manufacturers use gentle methods such as thermal peeling or micro-mechanical demolding to achieve non-destructive separation of the nickel mesh from the original mold without damaging the mesh structure or affecting hole accuracy, achieving a yield rate of over 99%. After demolding, processes such as electrolytic polishing and passivation treatment are employed to remove tiny burrs from the mesh surface, enhancing surface smoothness and improving the corrosion and wear resistance of the nickel mesh. At the same time, the hole diameter, hole spacing, and flatness of the precision nickel mesh are precisely calibrated to ensure compliance with industry standards, which is also an indispensable finishing step in precision nickel mesh electroforming.

The fifth step is the quality inspection phase, which runs through the entire process of precision nickel mesh electroforming and is key to ensuring product quality. Manufacturers use high-precision laser interferometers, scanning electron microscopes, and coordinate measuring machines to conduct comprehensive inspections of metrics such as hole diameter accuracy, uniformity of mesh thickness, consistency of hole spacing, and surface roughness. Special attention is given to the replication accuracy of mesh holes and the mechanical properties of the nickel mesh, with strict screening of non-conforming products to ensure that each product meets customer usage requirements. This is also an important guarantee for manufacturers to achieve scaled production of precision nickel mesh electroforming.

With its micron-level precision and high stability advantages, precision nickel mesh electroforming is widely used in various high-end industries, deeply integrated into semiconductors, new energy, biomedicine, and precision filtration. Manufacturers focus on the formation of high-precision nickel mesh and provide customized solutions to support high-end equipment manufacturing across various industries.

In the semiconductor field, precision nickel mesh electroforming is a core application scenario, requiring extremely high mesh hole precision and consistency. Nickel meshes produced through precision nickel mesh electroforming are widely used in processes such as photoresist filtration, wafer cleaning fluid filtration, and semiconductor chip packaging. With a uniform mesh structure, they precisely intercept tiny impurities, ensuring chip yield. Precision nickel mesh electroforming can achieve controllable hole diameters from 0.1 to 500μm, adapting to the refined needs of the semiconductor industry. Manufacturers optimize processes to ensure compliance with verticality standards for mesh hole sidewalls, avoiding taper issues common in traditional processes.

In the new energy sector, precision nickel mesh electroforming plays an important role. Nickel meshes produced through precision nickel mesh electroforming are widely used in new energy battery electrodes, electrolyte filtration, and photovoltaic component protection. With good conductivity and corrosion resistance, they enhance battery charge and discharge efficiency and lifespan. By precisely controlling mesh hole size and opening rate, manufacturers optimize fluid throughput and reduce clogging risks, customizing different specifications of nickel meshes to meet the diverse usage needs of lithium batteries, photovoltaics, and other scenarios.

In the biomedicine field, precision nickel mesh electroforming is widely used in biological sample filtration, drug purification, and protection of micro-medical devices due to its characteristics of no burrs, no impurities, and good biocompatibility, ensuring the safety and precision of biomedical products. Manufacturers strictly adhere to hygiene standards in the medical industry, implementing ultra-clean control during the production process. They customize sterile-grade precision nickel meshes to support the biomedical industry in advancing towards precision medicine.

Additionally, precision nickel mesh electroforming is applied in fields such as precision chemicals and environmental filtration, used for ink and pigment selection, wastewater treatment, etc. With advantages such as strong corrosion resistance and stable flux, it enhances filtration efficiency and product purity. Precision nickel mesh electroforming continuously focuses on market demand, breaking through technical bottlenecks, optimizing processing flows, and improving product quality and production efficiency. In the future, as high-end manufacturing continues to upgrade, precision nickel mesh electroforming will achieve breakthroughs in more emerging fields, and manufacturers will continue to push forward, advancing precision nickel mesh electroforming technology towards higher precision, greater environmental friendliness, and more intelligence, injecting new vitality into various high-end equipment industries.
