Electroforming Processes and Applications of Nickel Alloys

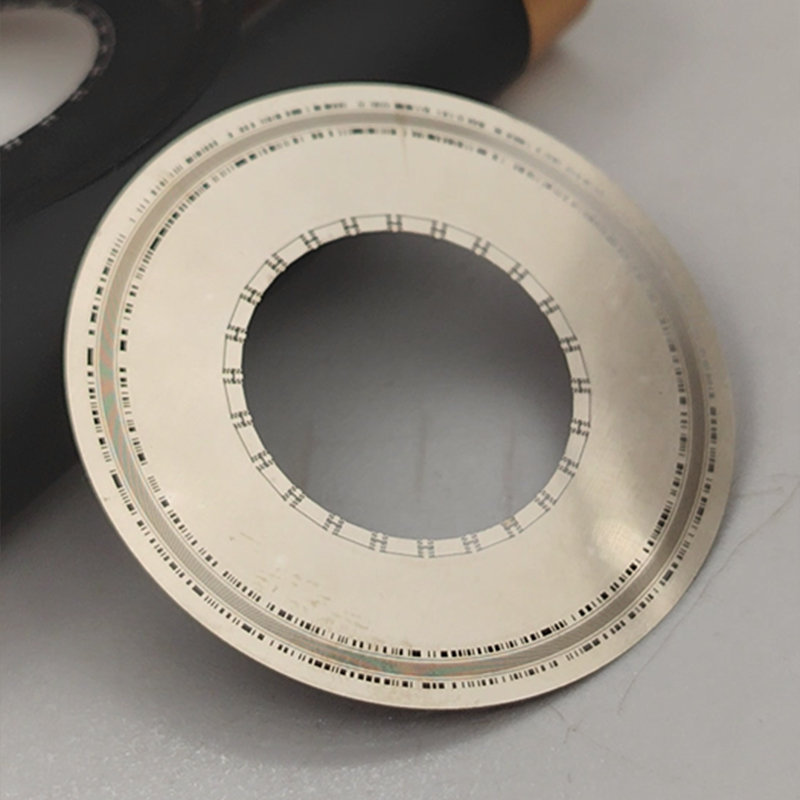

Electroforming of nickel alloys is a high-precision manufacturing process based on the principles of electrochemical deposition, using nickel alloys as the core substrate. Owing to the advantages of nickel alloys—namely their high-temperature resistance, excellent corrosion resistance and high hardness—this process has become a key manufacturing method in the field of high-end equipment manufacturing. As the core technological foundation of nickel alloy electroforming, the electroforming process enables the uniform deposition of nickel alloy ions through precise control of electroforming parameters, thereby replicating complex and intricate structures. Manufacturers specialising in nickel alloy electroforming have deepened their expertise in the industry, focusing on process optimisation and quality control. They are driving the advancement of nickel alloy electroforming towards greater precision and large-scale production, providing high-quality nickel alloy electroformed products to various industries.

The nickel alloy electroforming process is rigorous and standardised. Taking into account the material properties of nickel alloys, it balances precision with performance. The core process comprises five key stages. Manufacturers strictly adhere to standardised operations throughout the entire process, with the electroforming process playing a central role at every stage to ensure the consistency and stability of every batch of products, meeting the stringent requirements of various industries.

The first step involves master mould design and pre-treatment, which forms the foundation for ensuring the quality of nickel alloy electroforming. Manufacturers produce master moulds using techniques such as laser etching and CNC engraving in accordance with product design requirements. Materials may be either metallic or non-metallic; metallic master moulds must be polished to a mirror finish, whilst non-metallic master moulds require prior conductive treatment. During the pre-treatment stage, processes such as ultrasonic cleaning, degreasing and passivation are employed to thoroughly remove oil, oxide layers and impurities from the master mould’s surface, ensuring it is clean and free from defects, thereby laying the groundwork for subsequent electroforming deposition. The nickel alloy electroforming process demands extremely high precision from the master mould; dimensional and geometric tolerances must be strictly controlled to ensure the accuracy of the subsequent electroformed parts. This is also a key prerequisite for achieving high precision in nickel alloy electroforming.

The second step involves conductivisation treatment to create the necessary conditions for nickel alloy electroforming. For non-metallic master moulds, manufacturers employ processes such as electroless nickel plating and vacuum sputtering to form a uniform, dense conductive layer, ensuring that nickel alloy ions can be deposited evenly. For metallic master moulds, passivation treatment and the application of a release agent are required to prevent the electroformed layer from adhering to the master mould. During the conductive treatment stage of the nickel alloy electroforming process, the thickness and density of the conductive layer are precisely controlled to avoid defects in the electroformed layer caused by an uneven conductive layer, thereby further ensuring the stability of the nickel alloy electroforming process. This is also one of the core technical points of the nickel alloy electroforming process.

The third step is the core electroforming deposition stage, which is also a critical process in nickel alloy electroforming. The manufacturer uses the pre-treated master as the cathode and a nickel alloy sheet as the anode, immersing both in a customised electroforming solution. Under the influence of direct current, nickel alloy ions are deposited uniformly layer by layer onto the surface of the master. The nickel alloy electroforming process plays a central role at this stage. Parameters such as current density, electrolyte temperature and deposition time are precisely controlled, whilst the electroforming solution formulation is adjusted according to the nickel alloy composition (e.g. nickel-cobalt or nickel-iron alloys) to ensure the electroformed layer is uniform in composition, dense in structure, and free from burrs or deformation. The control of this process stage directly determines the quality of products produced by nickel alloy electroforming and constitutes the core competitiveness of nickel alloy Electroforming manufacturers.

The fourth step involves demoulding and post-processing, which optimise the performance and precision of nickel alloy electroformed products. Once the electroformed layer has reached the designed thickness, the nickel alloy electroforming manufacturer employs gentle methods such as thermal separation and low-force mechanical demoulding to achieve non-destructive separation of the electroformed part from the original mould, thereby avoiding damage to the product’s structure. Following demoulding, processes such as electrolytic polishing and passivation are employed to remove surface burrs, enhance surface finish, and improve the nickel alloy’s corrosion and wear resistance. Concurrently, the dimensional accuracy of the product is precisely calibrated to ensure compliance with industry standards. Optimising parameters during these post-processing stages further enhances product performance and extends service life, making this an indispensable final step in the nickel alloy electroforming process.

The fifth step is the quality inspection phase, which runs throughout the entire nickel alloy electroforming process and is key to ensuring product quality. Nickel alloy electroforming manufacturers utilise high-precision microscopes, coordinate measuring machines (CMMs) and hardness testers to comprehensively inspect indicators such as dimensional accuracy, surface roughness, alloy composition and mechanical properties. The nickel alloy electroforming process establishes clear inspection standards, focusing on controlling the compositional uniformity and precision of the electroformed layer. Non-conforming products are rigorously screened out to ensure that every item meets customer requirements. The strict control exercised at this stage is a vital safeguard for manufacturers to achieve large-scale production and a testament to the maturity of the nickel alloy electroforming process.

Owing to their excellent overall performance, nickel alloy electroforming applications are extensive, spanning multiple high-end industries such as aerospace, electronics, biomedicine and precision instrumentation. The nickel alloy electroforming process is continuously optimised and upgraded to meet the specific requirements of different sectors, with manufacturers providing customised solutions to support high-end equipment manufacturing across various industries.

The aerospace sector is a core application area for nickel alloy electroforming, where components must meet extremely high standards for heat resistance, corrosion resistance and precision. Components produced via nickel alloy electroforming are widely used in aircraft engine blades, satellite navigation structural components and core parts of aerospace instruments. Thanks to the superior properties of nickel alloys, these components ensure the stable operation of equipment under extreme operating conditions. The nickel alloy electroforming process achieves the formation of complex, precision structures through precise control of the electroformed layer’s thickness and composition, meeting the aerospace sector’s demands for lightweight and high-precision equipment. Manufacturers of nickel alloy electroformed components strictly adhere to industry standards to ensure products meet the requirements for use in extreme environments.

In the electronics sector, nickel alloy electroforming plays a vital role. It is utilised in the manufacture of micro-connectors, chip packaging components and electronic heat sinks. Thanks to its excellent electrical conductivity and corrosion resistance, it is well-suited to the high-temperature, high-frequency operating environments of electronic devices. The nickel alloy electroforming process optimises electroforming parameters to achieve micron-level structural formation, meeting the development needs of electronic devices for miniaturisation and high performance. Nickel alloy electroforming manufacturers continuously optimise the electroforming process in response to the evolving demands of the electronics industry, enhancing product precision and production efficiency.

In the biomedical sector, nickel alloy electroforming products are precisely tailored to meet industry requirements. Nickel alloy electroforming is used to manufacture micro-surgical instruments, biosensors and similar items; with their burr-free, impurity-free and biocompatible characteristics, they ensure the safety of medical equipment. The nickel alloy electroforming process is carried out in a clean environment, strictly adhering to the hygiene standards of the medical industry to control the impurity content of products. Manufacturers of nickel alloy electroformed products customise their output to meet the specific requirements of the medical sector, thereby supporting the biopharmaceutical industry’s progression towards precision medicine.

Furthermore, nickel alloy electroforming is also applied in fields such as precision moulds and new energy, where it is used to manufacture high-precision mould inserts and new energy battery electrodes, amongst other products. Nickel alloy electroforming is consistently market-driven, continually overcoming technical bottlenecks. The electroforming process is subject to continuous optimisation and upgrading to enhance processing precision and efficiency. Manufacturers are strengthening research and development to drive the technology towards greater environmental sustainability, higher efficiency and greater precision. In the future, as high-end manufacturing undergoes upgrading, nickel alloy electroforming will achieve breakthroughs in more emerging sectors, injecting new vitality into various high-end equipment industries.
