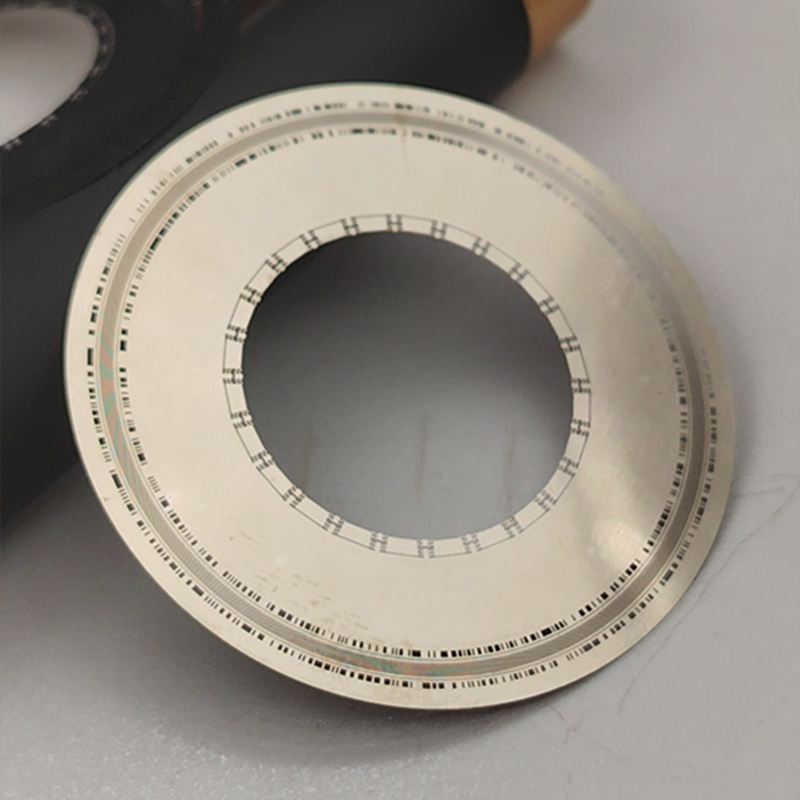

The Manufacturing Process and Applications of Electroformed Coding Discs

Electroformed encoder disc manufacturing is a high-end manufacturing process that utilises the principles of electrochemical deposition to produce high-precision encoded structures. Thanks to its key advantages—including clear encoding patterns, precise indexing, high wear resistance and excellent stability—it has become a critical manufacturing method in sectors such as precision instrumentation, automation equipment and aerospace. As a high-end product within the electroformed scale sector, precision electroformed scales focus on micrometre-level control of encoding accuracy, catering to more demanding positioning and measurement applications. Manufacturers specialising in electroformed scale production have deepened their expertise in the industry, concentrating on process optimisation and precision control. They are driving the advancement of electroformed scale manufacturing towards greater refinement, scalability and high-end capabilities, providing high-quality electroformed scale products to various industries.

The electroformed encoder disc manufacturing process is rigorous and complex, with the core objective being the precise replication of encoding patterns and uniform indexing. Taking into account the material properties of suitable metals such as nickel and copper, the process is divided into five key stages. Manufacturers strictly adhere to standardised procedures throughout the entire process, whilst precision electroformed encoder discs further enhance accuracy control to ensure the consistency and stability of the encoding structure in every product.

The first step involves the design and pre-treatment of the master mould, which forms the foundation for ensuring the quality of electroformed code disc manufacturing. Based on the customer’s requirements for code indexing, pattern width and precision grade, the manufacturer designs precise master mould drawings. The master mould is fabricated from quartz, glass or special metals, and high-precision techniques such as laser etching and electron beam lithography are employed to create a clear, uniform code master on the surface of the master mould, ensuring that code indexing tolerances are controlled to the micrometre level. During the pre-treatment stage, processes such as ultrasonic cleaning, alkaline degreasing, and acid pickling are employed to thoroughly remove oil, oxide layers and impurities from the master mould’s surface. Subsequently, a vacuum sputtering process is used to form an ultra-thin conductive layer, laying a solid foundation for uniform deposition during electroformed code disc manufacturing. This is also a key prerequisite for achieving high-precision forming in precision electroformed code discs.

The second step involves the preparation of the electroforming solution and parameter tuning, which provides the core assurance for the production of electroformed code discs. Manufacturers select customised electroforming solutions primarily composed of nickel aminosulphate and copper sulphate, supplemented with specialised additives. They precisely control the concentration of the main salt, solution purity and pH value to ensure uniform metal ion deposition and moderate internal stress within the electroformed layer, thereby preventing deformation or blurring of the code patterns. Concurrently, electroforming equipment parameters are fine-tuned, with a closed-loop control system monitoring key indicators such as current density and electrolyte temperature in real time. For precision electroformed code discs, parameter adjustments are further refined to ensure the straightness of the code patterns and uniformity of the pitch; this is also one of the core technical aspects for manufacturers of electroformed code discs.

The third step is the core electroplating deposition stage, which is also the critical process in the manufacture of electroplated code discs. The manufacturer uses the pre-treated code disc master as the cathode and a suitable metal sheet as the anode, immersing both in the prepared electroplating solution. Under the influence of direct current, metal ions are deposited uniformly layer by layer onto the surface of the master’s encoded patterns, forming a dense and uniform electroplated code disc structure. Electroformed code disc manufacturing requires continuous monitoring of the deposition process. The deposition time is adjusted according to the required disc thickness to ensure that the electroformed layer is uniform in thickness, the code patterns are clear, and there are no burrs or deformations, whilst maintaining precise indexing. For precision electroformed code discs, a low-current-density, slow-speed deposition method is employed to reduce internal stress within the electroformed layer, further enhancing the precision of the code patterns and surface finish, thereby ensuring accuracy in positioning and measurement.

The fourth step involves demoulding and post-processing, which optimise the performance and precision of the electroformed code disc products. Once the electroformed layer has reached the designed thickness, the manufacturer employs gentle methods such as thermal separation and low-force mechanical demoulding to achieve non-destructive separation of the electroformed code disc from the original mould without damaging the coding structure or compromising indexing accuracy; the yield rate can reach over 99%. Following demoulding, processes such as electrolytic polishing and passivation are employed to remove minute burrs from the disc’s surface, enhancing surface finish and improving the electroformed disc’s corrosion and wear resistance. Concurrently, precise calibration is carried out on the disc’s indexing, groove width and flatness to ensure compliance with industry standards. Precision electroformed code discs undergo an additional nano-level surface treatment to further optimise code recognition accuracy; this is an indispensable final step in the electroforming process.

The fifth step is the quality inspection phase, which runs throughout the entire electroformed encoder disc manufacturing process and is key to ensuring product quality. Manufacturers utilise professional equipment such as high-precision microscopes, coordinate measuring machines and encoder disc testers to comprehensively inspect parameters including encoding indexing, groove precision, surface roughness and wear resistance. Precision electroformed code discs undergo rigorous testing of micron-level coding accuracy and indexing stability, with non-conforming products strictly screened out to ensure that every item meets the customer’s requirements. Strict control at this stage is a vital safeguard for manufacturers to achieve large-scale production and is the core manifestation of the quality of precision electroformed code discs.

Electroformed encoder discs have a wide range of applications, focusing on high-end industries such as precision instrumentation, automation and aerospace. Thanks to their ultra-high precision, precision electroformed encoder discs are suitable for the most demanding positioning and measurement scenarios. Manufacturers of electroformed encoder discs provide a full range of products and customised solutions, supporting technological upgrades across various industries.

The precision instrumentation sector represents the core application area for electroformed encoder discs, where demands for indexing accuracy and stability are exceptionally high. Encoder discs produced through this process are widely used in CNC machine tools, angle measuring instruments, precision balances and optical instruments. Through precise encoding and indexing, they enable accurate positioning and measurement of equipment, ensuring the testing accuracy and operational stability of instruments. Precision electroformed encoder discs are utilised in high-end precision instruments to achieve micrometre-level indexing control, thereby enhancing the measurement resolution of equipment. Manufacturers of electroformed encoder discs continuously optimise their manufacturing processes in response to the evolving demands of the precision instrument industry.

In the field of automation, electroformed encoder discs play a vital role. Encoders produced through electroforming are widely used in industrial robots, automated production lines, and servo motors. As core positioning components, they enable precise motion control and position feedback for equipment. Precision electroformed encoders can achieve high-density, fine-pitch encoding structures, meeting the high-speed operational demands of automated equipment. Manufacturers ensure the consistency of the encoding patterns through process optimisation, thereby supporting the development of automated equipment towards higher precision and stability.

In the aerospace sector, electroformed encoder discs are precisely engineered to meet the demands of extreme operating conditions. These discs are widely used in space navigation equipment, aviation instruments and satellite attitude control systems. Thanks to their resistance to high and low temperatures, wear resistance and stable precision, they ensure the normal operation of equipment in extreme environments. Through rigorous process control, precision electroformed code discs achieve ultra-high-precision encoding structures, meeting the stringent positioning requirements of aerospace equipment. Manufacturers strictly adhere to aerospace industry standards to ensure products comply with specifications for use in extreme environments.

Furthermore, electroformed code discs are also applied in fields such as biomedicine and automotive electronics, featuring in medical precision instruments and automotive steering control systems. Their high precision and stability enhance the operational accuracy and reliability of such equipment. Electroformed encoder disc manufacturing remains market-driven, continually overcoming technical bottlenecks. Precision electroformed encoder discs are evolving towards ever-higher levels of accuracy and stability, whilst manufacturers are strengthening research and development to drive the technology towards greater environmental sustainability, efficiency and intelligence. In the future, as high-end manufacturing undergoes upgrading, electroformed encoder disc manufacturing will achieve breakthroughs in more emerging fields, injecting new vitality into various high-end equipment industries.
