Electroforming Processes and Applications in Huizhou

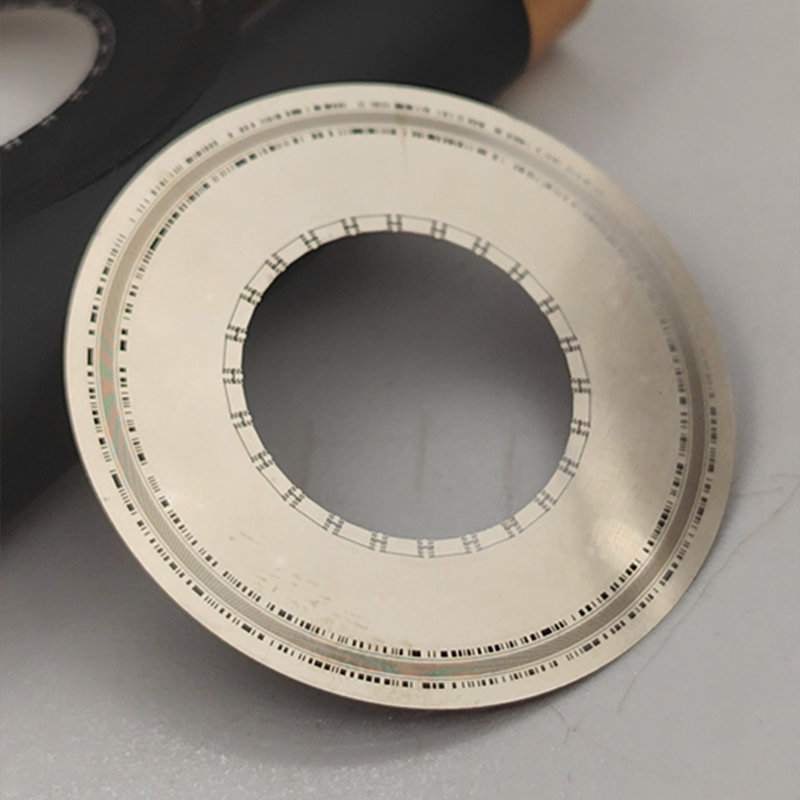

Electroforming in Huizhou is a specialised manufacturing technique that utilises the principles of electrochemical deposition to achieve precision metal forming. Building on the strengths of Huizhou’s electronics, new energy and precision manufacturing clusters, and using nickel, copper and nickel-cobalt alloys as core materials, it is capable of reproducing microstructures with micron-level precision, making it a key process in the manufacture of high-end components. As a high-end form of the process, Huizhou Precision Electroforming focuses on sub-micron precision control, the forming of complex thin-walled structures, and the production of ultra-high surface quality, making it suitable for demanding operating conditions and high-precision applications. Huizhou Electroforming manufacturers have deeply engaged with regional industrial needs, continuously optimising electroforming process systems and production standards. They are driving the advancement of Huizhou’s electroforming industry towards greater refinement, intelligence and scale, providing stable and reliable precision electroforming solutions for high-end manufacturing in Huizhou and the surrounding areas.

The Huizhou electroforming process system is rigorous, balancing process stability with controllable precision. Centred on four key dimensions—master mould preparation, electroplating, post-demoulding treatment, and quality control—it forms a standardised operational chain. Huizhou electroforming manufacturers strictly adhere to full-process specifications. Building on this foundation, Huizhou precision electroforming reinforces closed-loop precision control at key stages to ensure that every batch of products meets standards for dimensional consistency, geometric accuracy and surface quality, thereby meeting the requirements for the production of precision components across different materials and applications.

The first step is the design and preparation of the master mould, which lays the foundation for Huizhou electroforming. Manufacturers select suitable master mould materials based on product requirements, including metals such as aluminium and stainless steel, as well as non-metals such as wax, plastic and epoxy resin. Metal master moulds undergo precision CNC machining, grinding and polishing, with geometric tolerances controlled to ≤5μm; Non-metallic master moulds are formed via 3D printing or precision engraving, with their surfaces undergoing conductive treatment to form a uniform conductive layer through electroless plating, vacuum coating or the application of conductive paint, ensuring uniform current distribution during electroforming. The surface roughness of the master mould must be controlled to Ra ≤ 0.2 μm, free from scratches and defects, as the precision of the master mould directly determines the precision of the electroformed part. Huizhou Precision Electroforming imposes even stricter requirements on master moulds, which must undergo 100% inspection using high-magnification microscopes and coordinate measuring machines to ensure the microstructure of the master mould is free from deviations, thereby guaranteeing the subsequent sub-micron electroforming process.

The second step involves pre-treatment and the preparation of the electrolyte prior to electroforming, ensuring the quality of the moulds produced during the electroforming process in Huizhou. Manufacturers in Huizhou subject the master moulds to degreasing, ultrasonic cleaning and activation treatments to remove surface oils, impurities and oxide layers, thereby enhancing the bond between the conductive layer and the metal deposit layer and preventing flaking or peeling. Concurrently, specialised electrolytes are formulated according to the electroforming material: a nickel sulphate system is used for nickel electroforming, whilst a copper sulphate system is employed for copper electroforming. The concentration, pH, temperature and additive ratios of the electrolytes are precisely controlled; additives include brighteners and stress relievers, which serve to refine the grain structure and reduce internal stress. Precision electroforming in Huizhou requires high-precision filtration of the electrolyte and real-time monitoring of its composition to ensure the purity and stability of the electrolyte parameters, thereby providing a pristine environment for subsequent precision deposition. This is also key to ensuring product consistency for Huizhou electroforming manufacturers.

The third step is the core electroplating process, which constitutes the critical stage of Huizhou electroforming. Huizhou electroforming manufacturers place the pre-treated master mould as the cathode and the corresponding metal material as the anode into the electroforming tank containing the electrolyte. A direct current power supply is then connected, with the current density controlled at 0.5–5 A/dm² and the temperature at 40–60 °C, enabling metal ions to deposit layer by layer onto the surface of the master mould. Electroforming duration is determined by the required product thickness, ranging from several hours to several hundred hours. The thickness of the deposited layer can be precisely controlled to within ±2 μm, with real-time monitoring of the deposition process to prevent defects such as thickness inconsistencies, pinholes and pitting. Huizhou precision electroforming utilises refined parameters such as low current density and pulsed electroforming to reduce internal stresses within the electroformed layer, ensuring dimensional tolerances are controlled to within ±0.005 mm and surface roughness (Ra) of hole walls or structural edges is ≤0.1 μm, thereby reproducing micron-scale or even sub-micron-scale micro-textures.

The fourth step involves demoulding and post-processing to optimise the performance of the electroformed products. Once the electroformed layer has reached the designed thickness, Huizhou electroforming manufacturers employ appropriate demoulding methods: metal master moulds are removed via thermal expansion or mechanical demoulding, whilst non-metallic master moulds are removed through chemical dissolution or thermal demoulding, ensuring the electroformed parts are separated without damage. Following demoulding, the electroformed parts are cleaned to remove residual electrolyte. Heat treatment (annealing at 200–300°C) is carried out as required to eliminate internal stresses and enhance mechanical properties. Subsequently, processes such as electrolytic polishing, grinding and coating are employed to remove minute burrs, improve surface finish, and enhance wear and corrosion resistance. Huizhou Precision Electroforming adds additional nano-level surface treatments, such as ion beam sputtering coatings, to further enhance product functionality and stability, meeting the special requirements of high-end applications.

The fifth step involves comprehensive quality inspection, which runs throughout the entire Huizhou electroforming process. Huizhou electroforming manufacturers are equipped with specialised equipment such as coordinate measuring machines, laser interferometers, scanning electron microscopes and roughness testers to conduct comprehensive testing of electroformed parts for dimensional accuracy, geometric tolerances, surface roughness, hardness and corrosion resistance. For batch production, a 100% inspection of samples is carried out to strictly control the release of non-conforming products. Huizhou precision electroforming places particular emphasis on inspecting sub-micron precision, microstructural integrity and the stability of mechanical properties. Surface microstructures are examined using high-magnification electron microscopes to ensure the absence of cracks and pinholes, whilst data is retained and traced throughout the entire process to guarantee consistent and reliable product quality.

Huizhou electroforming has a wide range of applications and is deeply integrated into the region’s key industries, including electronics and information technology, new energy, healthcare, and precision optics, serving as a crucial pillar of high-end manufacturing in the region. Leveraging its ultra-high precision capabilities, Huizhou precision electroforming meets the demands for high-end core components across various sectors. Relying on the advantages of regional industrial synergy, Huizhou electroforming manufacturers provide customised electroforming services, supporting technological upgrades and product iterations across multiple industries.

The electronics and information sector represents the core application area for Huizhou electroforming, aligning with the development needs of the industrial cluster. Electroformed components produced in Huizhou are widely used in precision parts such as semiconductor lead frames, micro-connectors, SMT stencils, 5G filters and high-frequency antenna contacts. For instance, the micron-level pin structures in lead frames ensure stable signal transmission with low loss. Huizhou’s precision electroforming capabilities can produce sub-micron structures, aligning with the trend towards miniaturisation and integration in electronic devices, and enhancing the precision and stability of electronic components. Manufacturers in Huizhou are continuously optimising their processes to meet the demands of the electronics industry’s iterative upgrades.

The new energy sector has become a key application area for electroforming in Huizhou, meeting the demands of the industry’s rapid development. Huizhou electroforming is utilised in hydrogen fuel cell bipolar plates, lithium-ion battery electrode current collectors, heat dissipation components for new energy vehicles, and photovoltaic screens. For instance, the precision flow channel structures in fuel cell bipolar plates ensure uniform gas distribution and enhance power generation efficiency. Huizhou’s precision electroforming processes enable precise control over channel depth, porosity and structural uniformity, thereby optimising fluid transfer efficiency and heat dissipation performance. Through process innovation, Huizhou electroforming manufacturers enhance the energy efficiency and stability of new energy components, supporting the large-scale development of the new energy industry.

Demand for Huizhou electroforming is particularly strong in the healthcare sector, with a focus on precision medical devices and biomaterials. Electroformed components produced in Huizhou are used in products such as minimally invasive medical instruments, medical microporous filters, interventional electrodes and microfluidic chips. For example, the precision interlocking tooth modules in minimally invasive surgical instruments feature high accuracy and are burr-free, ensuring precise and safe surgical procedures. Huizhou precision electroforming utilises biocompatible materials to produce electroformed structures with high cleanliness and zero defects, thereby preventing damage to human tissue. Huizhou electroforming manufacturers strictly adhere to medical industry standards to ensure product safety and reliability, supporting the development of more precise and minimally invasive medical devices.

In the field of precision optics and instrumentation, Huizhou electroforming meets the demands for ultra-high precision and complex structures. Electroformed components produced in Huizhou are used in optical gratings, apertures, laser mirror substrates, precision sensors, and precision watch components. For instance, the micron-level etched structures of optical gratings feature smooth edges and precise dimensions, ensuring stable optical performance. Huizhou precision electroforming can replicate nanometre-scale optical structures, with surface form errors controlled within λ/10. These components are wear-resistant and age-resistant, ensuring the stable operation of optical instruments in high-precision applications. Huizhou electroforming manufacturers strictly control product quality, thereby contributing to technological advancements in the precision optics industry.

Furthermore, Huizhou electroforming is applied in sectors such as aerospace, automotive electronics and precision moulding, including aircraft engine fuel nozzles, automotive LiDAR housings and precision injection mould cavities. By leveraging its advantages of high precision, high reproducibility and the absence of mechanical stress, it overcomes the limitations of traditional machining processes. Huizhou electroforming processing remains market-driven, continuously overcoming technical bottlenecks. Huizhou’s precision electroforming processing is constantly evolving towards ultra-micro precision, complex structures and composite materials. Manufacturers in Huizhou are strengthening technical R&D and industrial collaboration to drive the upgrading of electroforming technology towards greater efficiency, environmental sustainability and intelligence. In the future, as Huizhou’s high-end manufacturing sector continues to expand, electroforming in Huizhou will see its applications extend into more emerging fields, injecting new vitality into the high-quality development of the regional economy.
