Research on Electroforming Technology and Industrial Application Cases of Micron‑Scale Nickel Screens

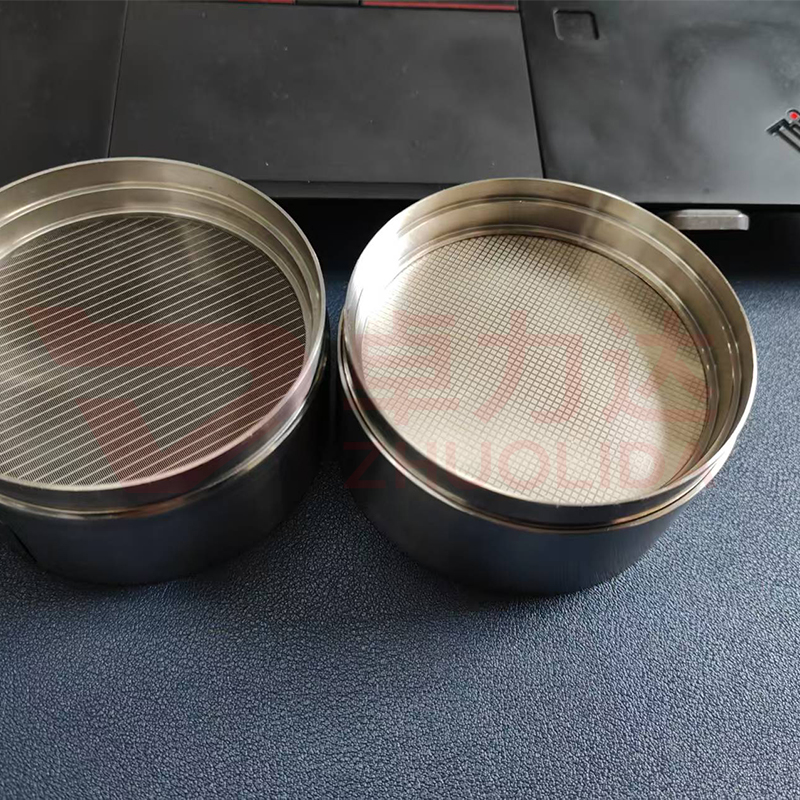

Polymer Microporous Screen Mesh

With the rapid upgrading of high-end manufacturing industries such as precision screening, fluid purification, photoelectric sensing and biomedicine, screens produced by traditional mechanical processing and weaving processes commonly suffer from inconsistent apertures, rough mesh surfaces, insufficient strength and easy deformation, failing to meet the production standards for micron-level precise filtration and high-precision screening. Fabricated by electroforming additive technology, micron-scale nickel screens have become core components for micro-nano filtration and precision screening scenarios, featuring regular apertures, smooth hole walls, high structural strength, acid and alkali resistance, and stable dimensional accuracy. Micron-scale nickel screen processing adopts stress-free electrochemical deposition molding, eliminating defects of traditional processing including tensile deformation, burrs and aperture deviation, and enabling stable integrated molding of dense micropore arrays. Micron-scale nickel screen electroforming processors continuously optimize nickel-specific electroforming formulas and pulse deposition parameters, effectively solving industrial pain points such as uneven micropore molding, easy hole blockage and poor durability, and providing reliable process support for the upgrading of precision screening equipment in various fields.

As ultra-thin precision microporous components, micron-scale nickel screens’ filtration and screening effects are directly determined by micropore accuracy, mesh flatness and hole wall verticality, which require extremely strict production environment and process control. The entire electroforming process is completed in a closed-loop constant-temperature, ultra-clean and light-shielded dust-free workshop, covering nine standardized procedures: high-precision master mold preparation, substrate ultra-clean activation, conductive film deposition, pulsed layered electroforming molding, low-temperature stress relief, non-destructive demoulding, micropore shaping and passivation, full-dimensional precision inspection, and dust-free vacuum packaging. Throughout the production process, current density, solution temperature and circulation flow rate are intelligently adjusted to precisely control the growth rhythm of nickel metal grains, avoiding processing defects such as elliptical apertures, mesh warpage, uneven thickness and incomplete micropores. With high-purity and dense nickel structure combining toughness and rigidity, micron-scale nickel screens are suitable for various working conditions including precision fluid filtration, particle screening and gas-liquid separation. Micron-scale nickel screen processing can customize screens with different micron apertures, pore arrangements and thicknesses to meet diversified precision production needs according to industrial scenario requirements. Micron-scale nickel screen electroforming processors have built a dedicated micron-level electroforming process database, solidifying production parameters of various microporous screens to ensure consistent accuracy and stable performance of mass-produced products.

High-precision master mold preparation and ultra-clean pretreatment are core pre-processes that guarantee the quality of micron-scale nickel screen processing. The micropore array accuracy of micron-scale screens is completely replicated based on the master mold structure. Before production, exclusive high-precision negative master molds are designed according to precision screening parameters, and micro-nano photolithography and precision shaping technologies are adopted to form regular and uniform micropore structures, fundamentally eliminating hole position deviation and inconsistent aperture sizes. Low-deformation and high-stability substrates are selected for master mold manufacturing. Multi-stage degreasing, ultrapure water circulating rinsing and plasma activation purification are performed to thoroughly remove surface oil stains, dust and oxide impurities, ensuring an ultra-clean and smooth mold surface and laying a solid foundation for uniform nickel ion deposition. For ultra-dense micron micropore structures, micro-size compensation design is adopted in advance to offset tiny lateral erosion deviation during electroforming and ensure micropore molding regularity. Micron-scale nickel screens achieve stable micron-level aperture precision control through high-precision master mold replication.Micron-scale nickel screen electroforming processors standardize master mold preparation, inspection and maintenance procedures to reduce the defective rate of screen molding from the source.

Conductive coating and pulsed electroforming deposition are the core molding procedures of micron-scale nickel screen processing. The pretreated master mold is coated with a uniform and dense conductive film in an ultra-clean workstation to form a stable conductive substrate, ensuring uniform adhesion and ordered growth of nickel ions and effectively avoiding process problems such as local deposition fracture, incomplete micropores and uneven mesh thickness. The master mold is placed in a sealed constant-temperature electroforming tank filled with low-stress environment-friendly electroforming solution dedicated for nickel materials, matched with a high-precision pulse current control system to realize slow, dense and ordered molding of nickel grains. The layered intermittent deposition mode continuously releases molding stress, producing screens with flat surfaces, vertically and smoothly polished micropore walls, and no grain protrusions or burr defects. Free of mechanical extrusion and high-temperature thermal damage, the molded products have no residual stress and will not deform or loosen under long-term fluid scouring and high-frequency screening. Micron-scale nickel screens are integrally formed without secondary hole polishing and can be directly applied to high-end precision screening working conditions.Micron-scale nickel screen electroforming processors continuously iterate pulse deposition technology to solve process difficulties such as uneven molding of dense micron micropores and rough hole walls.

Stress relief, non-destructive demoulding and surface modification are key procedures to improve the service performance of micron-scale nickel screen processing. After the electroforming deposition reaches the preset thickness standard, the semi-finished products are subjected to low-temperature constant-temperature stress relief treatment to completely eliminate subtle internal stress generated during nickel metal deposition, greatly improving the structural stability and deformation resistance of the screens and preventing mesh deformation and aperture deviation caused by long-term operation. A mild non-destructive demoulding process is adopted to stably separate nickel screens from the master mold, avoiding micropore stretching, mesh damage and structural distortion caused by forced demoulding. After demoulding, ultra-clean fine cleaning, micropore dredging and anti-oxidation passivation are carried out to thoroughly remove trace impurities inside micropores, optimize hole wall smoothness, reduce particle adhesion and hole blockage probability, and significantly improve the fluency and stability of filtration and screening. With multiple modification treatments, micron-scale nickel screens adapt to complex working conditions such as acid-base, humid and high-precision clean production environments. Micron-scale nickel screen electroforming processors finely control the entire post-processing process to comprehensively improve the service life and working condition adaptability of screens.

Full-dimensional precision inspection and dust-free packaging are the final quality control links of micron-scale nickel screen processing. High-precision image detectors, aperture uniformity testers and flatness testing equipment are used to comprehensively verify the aperture accuracy, hole spacing consistency, mesh flatness and micropore verticality of screens, strictly eliminating defective products with excessive precision errors, structural flaws and deformation damage. For screens dedicated to high-precision clean scenarios, special tests on micropore permeability and filtration uniformity are added to ensure stable and reliable screening effects. Qualified products undergo anti-static and moisture-proof vacuum packaging in a hundred-level dust-free workstation to isolate dust and moisture during storage and transportation and prevent micropore blockage and surface oxidation failure. With multiple quality inspections,micron-scale nickel screens fully meet high-end industrial precision filtration standards. Micron-scale nickel screen electroforming processors implement a full-process traceable quality control system to ensure stable and controllable quality of each batch of products.

Featuring precise apertures, stable structure, corrosion resistance, anti-blocking performance and long-term precision stability, micron-scale nickel screens are widely used in three core fields: biomedical filtration, precision electronic fluid purification and ultrafine powder screening. Micron-scale nickel screen processing continuously iterates electroforming technology to adapt to the high-precision, high-cleanliness and high-stability development needs of the precision screening industry. Micron-scale nickel screen electroforming processors delve into the field of micron-level nickel electroforming, continuously optimize the molding technology system, and promote the quality upgrading of the precision screening industry.

In the field of biomedical filtration, micron-scale nickel screens are used for liquid medicine purification, microbial screening and reagent precision filtration to ensure fluid cleanliness. Micron-scale nickel screen processing features uniform precision and no residual impurities, complying with medical clean production specifications. Micron-scale nickel screen electroforming processors optimize dust-free molding technology to meet the precision filtration requirements of high-end biomedicine.

In the field of precision electronic fluid purification, micron-scale nickel screens are applied to impurity filtration of ultrapure water and precision process oil products with stable screening accuracy. Micron-scale nickel screen processing delivers smooth hole walls and high permeability, which can effectively improve fluid purification efficiency. Micron-scale nickel screen electroforming processors strengthen anti-blocking and anti-oxidation processes to enhance the continuous operation capability of screens.

In the field of ultrafine powder screening, micron-scale nickel screens are used for accurate classification of ultrafine chemical and powder materials to effectively improve product purity. Micron-scale nickel screen processing has a stable structure and strong deformation resistance, adapting to long-term continuous screening operations.Micron-scale nickel screen electroforming processors optimize the stress balance process to ensure the long-term stable operation of screens under working conditions.

In conclusion, micron-scale nickel screens break through the technical bottlenecks of traditional screen processing such as low precision, poor consistency, easy hole blockage and easy deformation, and serve as core supporting components for the modern precision filtration and screening industry. Micron-scale nickel screen processing realizes stable and high-yield mass production of micron-scale nickel screens relying on low-stress, ultra-clean and high-Precision Electroforming processes. Micron-scale nickel screen electroforming processors continuously optimize core electroforming technologies, providing solid process support for the high-quality development of high-end industries including biomedicine, precision electronics and powder processing.
