SMT Electroforming Processes and Applications in Dongguan

Dongguan SMT electroforming is a precision machining technology customised for the SMT (Surface Mount Technology) industry, based on the principles of electrochemical deposition. With its nanometre-level replication accuracy and ability to form complex microstructures, it has become one of the core processes underpinning the high-quality development of Dongguan’s SMT industry. Dongguan SMT Electroforming manufacturers capitalise on the advantages of the region’s well-established electronics supply chain to continuously optimise processing techniques, enhance production efficiency and product precision, and meet the demands of multiple sectors including SMT stencils, chip packaging and electronic components. As a core sub-sector of Dongguan’s SMT electroforming industry, the manufacture of SMT electroforming moulds is widely applied in the production of various precision SMT moulds, thanks to its high precision, long service life and ease of mass production, thereby helping Dongguan establish itself as a hub for precision SMT processing in the Pearl River Delta.

The Dongguan SMT electroforming process is rigorous and standardised, meeting the SMT industry’s demands for high precision and consistency. Aligned with Dongguan’s industrial specialisations, it can be divided into five core steps. The first is master mould design and preparation, which forms the foundation for ensuring the quality of Dongguan SMT electroforming. Leveraging local clusters of 3D printing and CNC machining industries, Dongguan’s SMT electroforming manufacturers rapidly produce resin or metal master moulds according to the dimensional requirements of SMT products. Through precision polishing, the surface roughness of the master mould is reduced to Ra ≤ 0.02 μm, ensuring that subsequent electroformed layers can faithfully replicate the master mould’s details. This is also a key prerequisite for achieving high precision in Dongguan’s SMT electroforming mould processing.

The second step involves master mould pre-treatment, the core of which is to ensure the master mould’s surface is conductive and meets cleanliness standards, thereby meeting the processing requirements for SMT microstructures. Dongguan SMT electroforming manufacturers first thoroughly remove oil, oxidation layers and impurities from the master mould’s surface through solvent cleaning and alkaline degreasing. For non-metallic master moulds, they then apply electroplating or vacuum aluminium coating to make the surface conductive, thereby reducing production costs whilst improving electrical conductivity uniformity. Once pre-treatment is complete, the master mould undergoes activation to ensure uniform deposition of metal ions, laying a solid foundation for the smooth execution of Dongguan SMT electroforming and providing a high-quality substrate for SMT electroforming mould processing.

The third step is the core electroforming deposition stage, which is also the key process in Dongguan SMT electroforming and directly determines the precision and stability of SMT products. Dongguan SMT electroforming manufacturers select suitable metals such as copper or nickel as the anode, based on the requirements of the SMT product, whilst using the pre-treated master mould as the cathode. Both are immersed in a customised electrolyte solution, and the current density is controlled via a pulsed reverse power supply to ensure that metal ions are deposited uniformly, layer by layer, onto the surface of the master mould. During this stage, Dongguan SMT electroforming mould manufacturers precisely control the deposition time and electrolyte temperature to ensure uniform electroformed layer thickness, with tolerances maintained within ±2μm. This results in mould cavities with a dense structure and low internal stress, meeting the requirements for precision SMT moulds.

The fourth step is the post-processing stage, which primarily involves separating the electroformed part from the master mould and optimising its performance to meet the assembly requirements of SMT products. Dongguan SMT electroforming manufacturers utilise robotic arm vision-guided demoulding or thermal separation technology to achieve non-destructive separation of the electroformed part from the master mould, with a yield rate of over 99%. Subsequently, processes such as magnetorheological polishing and diamond spray polishing are employed to remove burrs from the surface of the electroformed parts and enhance surface finish. For certain high-end SMT products, nitriding treatment is also carried out to improve wear and corrosion resistance. Products manufactured using Dongguan SMT electroforming moulds undergo annealing to eliminate internal stresses, extend mould service life, and meet the demands of SMT mass production.

The fifth step involves quality control, which runs throughout the entire Dongguan SMT electroforming process and complies with the SMT industry’s stringent quality standards. Dongguan SMT electroforming manufacturers utilise equipment such as X-ray fluorescence thickness gauges and coordinate measuring machines to conduct in-line inspections of electroformed layer thickness, dimensional accuracy and surface quality. Non-conforming products are rigorously screened out to ensure compliance with SMT industry standards. Furthermore, leveraging Dongguan’s comprehensive environmental management system, electroplating wastewater undergoes membrane separation treatment to facilitate the recovery and reuse of heavy metals. This approach balances production efficiency with environmental compliance, serving as a crucial safeguard for the large-scale production of SMT electroplated moulds in Dongguan.

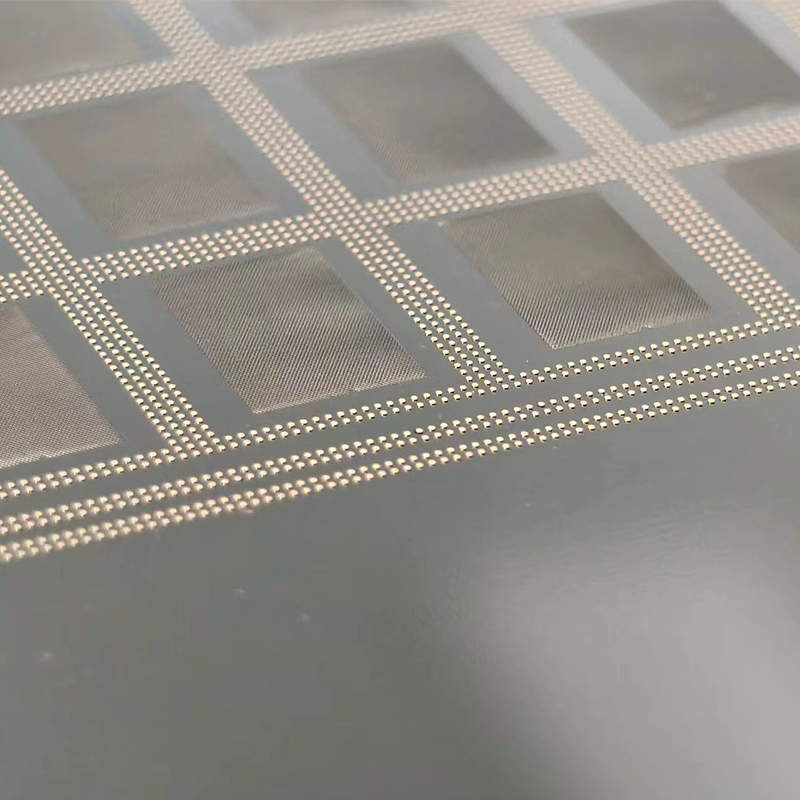

Thanks to its unique advantages, Dongguan SMT electroforming has become deeply integrated into the city’s key SMT industries, covering a wide range of sectors including SMT stencil manufacturing, chip packaging, electronic components and precision connectors. In the field of SMT stencils, Dongguan SMT electroforming is widely used for the production of ultra-fine-pitch stencils and high-precision laser-cut stencils. With its high-precision replication capabilities, it enables the accurate formation of minute apertures, thereby improving solder paste transfer efficiency; Dongguan SMT electroforming mould processing is utilised in the manufacture of SMT stencil moulds, with mould lifespans reaching 250,000 to 300,000 impressions, meeting the demands of SMT mass production and helping to improve electronic assembly efficiency.

In the chip packaging sector, Dongguan SMT electroforming is utilised for the processing of components such as chip leads and packaging substrates. Through Precision Electroforming processes, it achieves the accurate forming of minute leads, thereby improving the connection stability between chips and circuit boards. Dongguan SMT electroforming manufacturers have optimised their mould processing techniques to meet chip packaging requirements; the packaging moulds they produce can precisely replicate complex lead layouts, catering to the demands of high-end chip packaging. Furthermore, Dongguan SMT electroforming is utilised for the machining of minute channels in chip heat sinks, meeting the precise requirements for chip thermal management.

In the field of electronic components, Dongguan SMT electroforming serves as a core process for the manufacture of products such as micro-connectors and sensor pins, achieving nanometre-level surface precision to ensure contact stability; Dongguan SMT electroforming mould processing is utilised in the manufacture of electronic component moulds, capable of precisely replicating structures such as minute contacts and pins. It meets high-precision requirements without the need for subsequent polishing and is widely applied in the SMT assembly of electronic products such as mobile phones and computers. Dongguan SMT electroforming manufacturers, leveraging mature technologies, are driving the SMT electronic components industry towards greater precision and miniaturisation.

In the precision connector sector, Dongguan SMT electroforming is utilised for the processing of connector terminals, contact plates and similar products; its burr-free, high-precision characteristics guarantee the contact performance of connectors. Meanwhile, Dongguan SMT electroforming mould processing is employed in the manufacture of connector moulds, precisely controlling cavity dimensions to ensure connector compatibility and meet the demands of automated SMT assembly. Furthermore, Dongguan SMT electroforming is also applied to the processing of SMT jigs, tooling and fixtures, covering the entire SMT production process and demonstrating the industrial strength of Dongguan’s precision SMT processing.

Dongguan SMT electroforming manufacturers remain market-driven, leveraging the advantages of Dongguan’s comprehensive SMT industrial chain to continuously overcome technical bottlenecks in electroforming, optimise processing workflows, and enhance product quality and production efficiency. In the future, as Dongguan’s SMT industry transitions towards high-end and intelligent manufacturing, Dongguan’s SMT electroforming processing will achieve breakthroughs in more emerging fields. SMT electroforming mould processing in Dongguan will also undergo continuous upgrades, further integrating into industrial chains such as SMT stencils and chip packaging, thereby injecting new vitality into the high-quality development of Dongguan’s SMT industry.
