Processing Flow and Application Fields of Electroformed Screen Mesh

Electroformed screen mesh processing is a high-precision metal processing technology based on the principle of electrochemical deposition. It focuses on manufacturing products with uniform aperture sizes, dense mesh, and excellent toughness. With ultra-high forming precision and good corrosion resistance, it is widely used in various high-end manufacturing and filtration fields. Electroformed screen mesh processing plants leverage mature process control capabilities to precisely manage each processing step, while electroformed screen mesh manufacturers continuously optimize processing efficiency and product quality through technological innovation and equipment upgrades, providing customized electroformed screen mesh processing services and promoting technological advancement in the industry.

The processing flow of electroformed screen mesh is rigorous and standardized, with every link directly determining the aperture accuracy, mesh distribution, and overall lifespan of the screen mesh. This reflects the core competitiveness of electroformed screen mesh processing plants and manufacturers. The first step is core mold preparation, which is the foundational process of electroformed screen mesh processing. High-precision metals, quartz, and other materials are selected based on the specifications of the screen mesh to create a core mold with a mesh pattern, ensuring that the aperture size and spacing errors are controlled at the micron level, laying a solid foundation for subsequent electroforming.

Once the core mold is prepared, it enters the conductive treatment phase, which is a key step in electroformed screen mesh processing. For non-metallic core molds, a uniform conductive film must be formed on their surfaces and the inner walls of the mesh grooves through specialized methods such as chemical deposition or vacuum sputtering, ensuring the conductive layer is intact and without defects, thus ensuring the complete formation of the mesh structure. For metallic core molds, passivation treatment is performed to create a dense passivation film, facilitating subsequent demolding without damaging the electroformed screen layer. Electroformed screen mesh processing plants strictly control the thickness and uniformity of the conductive layer, while manufacturers optimize processing techniques to ensure smooth progression of electroformed screen mesh processing.

Next is the electroforming deposition phase, which is the core procedure of electroformed screen mesh processing. The treated core mold serves as the cathode, while high-purity nickel, copper, and other wear-resistant, corrosion-resistant electroforming metals are used as the anode. Both are placed in a custom-configured electroforming solution, connected to a stable DC power source. Under the influence of the electric field, the metal ions from the anode dissolve into the electroforming solution and gradually migrate to the surface of the cathode core mold and the inner grooves of the mesh, layer by layer depositing to form an electroformed screen mesh layer that perfectly matches the core mold's mesh pattern, which is the prototype of the screen mesh. Electroformed screen mesh processing plants precisely regulate current density, electroforming temperature, and deposition time, while manufacturers optimize the electroforming solution formula to ensure the aperture accuracy, uniformity, and toughness of the screen mesh.

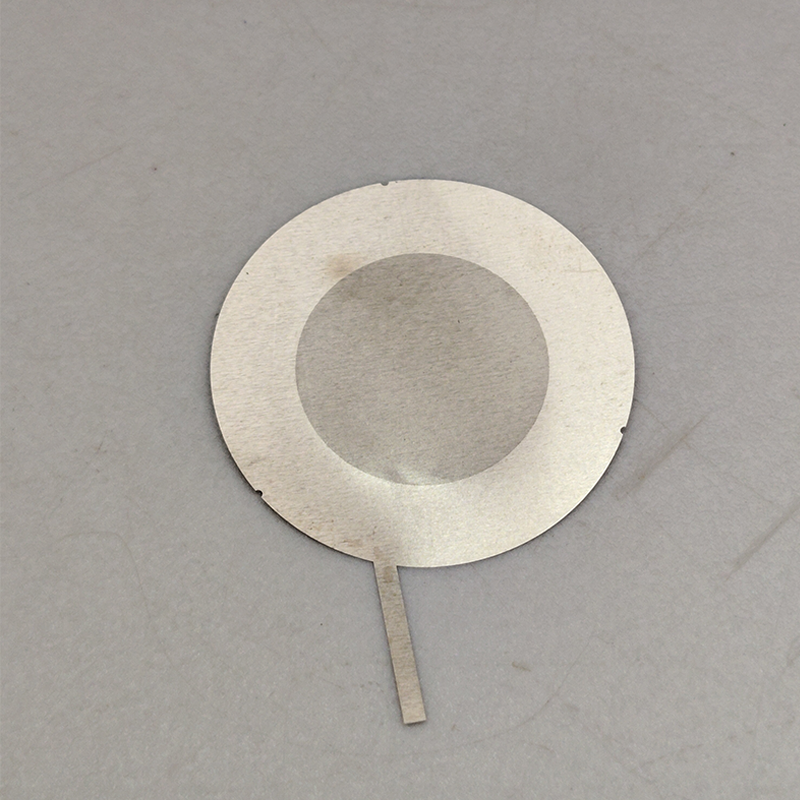

After the electroforming deposition is complete, the demolding and post-processing phase begins, which is the final step of electroformed screen mesh processing. Depending on the material of the core mold, gentle methods such as chemical dissolution and mechanical separation are used to detach the electroformed screen layer from the core mold, resulting in an initial electroformed screen mesh product. Subsequently, through precision cleaning, grinding, polishing, and accuracy testing, surface defects and burrs are removed, and the mesh dimensions and distribution are calibrated to enhance the corrosion resistance and mechanical properties of the screen mesh. Manufacturers establish strict inspection standards, while processing plants oversee all stages to ensure that every electroformed screen mesh product meets quality standards.

With its ultra-high aperture precision, uniform aperture distribution, and excellent material properties, electroformed screen mesh processing continues to expand its application fields. Processing plants and manufacturers provide customized services based on the needs of various industries. In the precision filtration field, electroformed screen mesh processing can manufacture high-precision filtering screen products, accurately matching the stringent requirements for liquid and gas filtration. Manufacturers achieve batch consistency in production through technological upgrades, widely applying this technology in the chemical and environmental protection industries.

In the electronics field, electroformed screen mesh processing can produce shielding screens and heat dissipation screens for electronic devices. Its fine mesh and good conductivity effectively enhance the shielding effect and heat dissipation performance of electronic devices. Manufacturers optimize the processing flow based on the miniaturization demands of electronic devices, while processing plants are equipped with specialized equipment to ensure precise dimensions and uniform thickness of screen mesh, meeting industry standards.

In the medical field, electroformed screen mesh processing can manufacture filtering screens and implantable screens for medical devices. Its biocompatibility and corrosion resistance meet the stringent requirements of the medical industry, while the high precision of electroformed screen mesh ensures the safety and stability of medical screens. Additionally, electroformed screen mesh processing is widely applied in aerospace, new energy, food processing, and other fields, providing support for technological upgrades across various industries.

With the rapid development of the high-end manufacturing industry, market demands for precision and efficiency in electroformed screen mesh processing continue to rise. Processing plants and manufacturers are continuously innovating. By introducing intelligent processing equipment, optimizing the processing flow, and developing new electroforming materials, they are enhancing the technical level of electroformed screen mesh processing, driving the industry toward higher quality and efficiency, and providing strong support for advancements in the high-end manufacturing sector.
