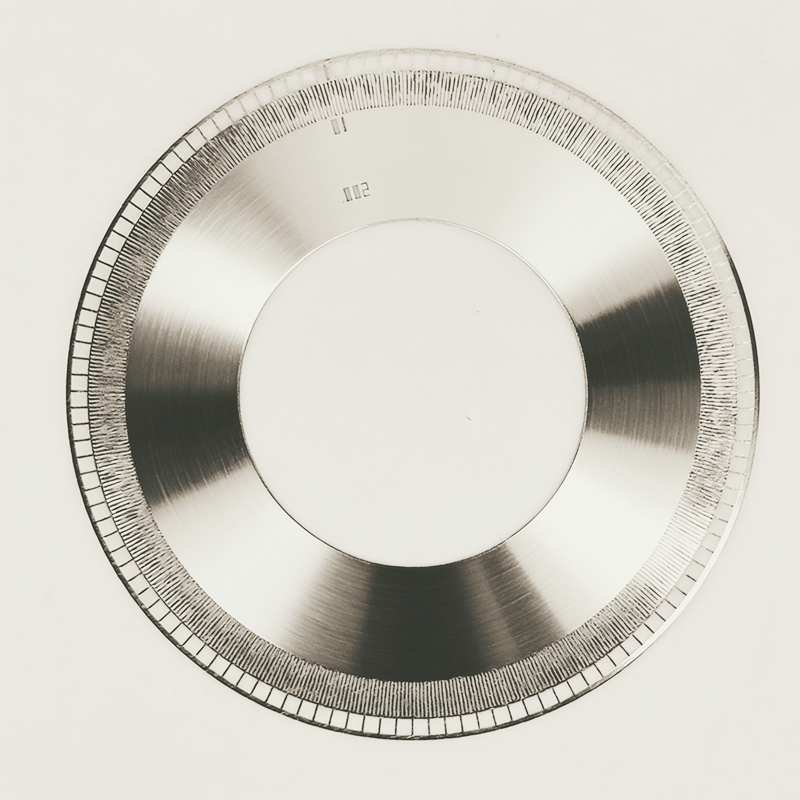

Manufacturing Process and Applications of Electroformed Encoder Discs

Electrochemical engraving of encoder discs is a high-precision machining technology based on the principle of electrochemical deposition. It specializes in the manufacture of encoder discs—the core components of encoders. Thanks to its exceptional engraving precision, excellent stability, and high wear resistance, this technology is widely used in high-end fields such as automation and instrumentation. Electroformed encoder scale manufacturers leverage mature process control capabilities to precisely manage every stage of the manufacturing process. Through technological innovation and equipment upgrades, these manufacturers continuously optimize processing efficiency and product quality, providing customized electroformed encoder scale manufacturing services to various industries and driving technological advancement within the sector.

The electroformed encoder disk manufacturing process is rigorous and standardized. Every step directly determines the disk’s engraving precision, signal stability, and service life, and also reflects the core competitiveness of electroformed encoder disk manufacturers. The first step is core mold preparation, which serves as the foundational process for electroformed encoder disk manufacturing. Based on the disk’s specifications, high-precision materials such as metal and quartz are selected to create a core mold with a precise etched pattern. This ensures that the spacing and width of the etched lines are controlled to the micrometer level, laying a solid foundation for subsequent electroforming.

Once the core mold is prepared, the process moves to the conductive treatment stage, which is a critical step in the manufacturing of electroformed encoder discs. For non-metallic core molds, specialized methods such as chemical deposition and vacuum sputtering are used to form a uniform conductive film on the surface and the inner walls of the engraved grooves, ensuring that the conductive layer is free of damage and plating defects, thereby guaranteeing the complete formation of the engraved structure; For metal core molds, a passivation treatment is performed to form a dense passivation film, which facilitates subsequent demolding without damaging the electroformed disc layer. Electroformed encoder disc manufacturers strictly control the thickness and uniformity of the conductive layer and optimize the processing techniques to ensure the smooth progression of the manufacturing process.

Next comes the electroforming process, which is the core step in the manufacturing of electroformed encoder discs. The prepared core mold serves as the cathode, while wear- and corrosion-resistant electroforming metals—such as high-purity nickel and copper—are used as the anode. Both are placed in a custom-formulated electroforming solution, and a stable direct current is applied. Under the influence of the electric field, metal ions from the anode dissolve into the electroforming solution and gradually migrate to the surface of the cathode core mold and into the engraved grooves, depositing layer by layer to form an electroformed disc layer that perfectly matches the engraved pattern of the core mold—the prototype of the encoder disc. Electroforming encoder disc manufacturers precisely control the current density, electroforming temperature, and deposition time, while optimizing the electroforming solution formulation to ensure the engraving precision, surface finish, and structural stability of the electroformed encoder discs.

Once electroforming deposition is complete, the process moves to the demolding and post-processing stages, which constitute the final steps in the manufacturing of electroformed encoder discs. Depending on the material of the core mold, gentle methods such as chemical dissolution or mechanical separation are used to separate the electroformed disc layer from the core mold, yielding a preliminary electroformed encoder disc product. Subsequently, post-processing techniques such as precision cleaning, grinding, polishing, and dimensional inspection are performed to remove surface defects and burrs, calibrate the dimensions and spacing of the engraved lines, and enhance the encoder disk’s corrosion resistance and mechanical properties. Electroformed encoder disk manufacturers establish strict inspection standards, and production facilities maintain full control over every stage of the process to ensure that every finished product meets quality requirements.

Thanks to their ultra-high engraving precision, excellent signal stability, and superior material properties, electroformed encoder disk applications continue to expand. Electroformed encoder disk manufacturers and processing plants provide customized services tailored to the specific needs of various industries. In the field of industrial automation, electroformed encoder discs can be manufactured with high precision. Electroformed encoder disc processing plants can precisely meet the positioning and speed measurement requirements of automated equipment, while manufacturers achieve consistent batch production through technological upgrades, making these products widely used in machine tools, robots, and other equipment.

In the instrumentation sector, electroformed encoder disc manufacturing produces core disc components for precision instruments. Their precise etched lines ensure measurement accuracy and signal stability. Manufacturers optimize production processes to meet the miniaturization demands of instruments, while factories are equipped with specialized equipment to ensure precise disc dimensions and clear etched lines, meeting the stringent standards of the instrumentation industry.

In the new energy sector, electroformed encoder disc manufacturing produces encoder discs for new energy equipment. Their resistance to high and low temperatures, along with their anti-interference properties, ensure stable operation of the equipment in complex environments. Additionally, electroformed encoder disc manufacturing is widely used in aerospace, automotive electronics, and medical devices, providing support for technological upgrades across various industries.

With the rapid development of the high-end manufacturing industry, market demands for precision and efficiency in electroformed encoder disc processing continue to rise, driving continuous innovation among manufacturers and processing facilities. By introducing intelligent processing equipment, optimizing electroformed encoder disc manufacturing processes, and developing new electroforming materials, the technical standards of electroformed encoder disc manufacturing are constantly being elevated. This drives the industry toward higher quality and greater efficiency, providing a strong foundation for the advancement of the high-end manufacturing sector.Next comes the electroforming deposition stage, which is the core process in the manufacturing of electroformed encoder discs. The prepared core mold serves as the cathode, while wear- and corrosion-resistant electroforming metals—such as high-purity nickel and copper—are used as the anode. Both are placed in a custom-formulated electroforming solution, and a stable direct current is applied.
