Processing Procedures and Applications of Electroformed Nickel Mesh

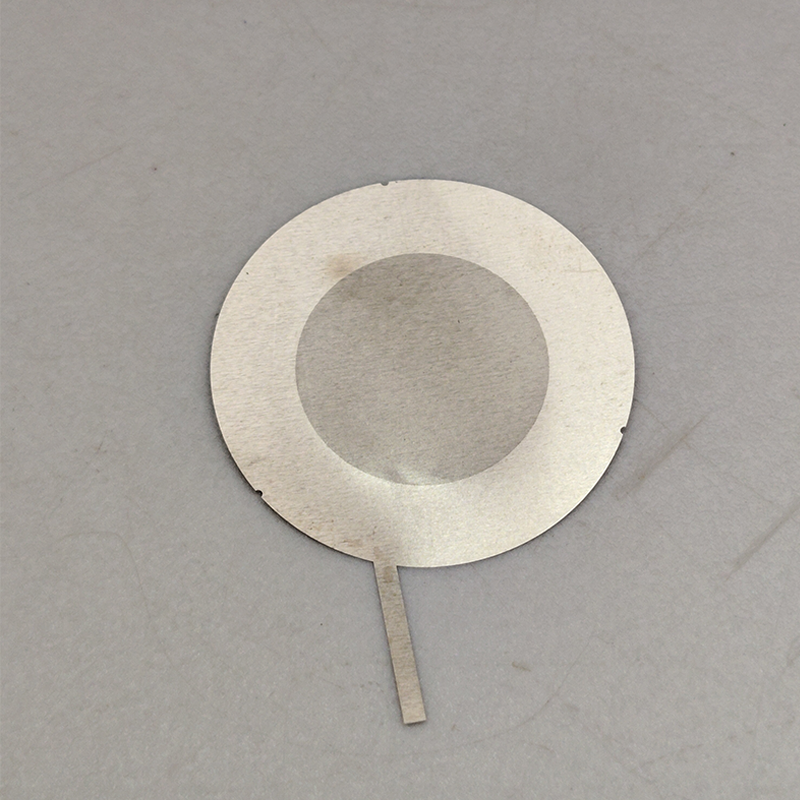

Electroformed nickel mesh fabrication is a high-precision metalworking technology based on the principle of electrochemical deposition. It specializes in producing nickel mesh products with uniform pore sizes, fine mesh, and excellent toughness. Thanks to nickel’s corrosion resistance, wear resistance, and high toughness, these products are widely used in various high-end manufacturing sectors. As an extension of the core process of electroformed nickel mesh manufacturing, the processing of electroformed nickel mesh emphasizes the precise shaping of the mesh structure. Manufacturers of electroformed nickel mesh, leveraging mature process systems and specialized equipment, provide customized processing services to various industries, driving technological upgrades and product innovation within the sector.

The manufacturing process for electroformed nickel mesh is rigorous and standardized. Precise control at every stage directly determines the mesh’s aperture accuracy, aperture distribution, and overall performance, and also reflects the core competitiveness of manufacturers of electroformed nickel mesh. The first step is core mold preparation, which serves as the foundational process for electroformed nickel mesh production. Based on the mesh specifications, high-precision metal or quartz materials are selected to create a core mold featuring the mesh pattern. This ensures that the dimensional and spacing tolerances of the apertures are controlled to the micrometer level, laying a solid foundation for subsequent electroforming and mesh forming processes.

Once the core mold is prepared, the process moves on to the conductive treatment stage, which is a critical step in the fabrication of electroformed nickel mesh and directly affects the final forming quality of the product. For non-metallic core molds, specialized methods such as chemical deposition and vacuum sputtering are used to form a uniform conductive film on the surface and the inner walls of the mesh openings, ensuring that the conductive layer is free of damage and plating defects, thereby guaranteeing the integrity of the mesh structure. For metal core molds, a passivation treatment is performed to form a dense passivation film, which facilitates subsequent demolding without damaging the electroformed nickel mesh layer. Manufacturers of electroformed nickel mesh strictly control the thickness and uniformity of the conductive layer and optimize the processing techniques to ensure the smooth progression of the manufacturing process.

Next comes the electroforming deposition stage, which is the core process of electroformed nickel mesh manufacturing and the most critical step in the production of electroformed nickel mesh. The prepared core mold is used as the cathode, and high-purity nickel plates are selected as the anodes. Both are placed in a custom-formulated nickel salt electroforming solution, and a stable direct current is applied. Under the influence of the electric field, the nickel plate at the anode dissolves into nickel ions, which gradually migrate to the surface of the cathode core mold and into the grooves of the mesh openings. Layer by layer, these ions deposit to form an electroformed nickel mesh layer that perfectly matches the pattern of the core mold’s mesh openings—essentially the prototype of the electroformed nickel mesh sheet. Electroformed nickel mesh manufacturers precisely control current density, electroforming temperature, and deposition time, while optimizing the electroforming solution formulation to ensure the aperture accuracy, mesh uniformity, and structural toughness of the electroformed nickel mesh, thereby enhancing the overall quality of the finished product.

Once the electroforming process is complete, the process moves on to demolding and post-processing, which are the final steps in the fabrication of electroformed nickel mesh sheets. Depending on the material of the core mold, gentle methods such as chemical dissolution or mechanical separation are used to separate the electroformed nickel mesh layer from the core mold, yielding the preliminary electroformed nickel mesh product. Subsequently, post-processing procedures—including precision cleaning, grinding, polishing, and dimensional inspection—are performed to remove surface defects and burrs, calibrate the mesh aperture size and distribution, and enhance the mesh’s corrosion resistance and mechanical properties. Electroformed nickel mesh manufacturers establish strict inspection standards and maintain full control over every stage of the manufacturing process to ensure that every product meets quality standards, while simultaneously optimizing the subsequent processing procedures for electroformed nickel mesh.

Thanks to their exceptional mesh accuracy, uniform pore size distribution, and excellent material properties, the applications of electroformed nickel mesh are constantly expanding. Manufacturers of electroformed nickel mesh are optimizing their production processes to meet the specific needs of various industries and provide customized services. In the filtration sector, electroformed nickel mesh can be manufactured into high-precision filtration screens. The precise forming capabilities of electroformed nickel mesh meet the stringent requirements of precision filtration. Through technological upgrades, manufacturers have achieved consistent batch production of electroformed nickel mesh products, which are widely used in liquid and gas filtration applications.

In the electronics industry, electroformed nickel mesh processing is used to manufacture components such as shielding mesh and heat dissipation mesh for electronic devices. The fine mesh structure and excellent electrical conductivity of electroformed nickel mesh effectively enhance the shielding performance and heat dissipation capabilities of electronic devices. Manufacturers of electroformed nickel mesh optimize their production processes to meet the miniaturization demands of electronic devices, ensuring precise dimensions and uniform thickness to comply with industry standards.

In the medical field, electroformed nickel mesh can be used to manufacture filtration screens for medical devices and implantable nickel mesh, among other applications. Its biocompatibility and corrosion resistance meet the stringent requirements of the medical industry, while the high precision of electroformed nickel mesh ensures the safety and stability of medical mesh products. Furthermore, electroformed nickel mesh processing is widely used in aerospace, new energy, and optical fields, supporting technological upgrades across various industries. Manufacturers of electroformed nickel mesh are also continuously expanding the application scenarios for this technology.

With the rapid development of the high-end manufacturing industry, market demands for precision and efficiency in electroformed nickel mesh processing are constantly increasing, driving manufacturers to pursue continuous innovation. By introducing intelligent processing equipment, optimizing electroformed nickel mesh production processes, and developing new electroforming solutions, manufacturers are continuously enhancing technical capabilities, refining production techniques, and driving the industry toward higher quality and greater efficiency. These efforts provide a strong foundation for the advancement of the high-end manufacturing sector.
