Mini LED Stencil Electroforming | Precision Mass Transfer

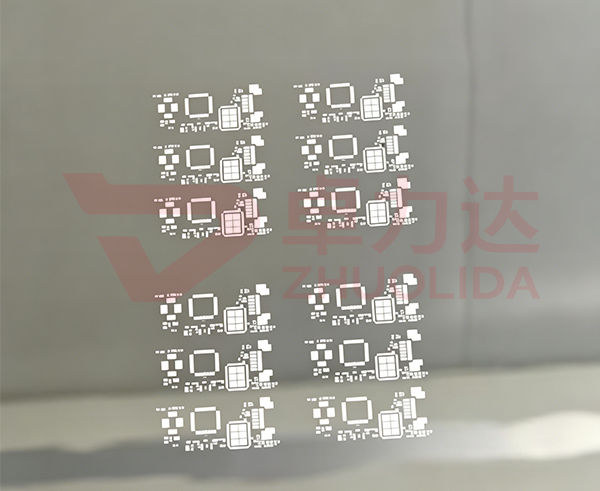

Mini LED printing stencil electroforming is a precision additive process that manufactures the nickel-cobalt stencils used in Mini LED backlight and direct-display mass transfer. These stencils define the tiny apertures through which solder paste, conductive adhesive, or phosphor is deposited onto the PCB or substrate at high density. As Mini LED pixel pitches shrink below millimetre scale and die counts rise into the tens of thousands per panel, conventional etched or laser-cut stencils struggle with aperture consistency and paste release. Electroforming builds the stencil layer by layer on a lithographic master, producing vertical, burr-free micro-apertures with near-zero side etch, which keeps print transfer consistent and reduces bridging across dense Mini LED arrays.

Parameter Window

• Material: Low-stress nickel-cobalt alloy

• Thickness Range: 0.05–0.20 mm

• Aperture Tolerance: ±1–2 µm

• Aperture Wall Roughness: Ra ≤ 0.6 µm

• Tension Stability: 38–45 N/cm

• Minimum Aperture: down to 50–100 µm class

Manufacturing Process / Workflow (8 Steps)

1. LDI Mastermaking — Lithographic master defines Mini LED aperture layout.

2. Master Pre-treatment — Clean and activate the conductive mandrel.

3. Pulse Electroforming (Core Step) — Deposit low-stress nickel-cobalt.

4. Stress Annealing — Relieve internal stress to prevent warpage.

5. Tension Setting — Mount and tension the frame.

6. Mirror Polishing — Polish aperture walls for clean paste release.

7. Cleaning & Passivation — Ultra-clean process.

8. Micron Inspection — Verify aperture size, position, flatness.

Core Advantages

1. Vertical Aperture Walls — Clean paste release, reduced bridging on fine pitch.

2. Mirror-Smooth Finish — Consistent solder paste transfer.

3. Ultra-Fine Pitch Support — Suited to Mini LED high-density arrays.

4. Low Internal Stress — Annealed nickel-cobalt resists warpage.

5. Tension Stability — Consistent across long print runs.

6. Wear Resistance — Durable for mass panel production.

Typical Applications

• Mini LED Backlight — Local-dimming TV and monitor backplanes.

• Mini LED Direct Display — Small-pitch LED display modules.

• Phosphor Dispensing — Quantum dot and color conversion printing.

• Solder Paste Printing — LED die attach flux and paste.

• Smart Display Panels — Notebook and automotive display backlights.

• LED Packaging — Chip-on-board mass transfer.

Design Notes & Process Considerations

1. Compensate aperture layout for substrate pad position and print alignment.

2. Balance stencil thickness against paste volume and release.

3. Low-stress anneal is mandatory for large panel stencils.

4. Mirror polish aperture walls to prevent residue and bridging.

5. Validate tension and flatness before production ramp.

6. Match aperture geometry to paste viscosity and LED size.
